APPENDIX B • CONNECTOR PINOUTS
83
Appendix B:
Connector Pinouts

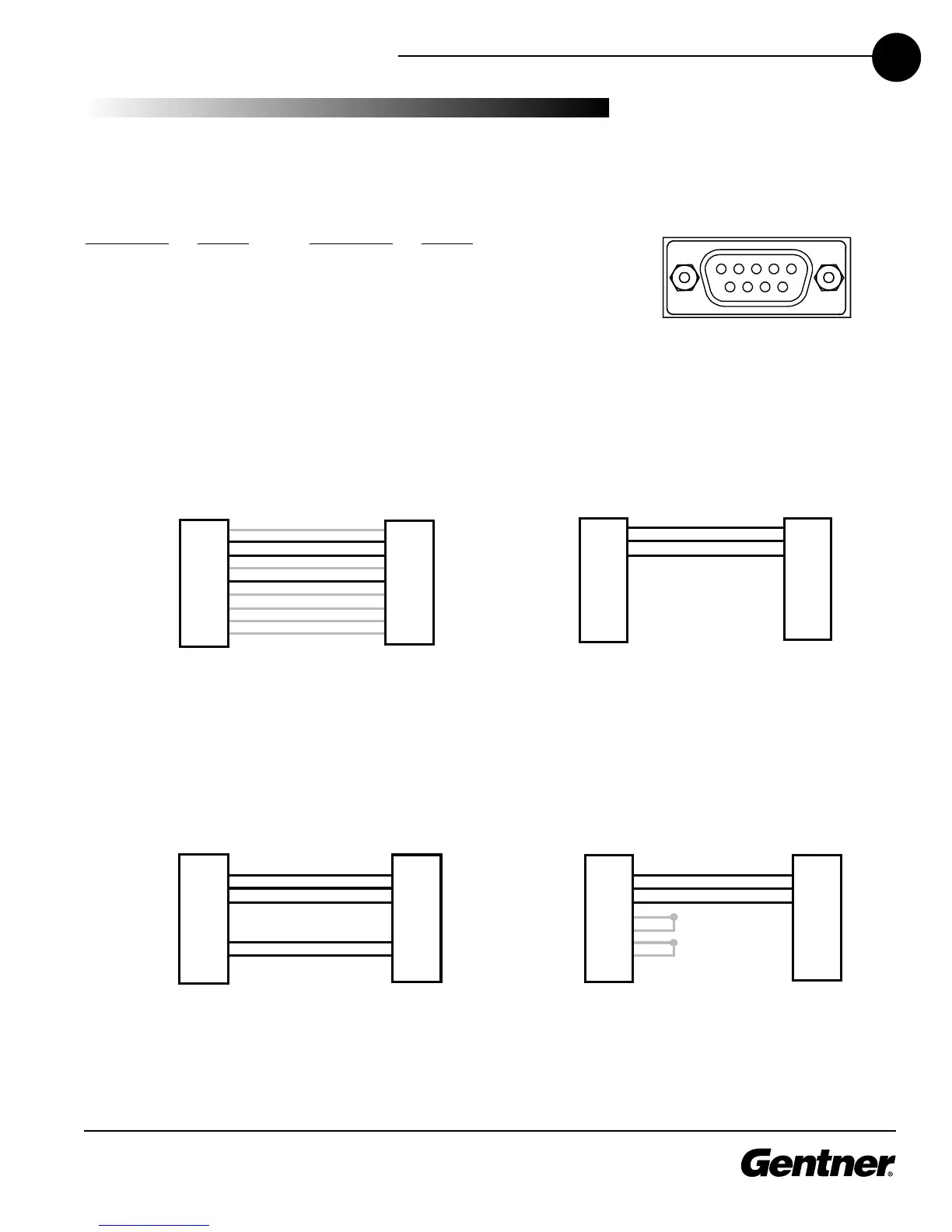

Table 1: RS-232 COM DCE Port Pinout (female)
Pin Number
Control Pin Number Control
1 DCD 6 DSR
2 TXD 7 CTS
3 RXD 8 RTS
4 DTR 9 No connection
5 Ground
1
5
6
9
RS-232 Connector
PC
XAP 800
DB-9 Pinout for XAP 800-PC Connection Example
DB-9
Male
DB-9
Female
TXD (Pin 2)
RXD (Pin 3)
DTR (Pin 4)
GND (Pin 5)
CTS (Pin 7)
RTS (Pin 8)
TXD (Pin 2)
RXD (Pin 3)
GND (Pin 5)
CTS (Pin 7)
RTS (Pin 8)
Gray connections are optional.
Pin 6
Pin 9
Pin 4
Pin 1
Pin 9
Pin 6
Pin 1
XAP 800
Modem
Pin 3
Pin 2
Pin 3
Pin 7
DB-25/DB-9 Pinout for XAP 800-Modem Connection
DB-9
Male
DB-25
Female
Pin 5
Pin 2
Panja
XAP 800
TXD (Pin 2)
RXD (Pin 3)
GND (Pin 5)
RX2 (White)
TX2 (Red)
GND (Black)
DB-9 Pinout for XAP 800-Panja Connection Example
DB-9
Female
Phoenix
Connectors
CTS (Pin 7)
RTS (Pin 8)
RTS2 (Green)
CTS2 (Blue)
Panja
Modem
DB-25/DB-9 Pinout for Panja-Modem Connection
DB-25
Female
DB-9
Male
TXD (Pin 2)
RXD (Pin 3)
GND (Pin 5)
CTS (Pin 7)
RTS (Pin 8)
DTR (Pin 4)
(You may or may not need
to make these connections,
depending on modem.)
TXD (Pin 2)
RXD (Pin 3)
RTS (Pin 7)
GND (Pin 6)
RTS (Pin 20)
CTS (Pin 4)
GND (Pin 5)
XAP 800 to PC RS-232 Connections
XAP 800 to Modem RS-232 Connections
Modem to Panja RS-232 Connections
XAP 800 to Panja RS-232 Connections
