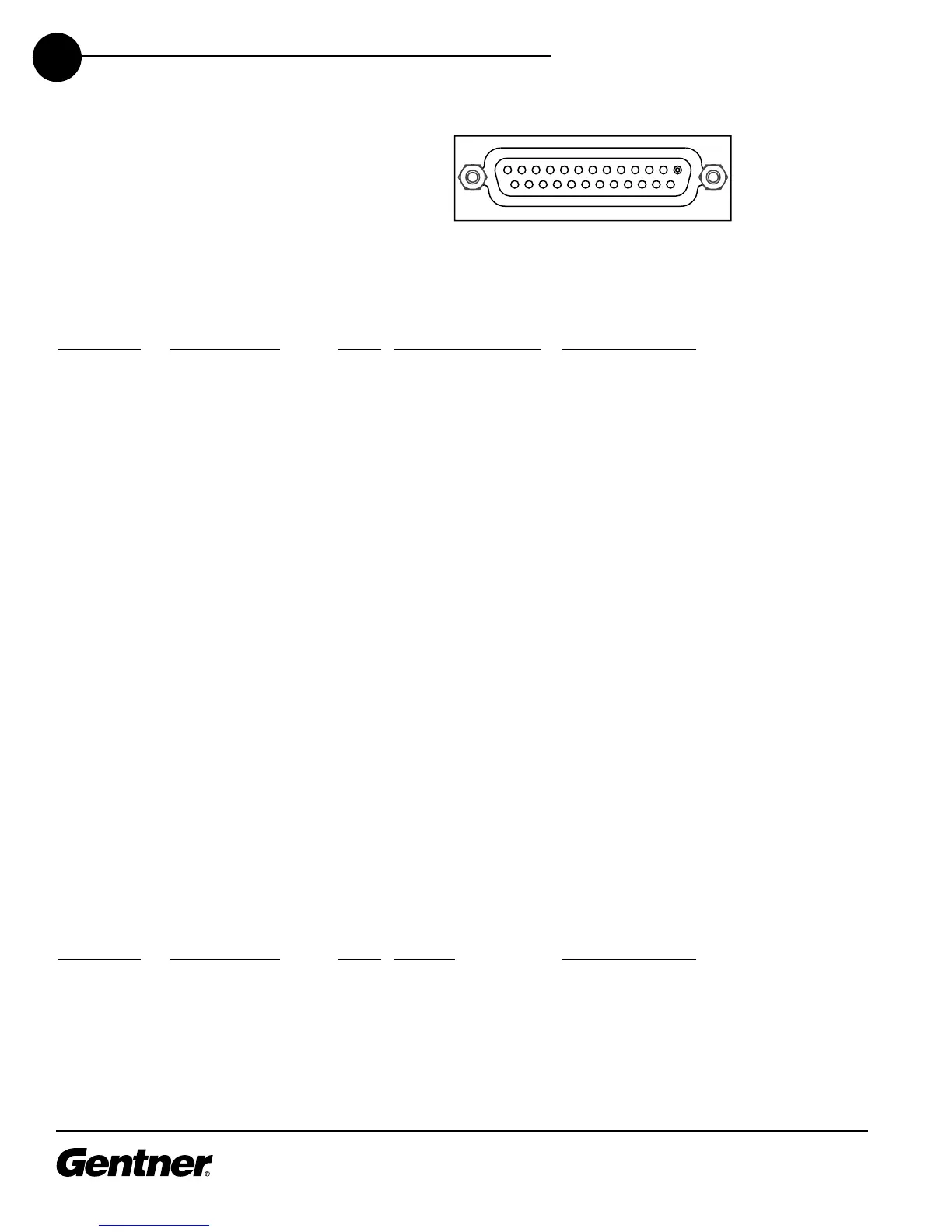

Table 2: Control/Status A Port Pinout (female)
Pin Number
User Definable* Status Momentary/Latching
Default Description
1 Yes C M Lock front panel toggle
2 Yes S Status of front panel lock
3 Yes C M Mute all mics toggle
4 Yes S Status of mute all mics
5 Yes C M Mute Output 9 toggle
6 Yes S Status of Output 9 mute
7 Yes C M Mute Output 10 toggle
8 Yes S Status of Output 10 mute
9 Yes C M Mute Output 11 toggle
10 Yes S Status of Output 11 mute
11 Yes C M Mute Output 12 toggle
12 Yes S Status of Output 12 mute
13 Yes C M Volume Up D Output 1 (1dB)
14 Yes S Not programmed
15 Yes C M Volume Down D Output 1 (1dB)
16 Yes S Not programmed
17 No S Mic #1 Gate Status
18 No S Mic #2 Gate Status
19 No S Mic #3 Gate Status
20 No S Mic #4 Gate Status
21 No S Mic #5 Gate Status
22 No S Mic #6 Gate Status
23 No S Mic #7 Gate Status
24 No S Mic #8 Gate Status
25 No Ground Ground
Table 3: Control/Status B Port Pinout
Pin Number
User Definable* Status Latching Default Description
1 No C L Preset select bit
2 No S L Preset select status for Pin 1
3 No C L Preset select bit
4 No S L Preset select status for Pin 3
5 No C L Preset select bit
6 No S L Preset select status for Pin 5
