APPENDIX B • CONNECTOR PINOUTS
85
Pin Number User Definable*
Status Momentary/Latching Default Description
7 No C L Preset select bit
8 No S L Preset select status for Pin 7
9 No C L Preset select bit
10 No S L Preset select status for Pin 9
11 No C L Preset select bit
12 No S L Preset select status for Pin 11
13 No C L Preset select bit
14 No S L Preset select status for Pin 13
15 No C L Preset select bit
16 No S L Preset select status for Pin 15
17 No C L Preset select bit
18 No S L Preset select status for Pin 17
19 No C L Preset select bit
20 No S L Preset select status for Pin 19
21 No connection
22 No connection
23 No - +5VDC 100mA
24 No - +5VDC 100mA
25 No - Ground
*Control/Status Pinout Note:
The first 16 pins on the Control/Status Port A are programmable via the G-Ware software.
Table 4: RS-485 Remote Control Port Pinout (for Remote Panel A and B connectors)
Pin Number
Control
1 +15VDC 300 mA (over-current protected)
2 Data+
3 Data-
4 Ground

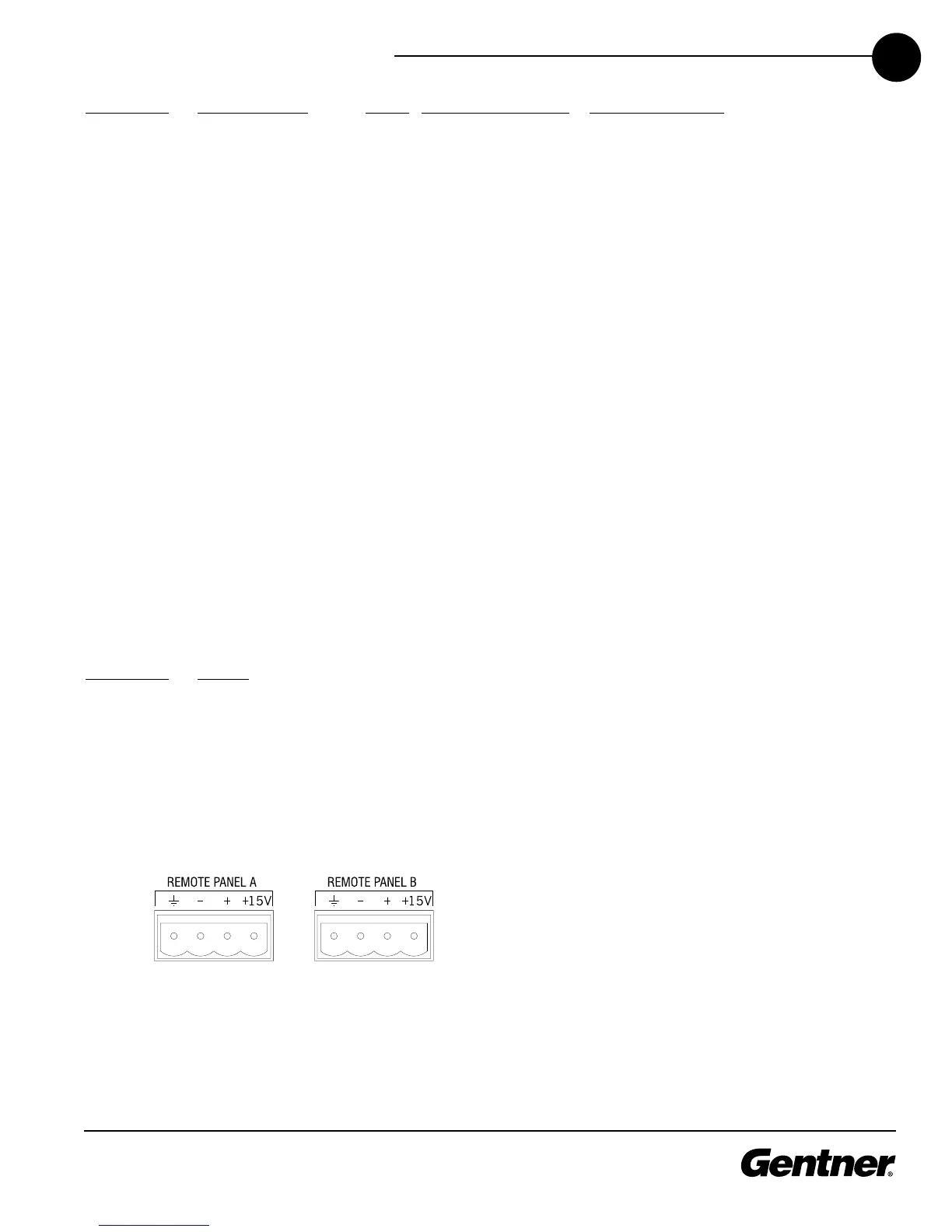

RS-485 Remote Control Ports
4 3 2 1 4 3 2 1
