GeoVision GV-IP Decoder Box User Manual

24
4. To connect directly with GV-IP Decoder Box, change the port to 10000.
Note: If you are using GV-Mobile Server firmware before V1.2 and connect through GV IP
Device Utility, modify the command port to 39000.
5. Select Custom and type the ID and password of the GV-Mobile Server. To connect
directly with GV-IP Decoder Box, the ID and password must match the CAM Login ID and
password set on the GV-IP Decoder Box (Figure 2-9).
6. Configure each connected channel.

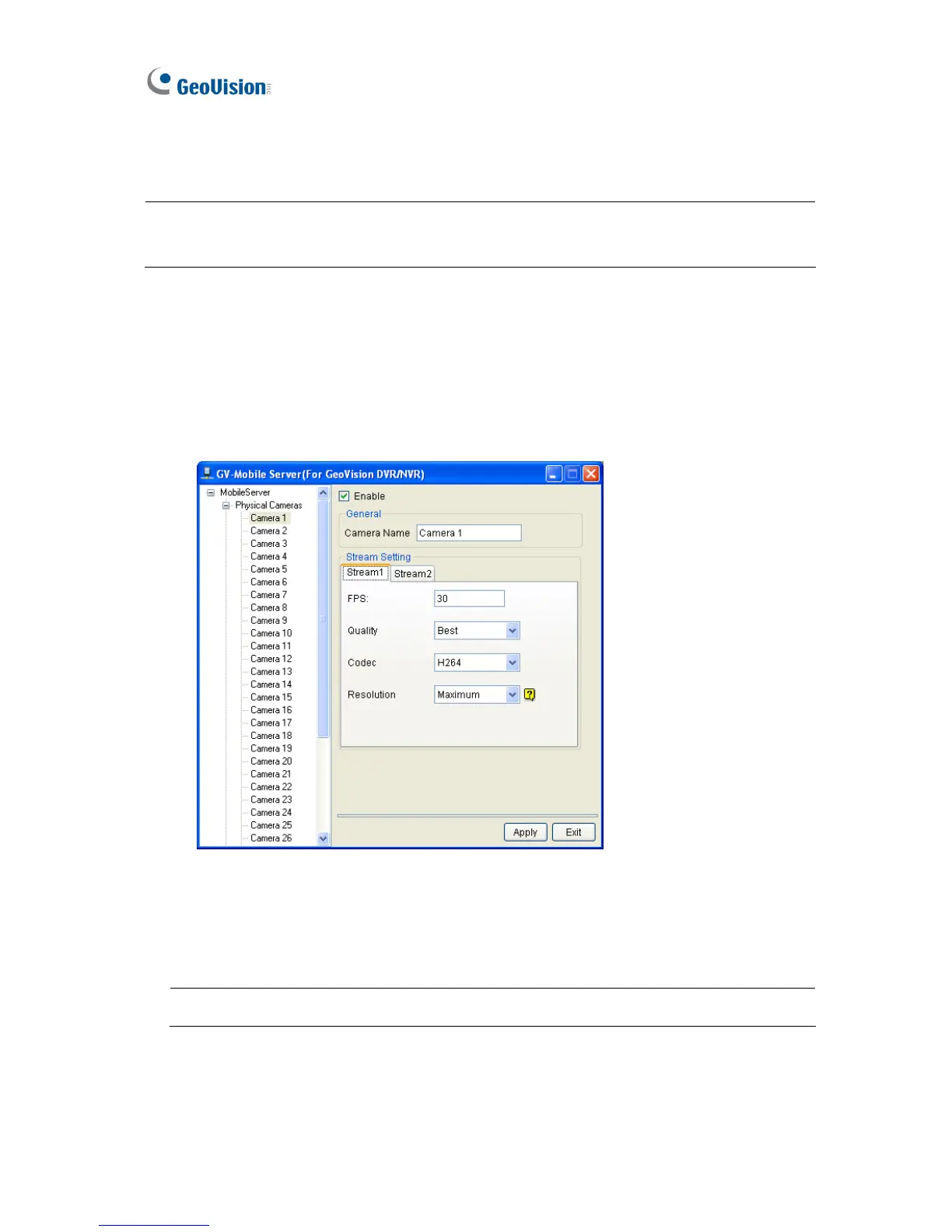

A. Click a camera number on the device tree. This window appears.
Figure 2-22
B. Type the frame rate in the FPS field and select a Quality and Resolution using the
drop-down lists. The maximum resolution supported for streaming is 704 x 480.
C. Select H.264 for Codec.
Note: The GV-IP Decoder Box supports Stream 1 and H.264 codec only.
D. Repeat steps A to C to configure another channel.

GeoVision GV-IP Decoder Box Specifications

General

Brand	GeoVision
Model	GV-IP Decoder Box
Category	Network Hardware
Language	English
