5. For IK10+ models (GV-VD120D / 121D / 220D / 221D / 320D /
321D / 1500 / 2400 / 2500 / 3400 / 1530 / 2430 / 2530 / 3430), hold
the supplied Focus Adjustment Cap over the camera view. For
details, see 2.2.1 Using Focus Adjustment Cap for details.
6. For Target Mini Fixed Dome and Target Mini Fixed Rugged
Dome, hold the camera cover close to the lens and use the
supplied focus adjustment tool for precise focus adjustment.

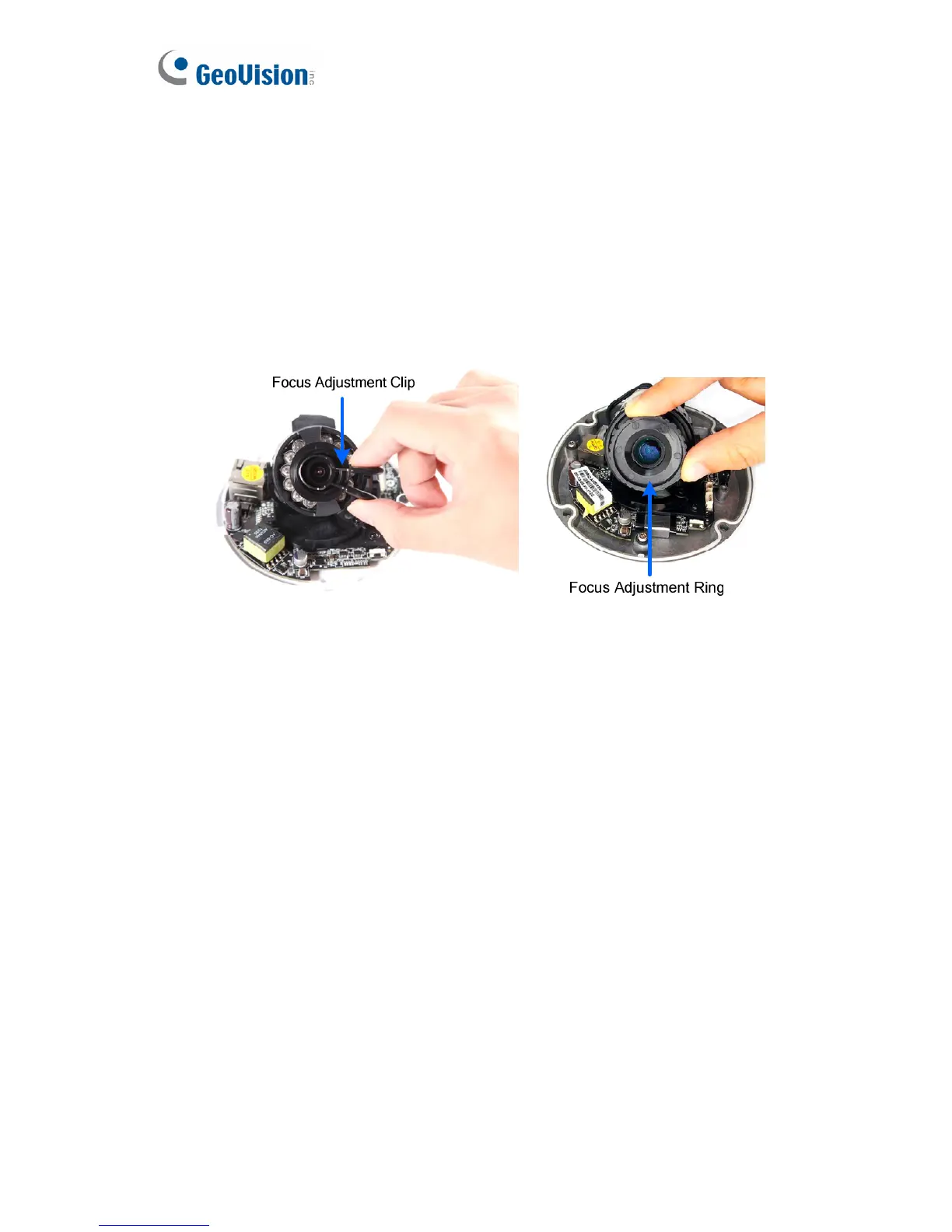

Figure 2-10
7. For Mini Fixed Dome and Mini Fixed Rugged Dome, hold the
camera cover close to the lens for precise focus adjustment. For
locations of adjustment screws and rings in each model, see 2.2.2
Locations of Adjustment Screws.
8. Adjust the Focus Screw and the Zoom Screw of the camera slowly
until the focus value reaches the maximum. For example, the
maximum focus value in Step 4 is 103. For locations of adjustment
screws in each model, see 2.2.2 Locations of Adjustment Screws.
