3.2.5 Picture-in-Picture and Picture-and-Picture View
The full screen mode provides two types of close-up views: Picture-in-
Picture (PIP) and Picture-and Picture (PAP). The two views are useful
to provide clear and detailed images of the surveillance area.
Picture-in-Picture View
With the Picture in Picture (PIP) view, you can crop the video to get a
close-up view or zoom in on the video.

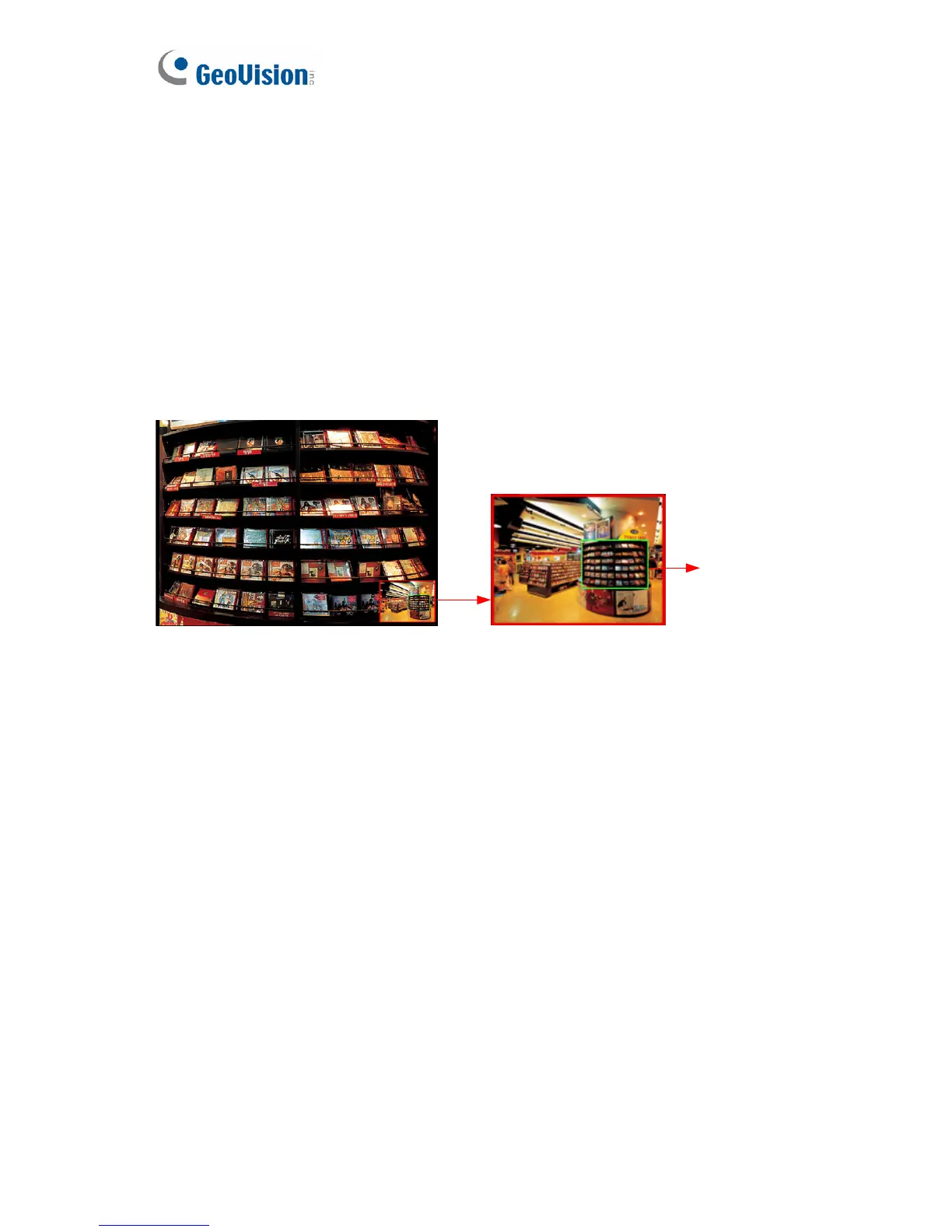

Inset window
Navigation box
Figure 3-7
1. Right-click the live view and select PIP. An inset window appears.
2. Click the insert window. A navigation box appears.
3. Move the navigation box around in the inset window to have a
close-up view of the selected area.
4. To adjust the navigation box size, move the cursor to any of the
box corners, and enlarge or diminish the box.
5. To exit the PIP view, right-click the image and click PIP again.
