52
3.2.14 Visual Automation
Note this function is only supported by cameras with I/O function.
The Visual Automation allows you to change the current state of the
electronic device by simply clicking on its image, e.g. turning the light
ON. This feature is only available when the Visual Automation is set
ahead by the Administrator. For details, see 4.1.6 Visual Automation.

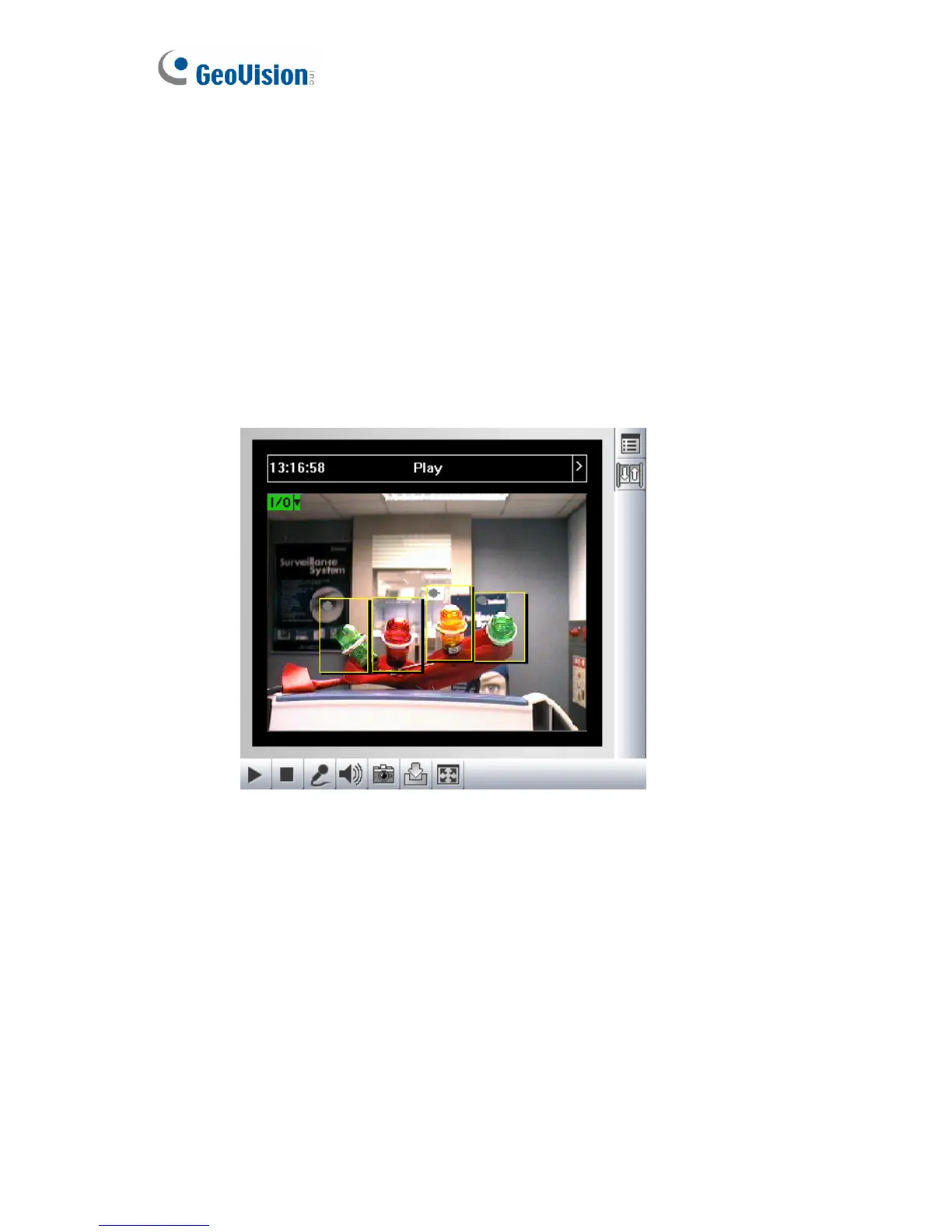

Figure 3-20
• To access this feature, click the I/O Control button (No. 11, Figure 3-
3) and select Visual Automation.
• To change the style of the set areas, click the green I/O button on the
top left corner. You will have these options:
Show All: Displays all set areas.
Rect Float: Embosses all set areas.
Set Color: Changes the frame color of all set areas
