Introduction
1

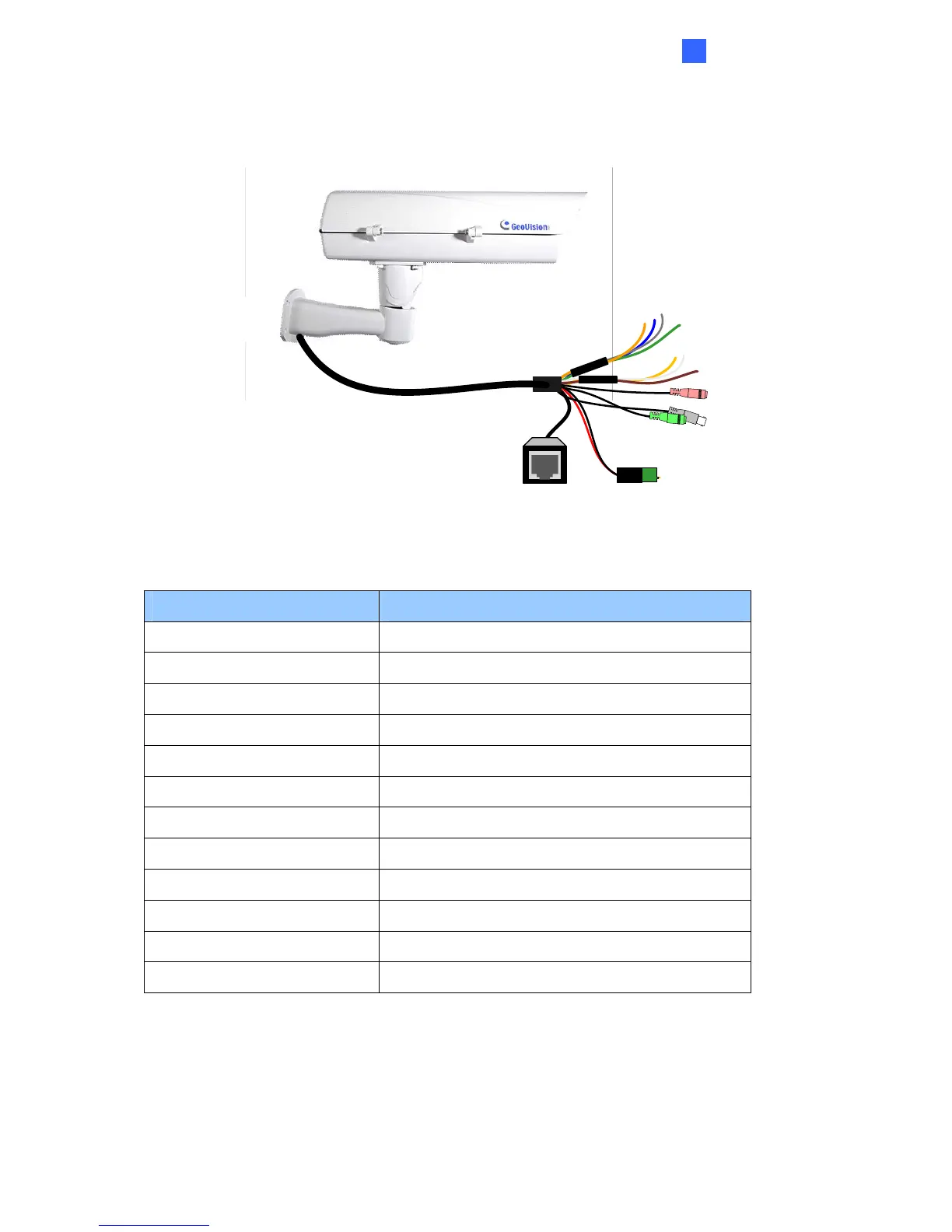

1.3.5.3 Wire Definition
Figure 1-29
Camera
Wire Definition
RJ-45 Ethernet
Black BNC TV out
Green RCA Audio Out
Pink RCA Audio In
Brown Digital Output 1
Yellow Digital Input 1
White GND
Orange Digital Output 2
Blue Digital Input 2
Green RS-485+ (for GV-LPR1200 only)
Gray RS-485- (for GV-LPR1200 only)
2-Pin Terminal Block Power
29
