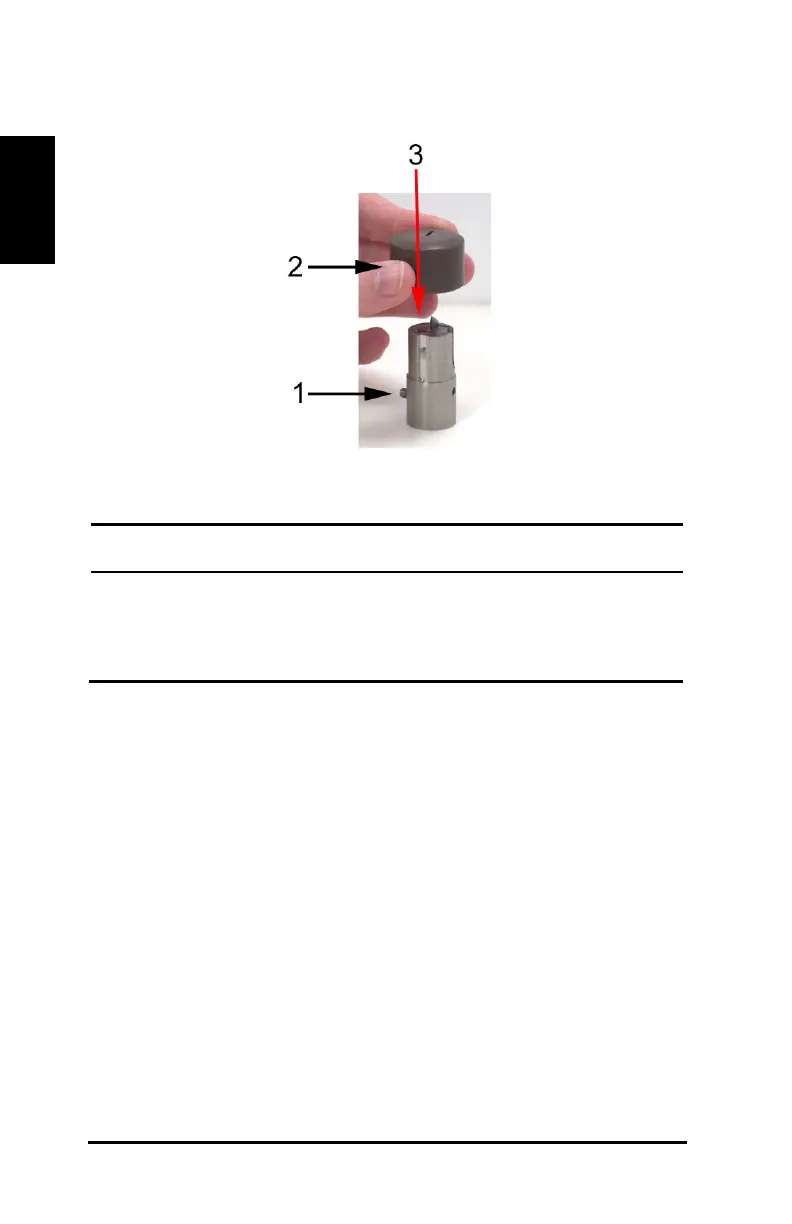

Figure 18: Tool holder

Component



Locking setscrew



Depth limiter



Adjusting setscrew

7) Slightly loosen the locking setscrew and turn the adjusting setscrew

so the blade is slightly protruding out of the depth limiter.

8) Place the entire Knife Cutter assembly on top of the depth gauge.
