Page 31

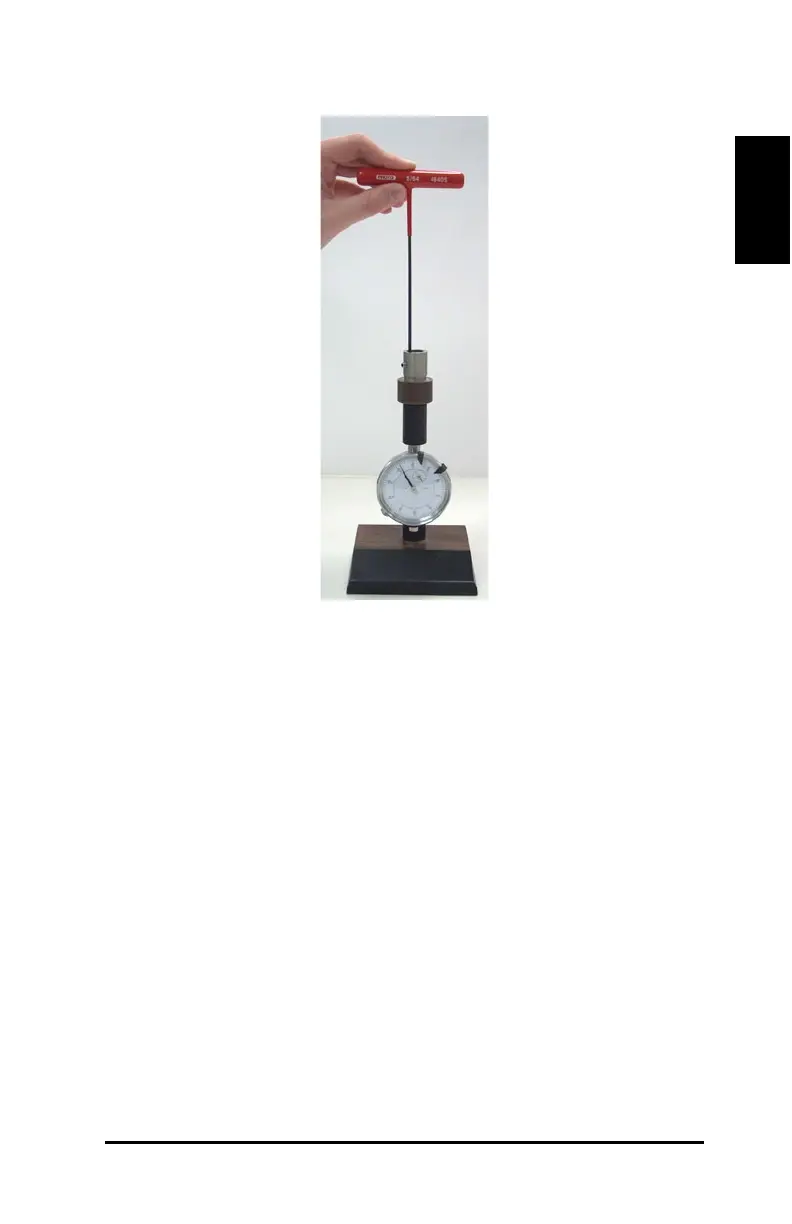

Figure 19: Knife cutter assembly and depth gauge
9) Turn the adjusting setscrew until the depth gauge face plate dial
points to the material thickness noted in step 4.
10) Turn the adjusting setscrew until the depth gauge face plate dial
reads 0.010” to 0.015” more than the material thickness noted in step
4.
11) Tighten the locking setscrew when the correct depth has been
configured.
12) Install on tool holder as explained in the Cutting Tool Installation
section.
