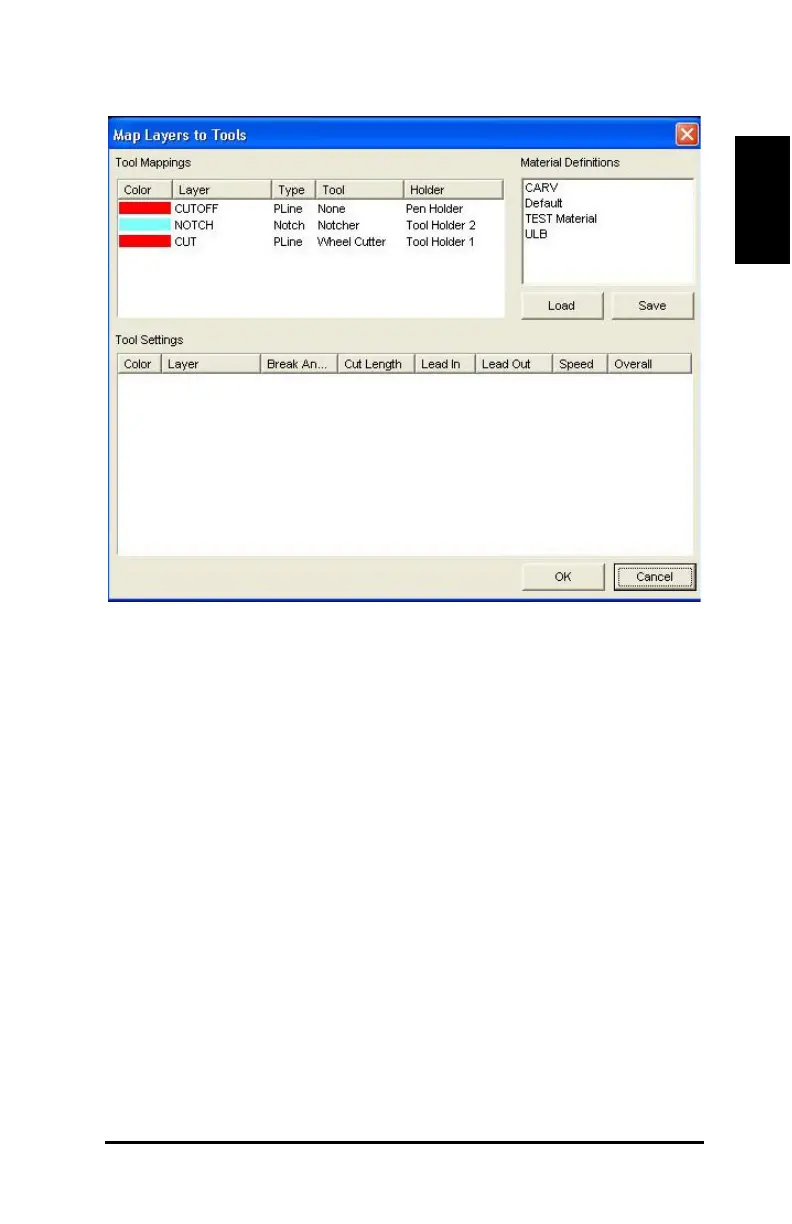

Figure 23: Map Layers to Tools box
11) Map Notch layer. In the Tool Mappings box, click Notch.
The Notch line is highlighted in the Tool Mappings box and the Tool
Settings box.
12) If necessary, right-click the currently selected Notch line tool and
select Notcher.
13) If necessary, right-click on the currently selected Cut line and select
Wheel Cutter.
14) Enter the following properties in the Tool Settings box.
· Under Chisel, right-click and select False.
· Under Angle, right-click and type 0.00.
· Under Length, right-click and type 0.00.
· Under N Hits, right-click and type 1.
