69

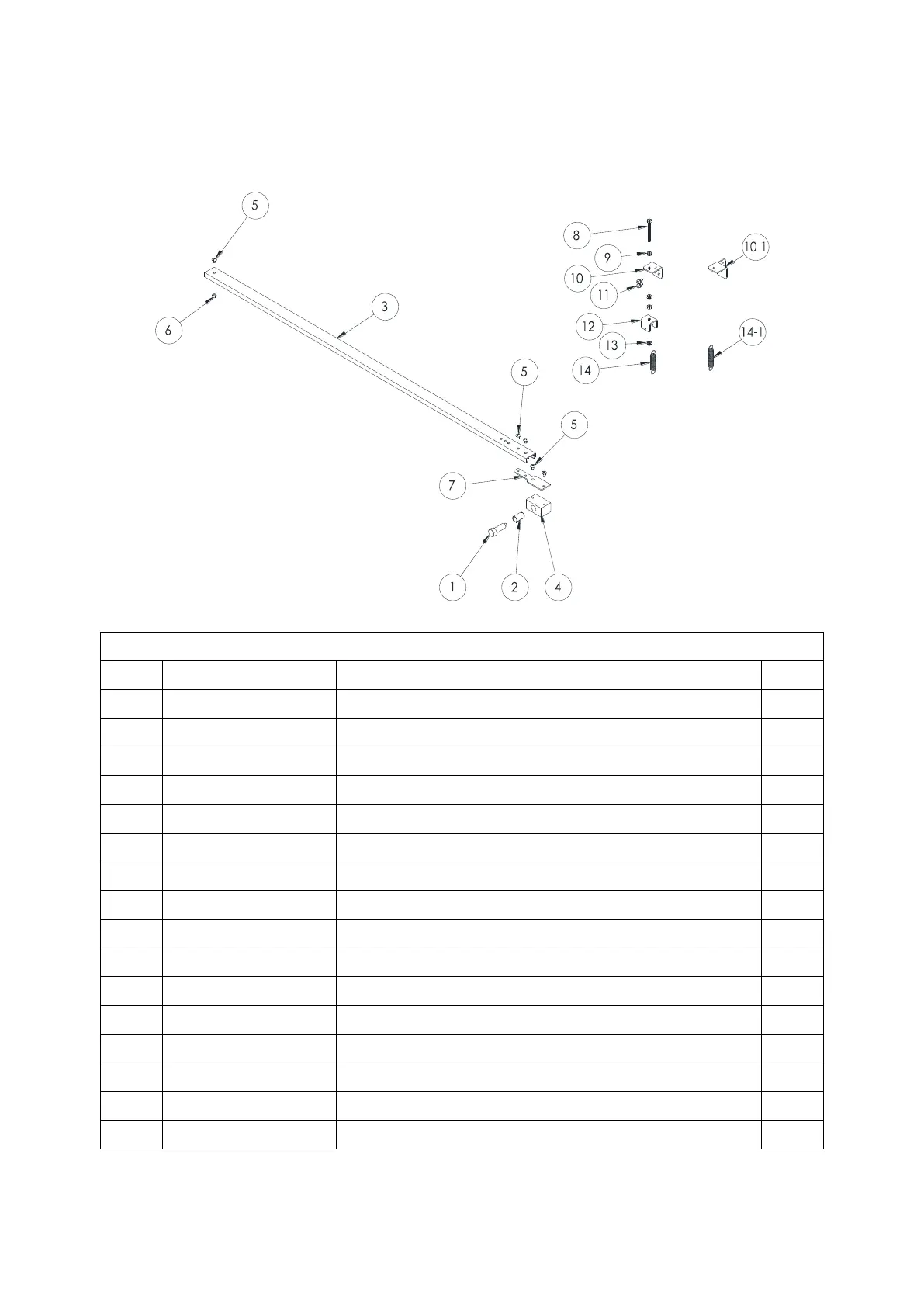

FIG. 14-1 POOL LEVER UNIT
FIGURE 14-1 POOL LEVER UNIT
NO
PART NUMBER
Description
QTY
1
P02-0348700
POOL LEVER SHAFT
1
2
P1104-0310201
BEARING CB1020
1
3
P02-0352720
POOL LEVER
1
4
P02-0352600
POOL LEVER FIXER
1
5
P1101-0104006AZ
SCREW M4*6
5
6
P1102-0104AN
HEX NUT M4
1
7
P01-0575400
POOL LEVER SUPPORT PLATE
1
8
P1101-1005045AZ
SCREW M5x45L
1
9
P1102-0105AN
HEX NUT M5
3
10
P01-0628500
FIX PLATE
1
10-1
P01-0628510
FIX PLATE (1250 WIDTH OR ABOVE)
1
11
P1101-0904008AN
SCREW M4x8L
2
12
P01-0628400
ADJUST PLATE
1
13
P1102-0105BZ
HEX NUT M5
1
14
P1202-0001200
SPRING
1
14-1
P1202-0000100
SPRING (850 WIDTH OR ABOVE)
1
