Use
Installing/removing a QL camera on a Volista lighthead
4
Maquet Orchide
IFU 04661 EN 02
21 / 44
On the lighthead
4
5
6

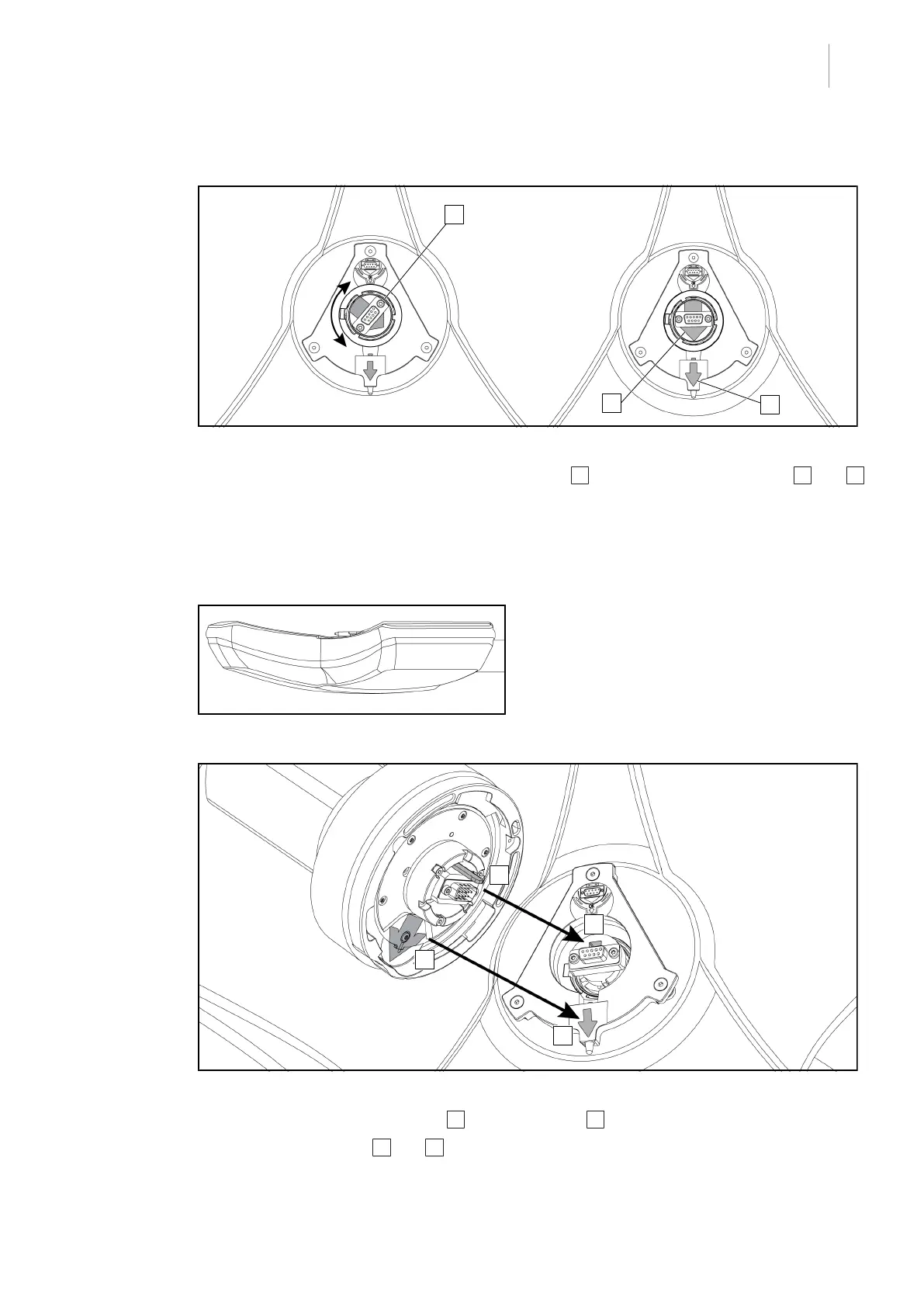

Fig.10: Pre-positioning the lighthead
1. In the centre of the lighthead, orient the connector 4 so that the two green arrows 5 and 6
are aligned.
Ø The lighthead is ready to receive the camera.
4.2.2 Fitting the device to the lighthead
Fig.11: Positioning the lighthead
1. Position the lighthead with the underside
facing the ceiling.
Ø This facilitates installation of the cam-
era on the lighthead.
3
4
6
7
Fig.12: Instructions for installing the Quick Lock system
1. Present the camera with the pin 7 opposite the slot 4 .
2. Place the two arrows 3 and 6 opposite each other.
