Use
Controlling the camera
4
Maquet Orchide
IFU 04661 EN 02
27 / 44
4.7 Controlling the camera
4.7.1 From the lighthead control keypad (zoom only)
1 1
2
3
2
3
4
4

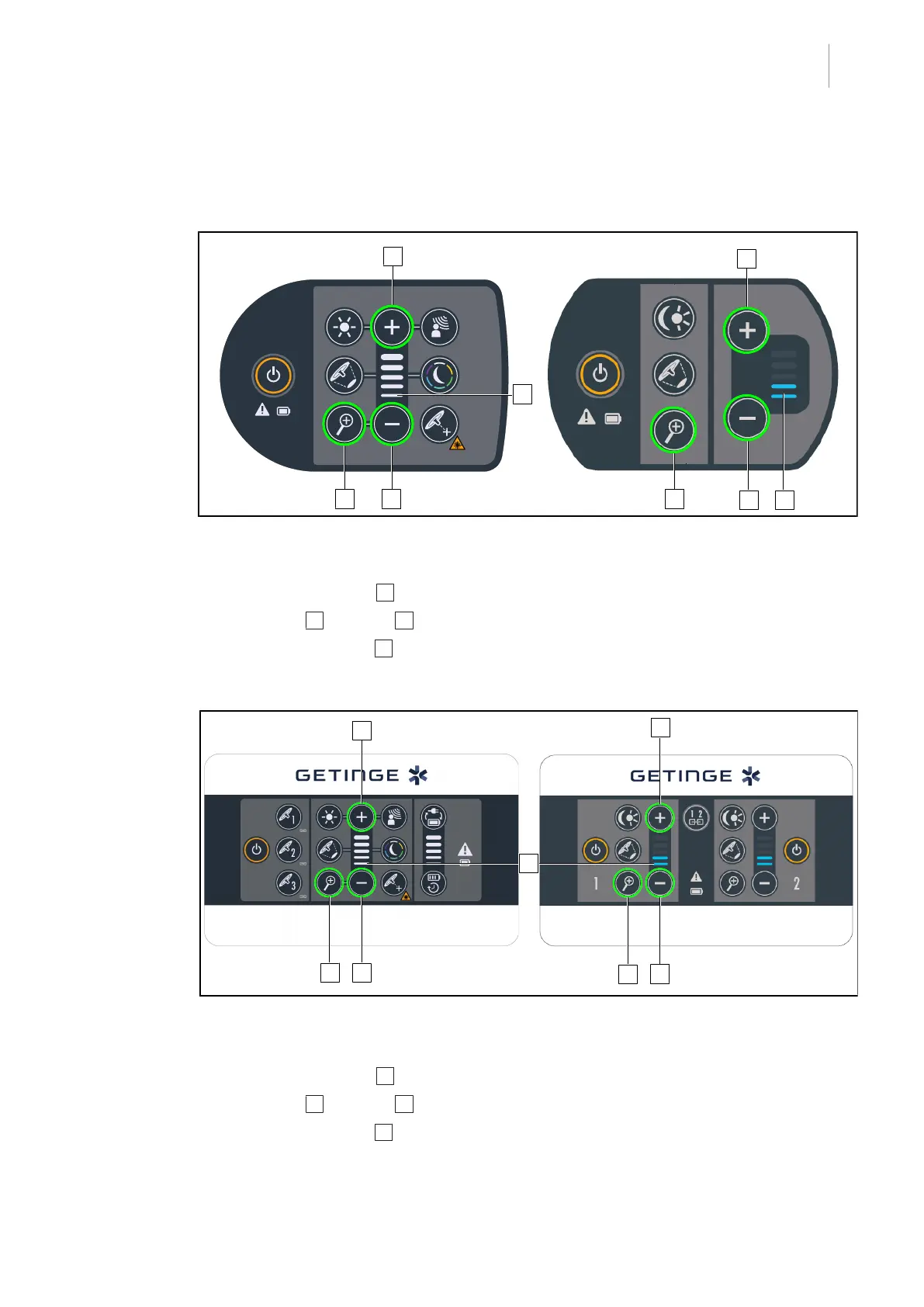

Fig.22: Controlling the camera using the lighthead control keypads
Adjusting the camera zoom
1. Press Camera Zoom 1 .
2. Press Plus 2 or Minus 3 to modify the zoom level.
Ø The level indicator 4 varies according to the zoom level setting on the camera.
4.7.2 From the wall-mounted control keypad (zoom only)
4
2
1
3
2
1
3
Fig.23: Controlling the camera using the wall-mounted control keypads
Adjusting the camera zoom
1. Press Camera Zoom 1 .
2. Press Plus 2 or Minus 3 to modify the zoom level.
Ø The level indicator 4 varies according to the zoom level setting on the camera.
