Installing/removing a QL+ camera on a Maquet PowerLEDII lighthead
4
Maquet Orchide
IFU 04661 EN 02
23 / 44
4.3
Installing/removing a QL+ camera on a Maquet PowerLEDII lighthead
WARNING!
Risk of infection
The installation or removal of a handle mount or a camera during an opera-
tion may cause particles to fall onto the surgical site.
The installation or removal of a Quick Lock device must be performed out-
side the operating area.
4.3.1 Mounting the camera on the lighthead
1
2

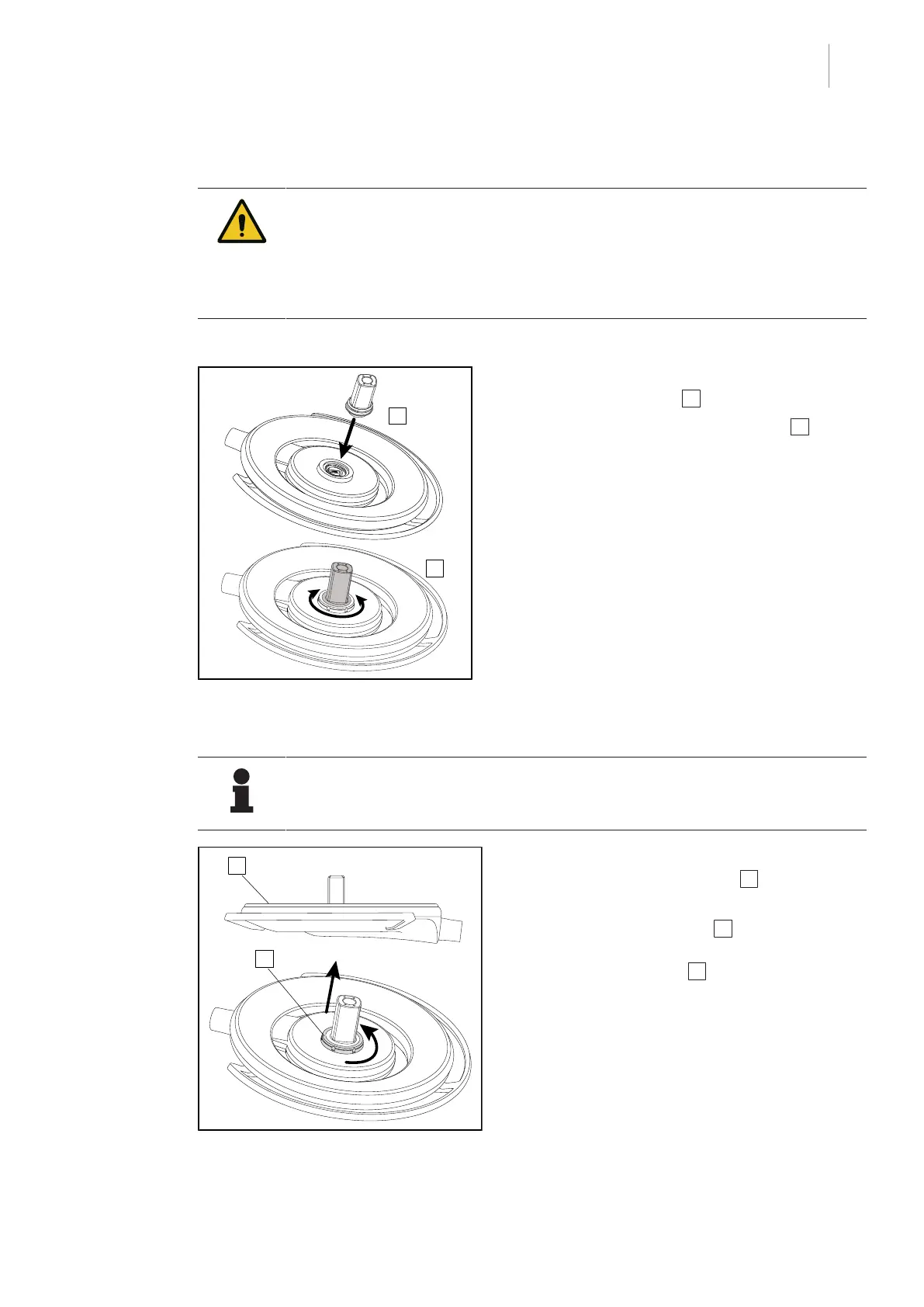

Fig.16: Installing a QL+ camera
1. Insert the camera in the slot at the centre
of the lighthead 1 .
2. Rotate the camera until it clicks 2 .
3. Move the lighthead to check that the cam-
era is firmly attached.
Ø The camera is installed.
4.3.2 Removing the device
NOTE
Turn the lighthead over so that the underside is facing the ceiling, in order to re-
move the camera.
1
2
Fig.17: Removing a Quick Lock device
1. Turn the lighthead over so that the under-
side is facing the ceiling 1 .
2. Once the lighthead is turned over, rotate
the locking interface 2 anti-clockwise and
then remove the camera whilst holding the
locking interface 2 .
Ø The camera has been removed.
