Use
Installing/removing a QL camera on a Volista lighthead
20 / 44
Maquet Orchide
IFU 04661 EN 02
4.2 Installing/removing a QL camera on a Volista lighthead
WARNING!
Risk of injury
If the handle mount or camera are not installed, live parts may be accessible.
Technicians should turn off the equipment before installing or removing
Quick Lock accessories on a lighthead.
WARNING!
Risk of infection
The installation or removal of a handle mount or a camera during an opera-
tion may cause particles to fall onto the surgical site.
The installation or removal of a Quick Lock device must be performed out-
side the operating area.
4.2.1 Pre-positioning prior to installation
On the camera
1 2 3

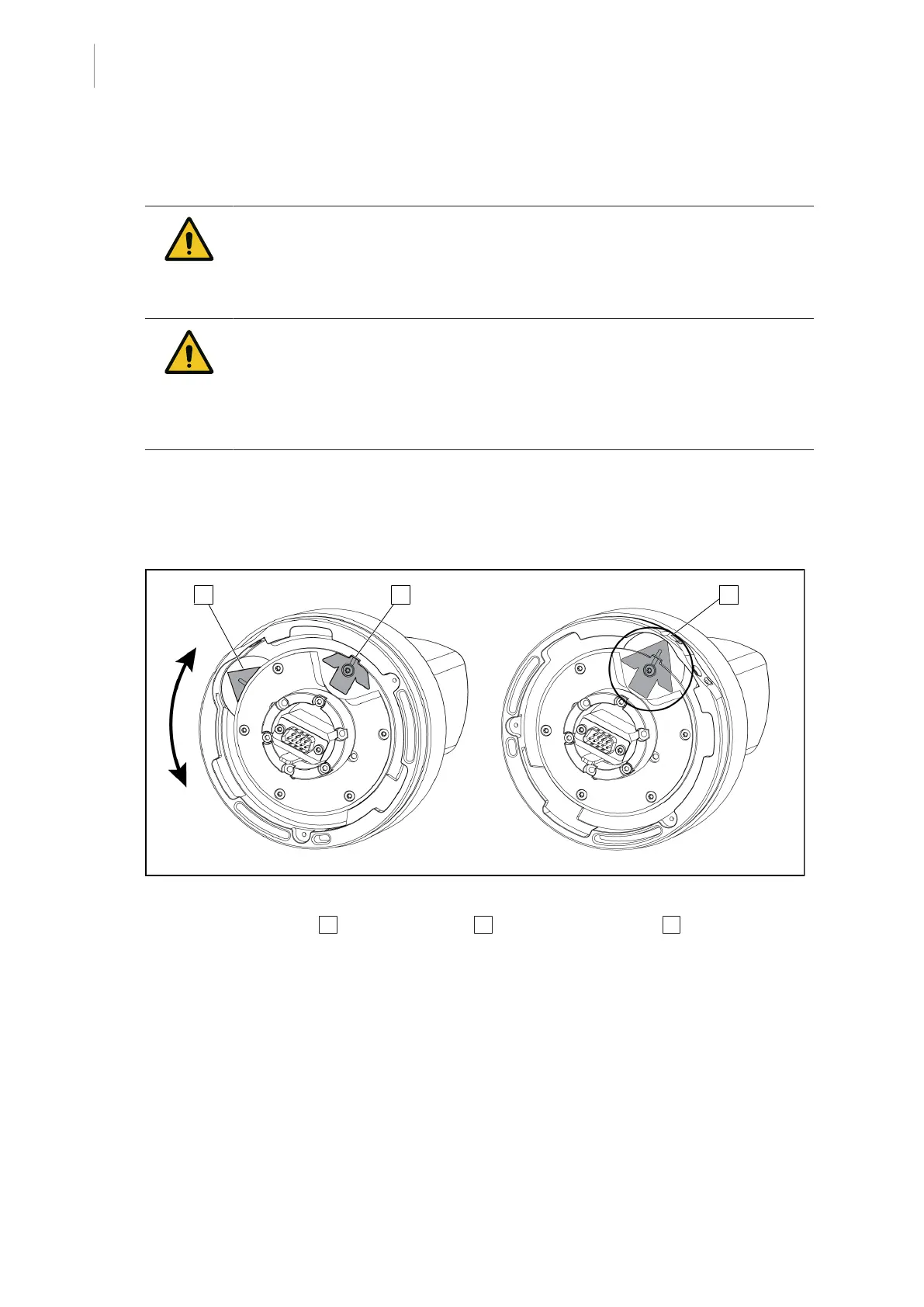

Fig.9: Pre-positioning the camera
1. Rotate the baseplate 1 to align with the tip 2 and form a green arrow 3 .
Ø The camera is ready to be positioned.
