Getinge Maquet PowerLED II Maintenance Manual

5
Adjustments
Adjusting the Valia spring arms
24 / 56
Maquet PowerLEDII
01810 EN 03

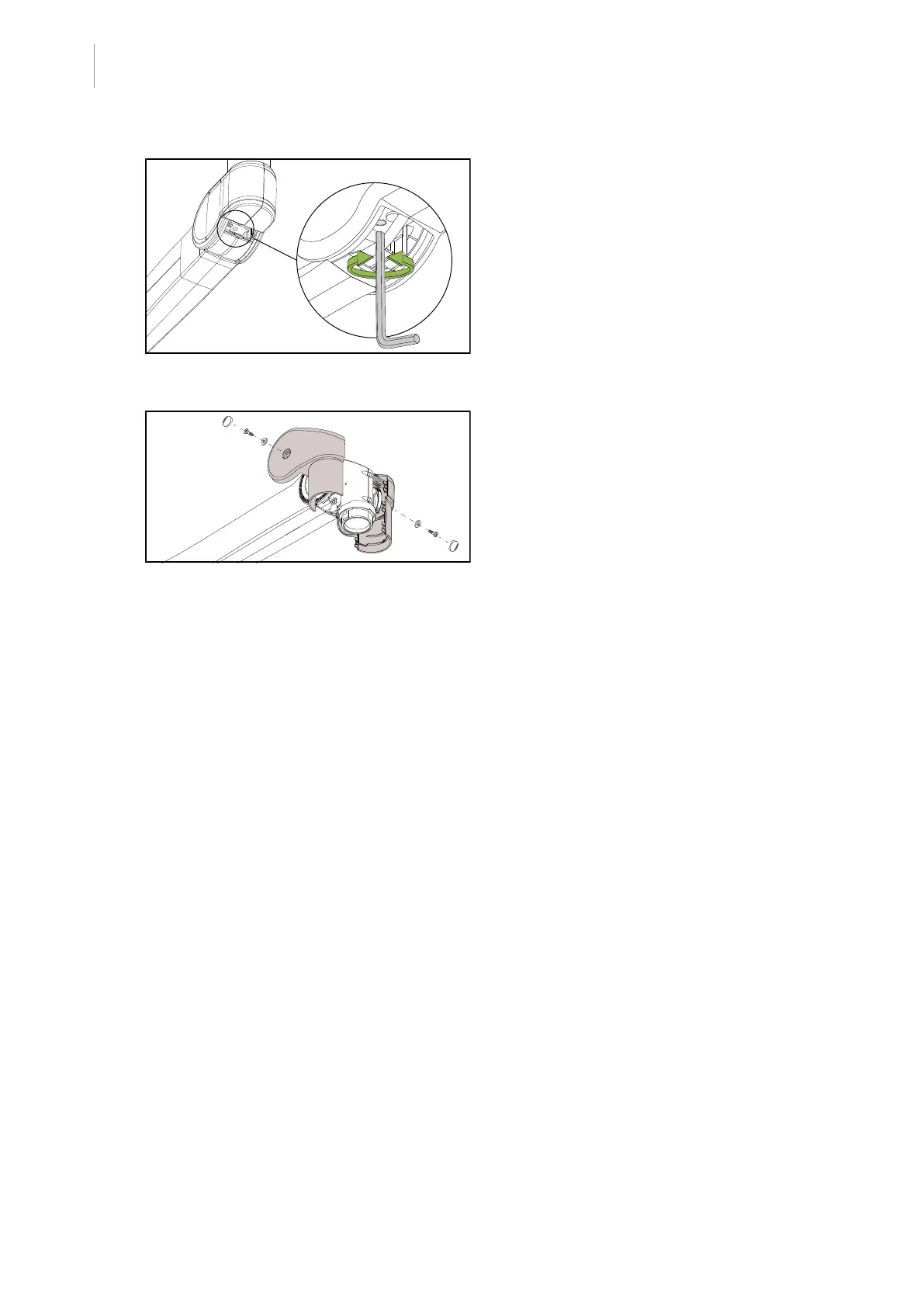

Fig.22: Adjusting the tension
• Position horizontally and push back the
tab halfway to access the adjustment
screw.
• Insert a 5-mm Allen key.
• Tighten to decrease the tension.
• Loosen to increase the tension.
Fig.23: Fitting the front flanges
• Clip on the two flanges.
• Fit the two washers with the two M4x10
screws; tighten until they make contact.
• Fit the screw covers.
