Getinge Maquet PowerLED II Maintenance Manual

Inspections
Mechanical inspections
6
Maquet PowerLEDII
01810 EN 03
35 / 56

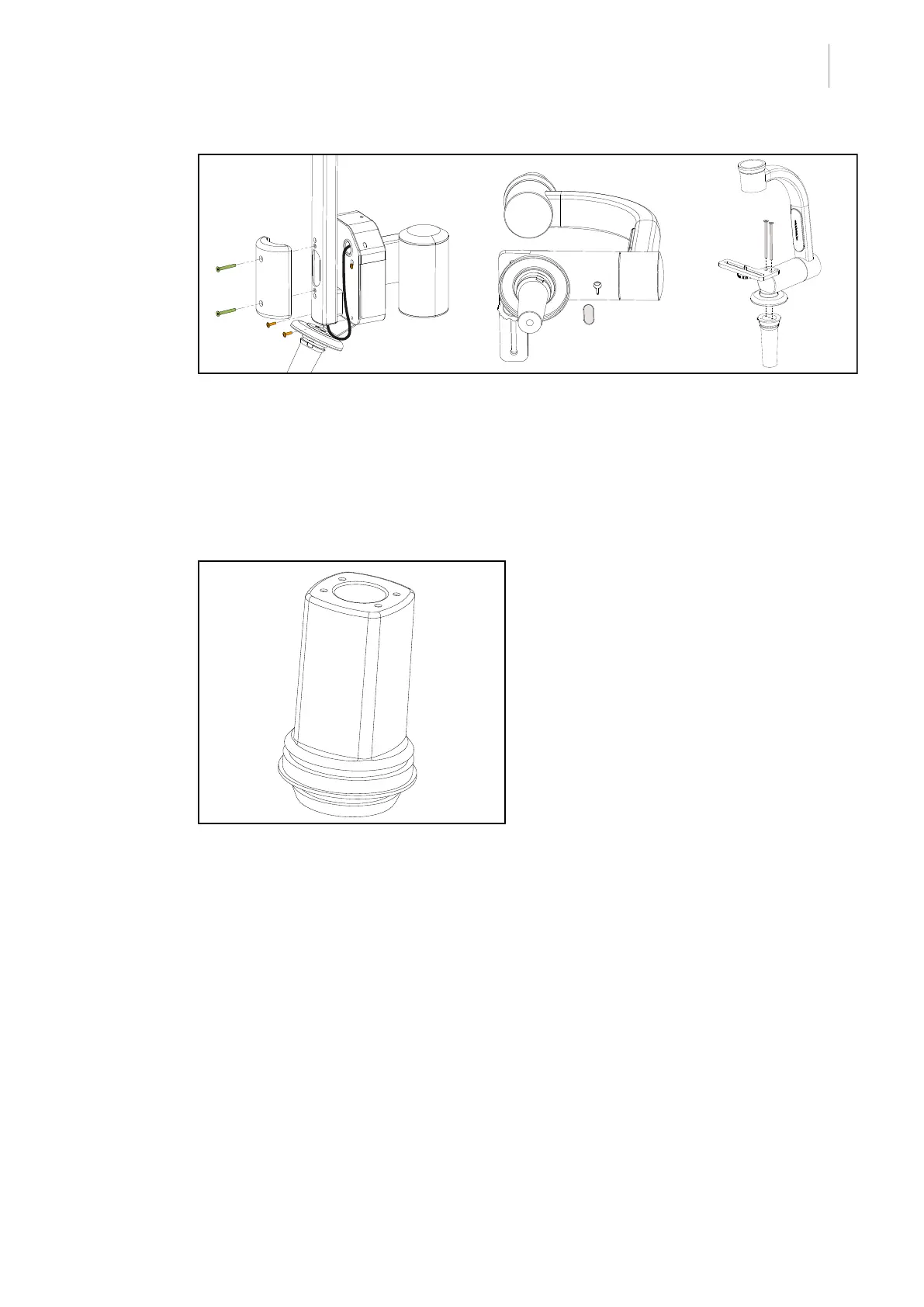

Fig.45: Camera mount
• Check the position of the stops for the orientation angles.
• Check that the handle mount is firmly attached.
• FHS0: Check that the camera mount is firmly attached to the FHS0 mount.
• SC05/07: Check that the adjustment of the brake screws has been performed.
• SC05/07: Check that the camera mount and Kodak screw are fastened securely.
• Check that the caps are fully inserted.
Fig.46: Camera
• Check the condition of the connector.
• Check the rotation with no image loss.
• Check the general condition of the system.
