Inspections
Electrical inspections
6
Maquet PowerLEDII
01810 EN 03
41 / 56
The protective earth resistance should be measured between the flange 1 and the lighthead
hub 2 (not the brake screw). First remove the silicone cover A from the lighthead. Once the
measurement is complete, replace the silicone cover A .
FHS0/MHS0/MHD2 monitor mounts

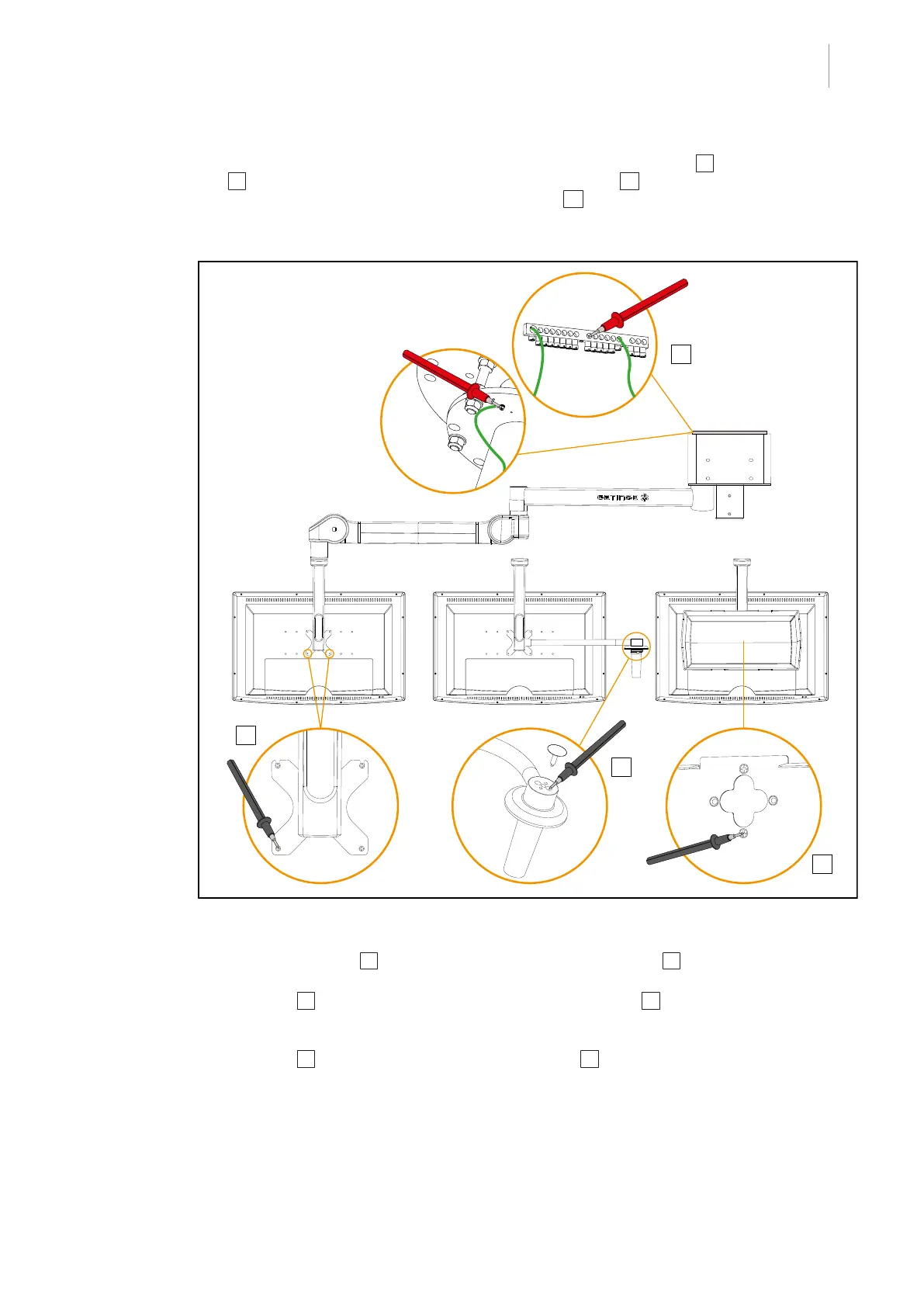

Fig.54: FHS0/MHS0/MHD2 electrical safety test
• If the monitor mount does not include any accessories, the measurement should be made
between the flange 1 and one of the monitor mounting screws 2 .
• If the monitor mount includes a handle option, the measurement should be made between
the flange 1 and one of the handle mount mounting screws 3 . Once the measurement is
made, push the cap in fully using a mallet.
• If the monitor mount includes a Rear Box option, the measurement should be made between
the flange 1 and one of the case mounting screws 4 , with case cover removed. Once the
measurement is complete, replace the cover.
