Gigabyte MD80-TM0 User Manual

- 27 - Hardware Installation

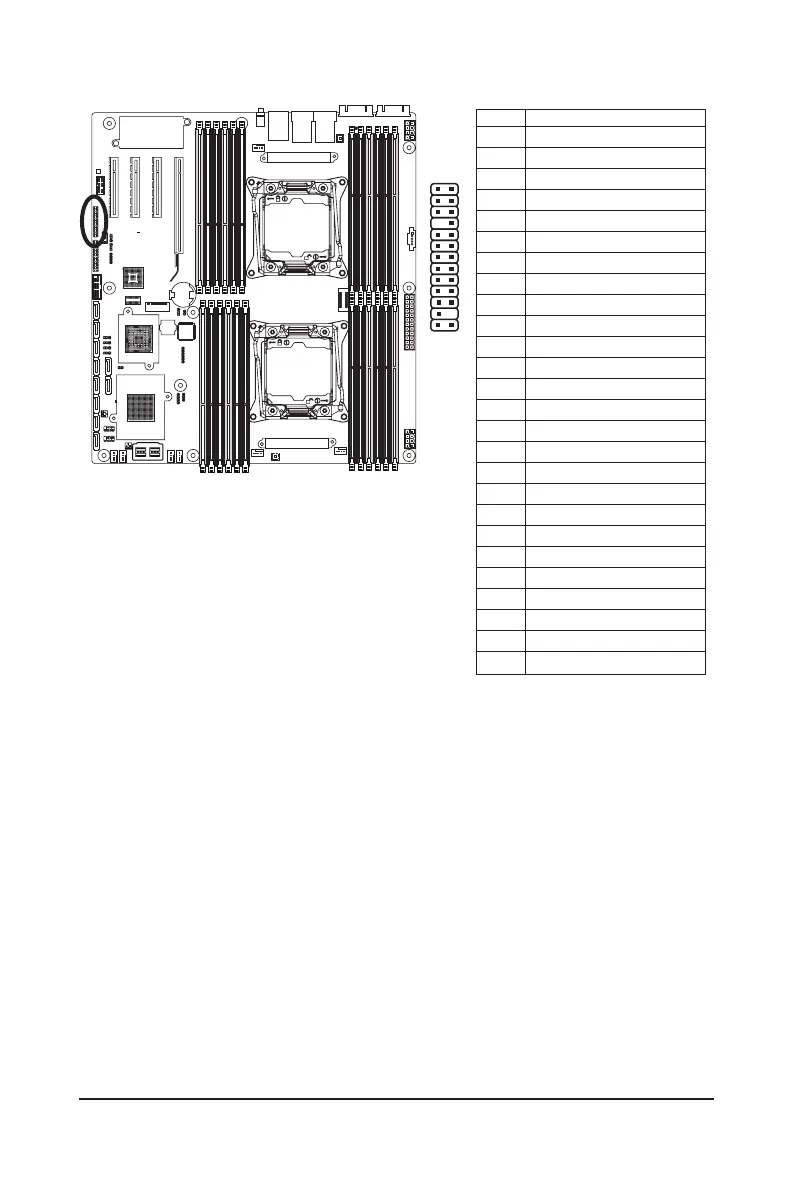

18) BP_1 (HDD Back Plane Board Hearders)
1 2
25 26
PinNo. Denition
1 BP_SGP_CLK
2 NC
3 BP_SGP_GLD
4 FAN_GATE_N
5 BP_SGP_DOUT
6 GND
7 KEY
8 RESET
9 GND
10 BP_LED_A_N
11 BP_LED_G_N
12 GND
13 BP_SGP_DIN
14 NC
15 GND
16 SMB_BP_DATA
17 GND
18 SMB_BP_CLK
19 P_3V3_AUX
20 BMC_ACK
21 P_3V3_AUX
22 BMC_REQ
23 GND
24 KEY
25 BP_PRESENSE
26 GND
