Hardware Installation - 28 -

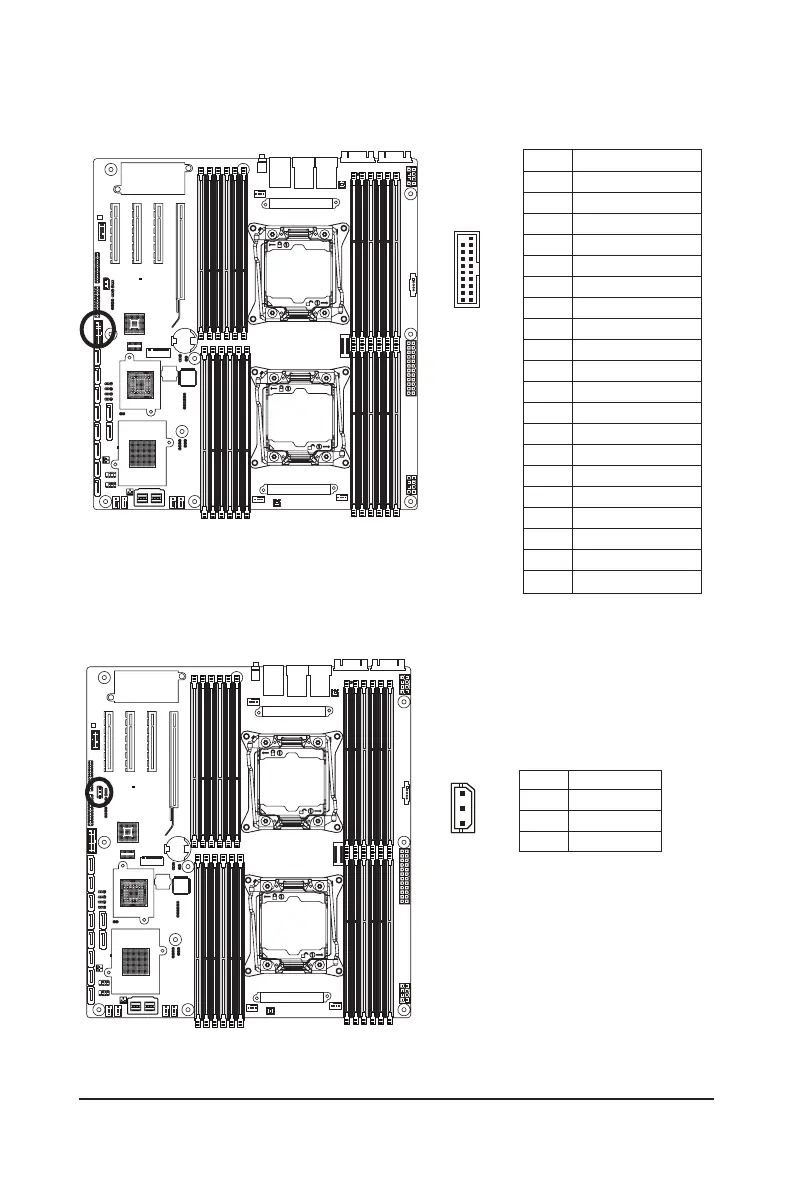

19) F_USB3 (USB 3.0 Header)
 Theheaders conformto USB 3.0specication. EachUSB header canprovide twoUSB ports viaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
PinNo. Denition
1 Power
2 IntA_P1_SSRX-
3 IntA_P1_SSRX+
4 GND
5 IntA_P1_SSTX-
6 IntA_P1_SSTX+
7 GND
8 IntA_P1_D-
9 IntA_P1_D+
10 NC
11 IntA_P2_D+
12 IntA_P2_D-
13 GND
14 IntA_P2_SSTX+
15 IntA_P2_SSTX-
16 GND
17 IntA_P2_SSRX+
18 IntA_P2_SSRX-
19 Power
20 No Pin
1
20
1011
20) IPMB (IPMB Connector)
PinNo. Denition
1 Clock
2 GND
3 Data
3
1
