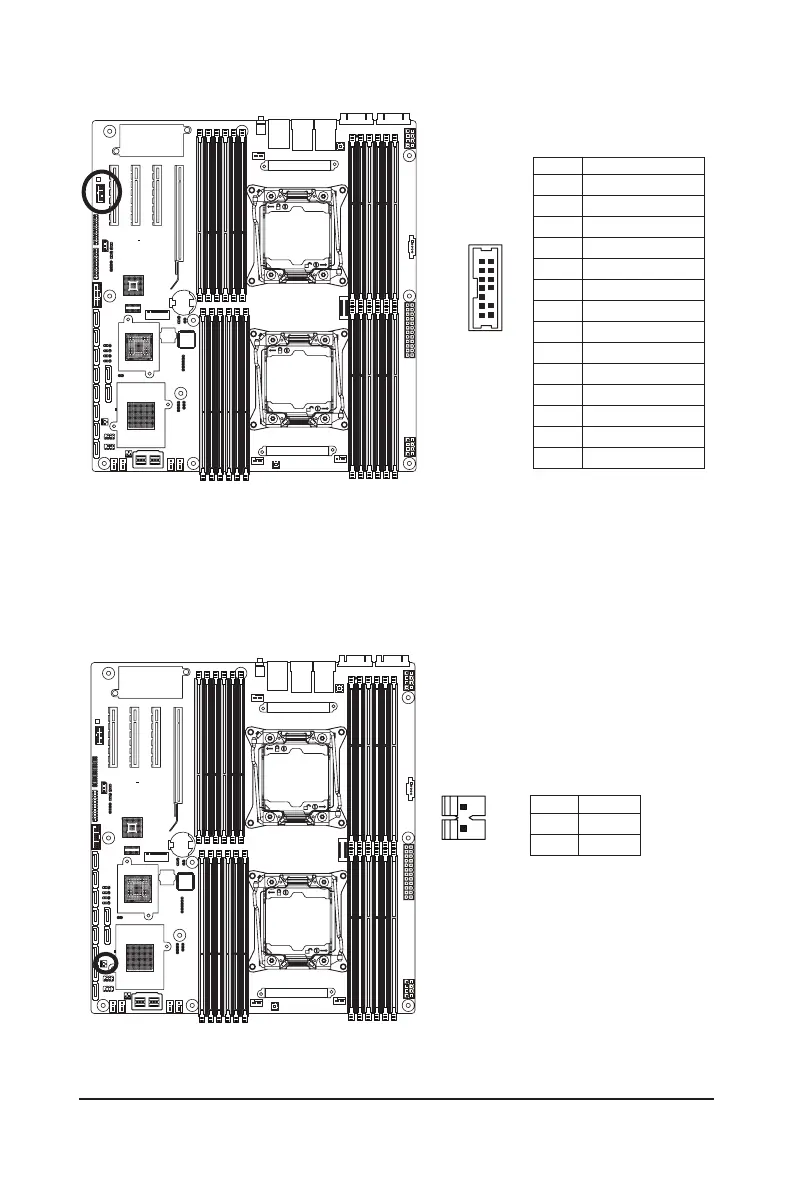

- 29 -
Hardware Installation
PinNo.
Denition
1
CLK_33M_TPM
2
P_3V3_AUX
3
LPC_RST
4
P3V3
5
LPC_LAD0
6
IRQ_SERIAL
7
LPC_LAD1
8
TPM_DET_N
9
LPC_LAD2
10
NC
1
1
LPC_LAD3
12
GND
13
LPC_FRAME_N
14
GND
21)
TPM (TPM Module Connector)
1
2
13
14
2
1
22)
SW_RAID (Intel RAID Key Header)
PinNo.
Denition
1
KEY
2
GND
28
30
Table of Contents
default chapter
3
Table of Contents
3
Box Contents
5
MD80-TM0 Motherboard Layout
6
Block Diagram
9
Chapter 1 Hardware Installation
10
Installation Precautions
10
Product Specifications
11
Installing the CPU and CPU Cooler
13
Installing the CPU
13
Installing the CPU Cooler
16
Installing the Memory
17
Four Channel Memory Configuration
17
Installing a Memory
18
DIMM Population Table
18
Back Panel Connectors
19
Internal Connectors
20
Jumper Settings
33
Chapter 2 BIOS Setup
38
The Main Menu
40
Advanced Menu
43
Serial Port Console Redirection
44
PCI Subsystem Settings
47
PCI Express Settings
49
Network Stack
51
Csm Configuration
52
Post Report Configuration
54
Trusted Computing
55
Usb Configuration
56
Chipset Configuration
57
SIO Configuration
58
Iscsi Configuration
60
Intel RC Setup Menu
61
Processor Configuration
63
Pre-Socket Configuration
63
Advanced Power Management Configuration
67
CPU P State Control
68
CPU C State Control
69
CPU T State Control
70
Common Refcode Configuration
71
Qpi Configuration
73
Memory Configuration
74
Memory Topology
74
Memory Thermal
77
Memory Map
78
Memory Ras Configuration
79
Iio Configuration
80
Ioat Configuration
81
Intel VT for Directed I/O (VT-D)
82
Pch Configuration
83
PCH Devices
84
Pch Ssata Configuration
86
SATA Mode Options
88
Pch Sata Configuration
90
SATA Mode Options
93
Usb Configuration
95
Miscellaneous Configuration
96
Server Me Configuration
97
Runtime Error Logging
98
Whea Setting
99
Memory Error Enabling
100
PCI/PCI Error Enabling
101
Server Management Menu
102
System Event Log
104
View FRU Information
105
Bmc Network Configuration
106
Security Menu
107
Secure Boot Menu
108
Key Management
109
Boot Menu
111
Save & Exit Menu
113
BIOS POST Codes
115
BIOS POST Beep Code
119
PEI Beep Codes
119
DEX Beep Codes
119
BIOS Recovery Instruction
120
Chapter 3 Appendix
121
Regulatory Statements
121
