GLEANER R66 - Shields, Screens, and Alarms Safety

Safety
01-12 79032996 A Rev.
SHIELDS
NOTE: Some pictures in this manual will show shields
removed for visibility or access to parts of the
combine. Numerous shields must be opened
and/or removed to perform normal service and
adjustment procedures.
m
WARNING: Never operate the combine or
allow others to operate the combine unless
all shields supplied with the combine and
the combines attachments are properly in
place.
Feeder House

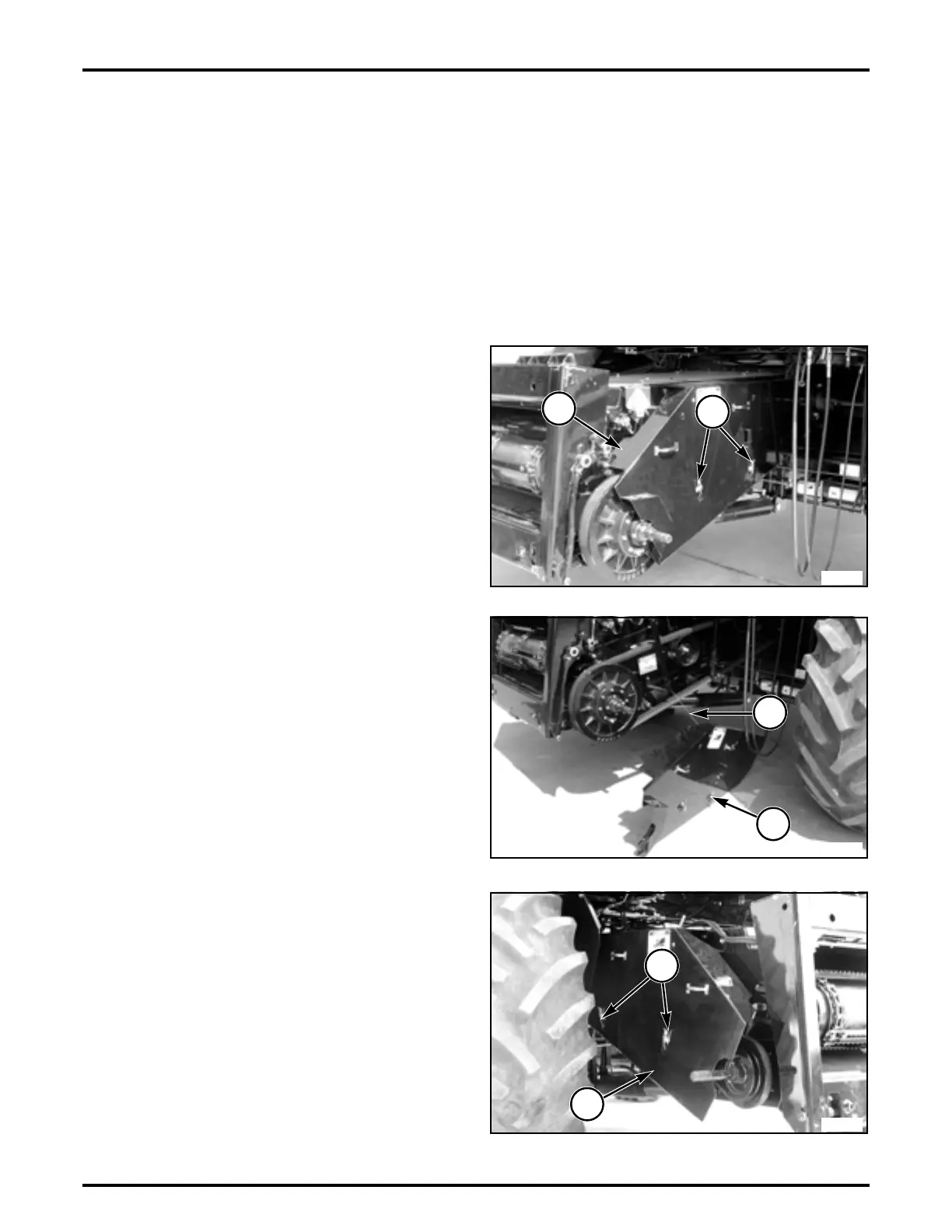

FIG. 33: Left-hand feeder housing shield (1) shown in
latched position. To remove, release latch (2) and lift
shield off mounting brackets.
FIG. 34: Left-hand feeder housing shield (1) shown
removed with tether (2).
FIG. 35: Right-hand feeder housing shield (1) shown in
latched position. To remove, release latch (2) and lift
shield off mounting brackets.
FIG. 33
1
2
H716001
FIG. 34
2
1
H716006
FIG. 35
1
2
H716004
