79032996 A Rev. 01-15
Safety
FAN LEAF SCREEN

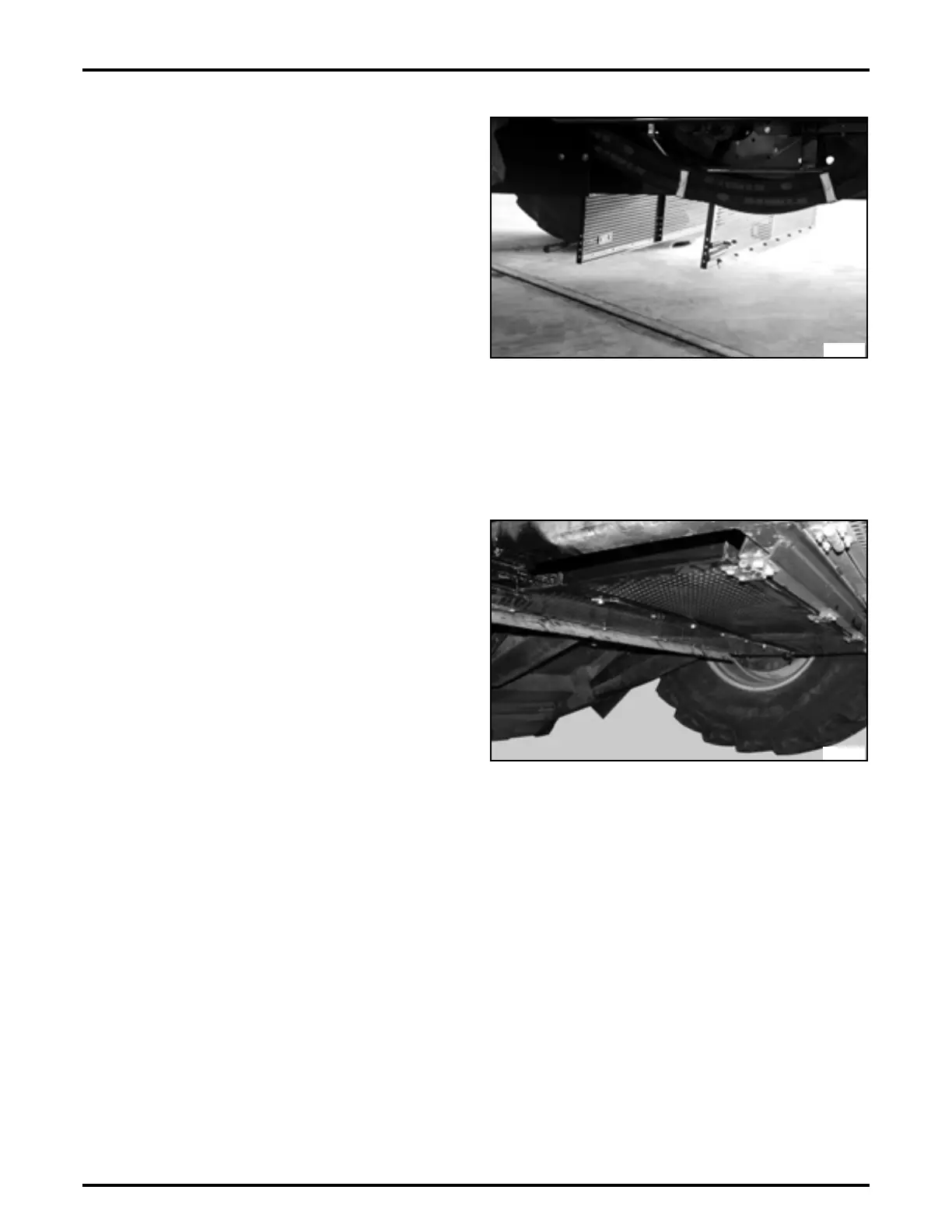

FIG. 42: To open:
1. Make sure everything is cleared from under the
machine.
2. Locate release handle on either side of combine
separator frame.
3. Pull release handle. Doors will open rapidly and
automatically.
To close:
1. Hold front door in closed position and swing rear door
shut with enough force to latch the doors together.
m
CAUTION: Make sure hands and fingers
are clear when shutting the doors. NEVER
operate or transport or allow others to
operate or transport the combine unless
ALL SHIELDS supplied with the combine
and its attachments are PROPERLY IN
PLACE AND PROPERLY LATCHED.
TRANSMISSION SCREEN
FIG. 43: To open:
1. Make sure everything is cleared from under the
machine.
2. Locate release handle on either side of combine
separator frame.
3. Pull release handle. Doors will open rapidly and
automatically.
To close:
1. Hold rear door in closed position and swing front door
shut with enough force to latch the doors together.
m
CAUTION: Make sure hands and fingers
are clear when shutting the doors. NEVER
operate or transport or allow others to
operate or transport the combine unless
ALL SHIELDS supplied with the combine
and its attachments are PROPERLY IN
PLACE AND PROPERLY LATCHED.
FIG. 42
H715001
FIG. 43
M501429
