GLEANER R66 - Standard Rear Axle

General Information
01-34 79032996 A Rev.

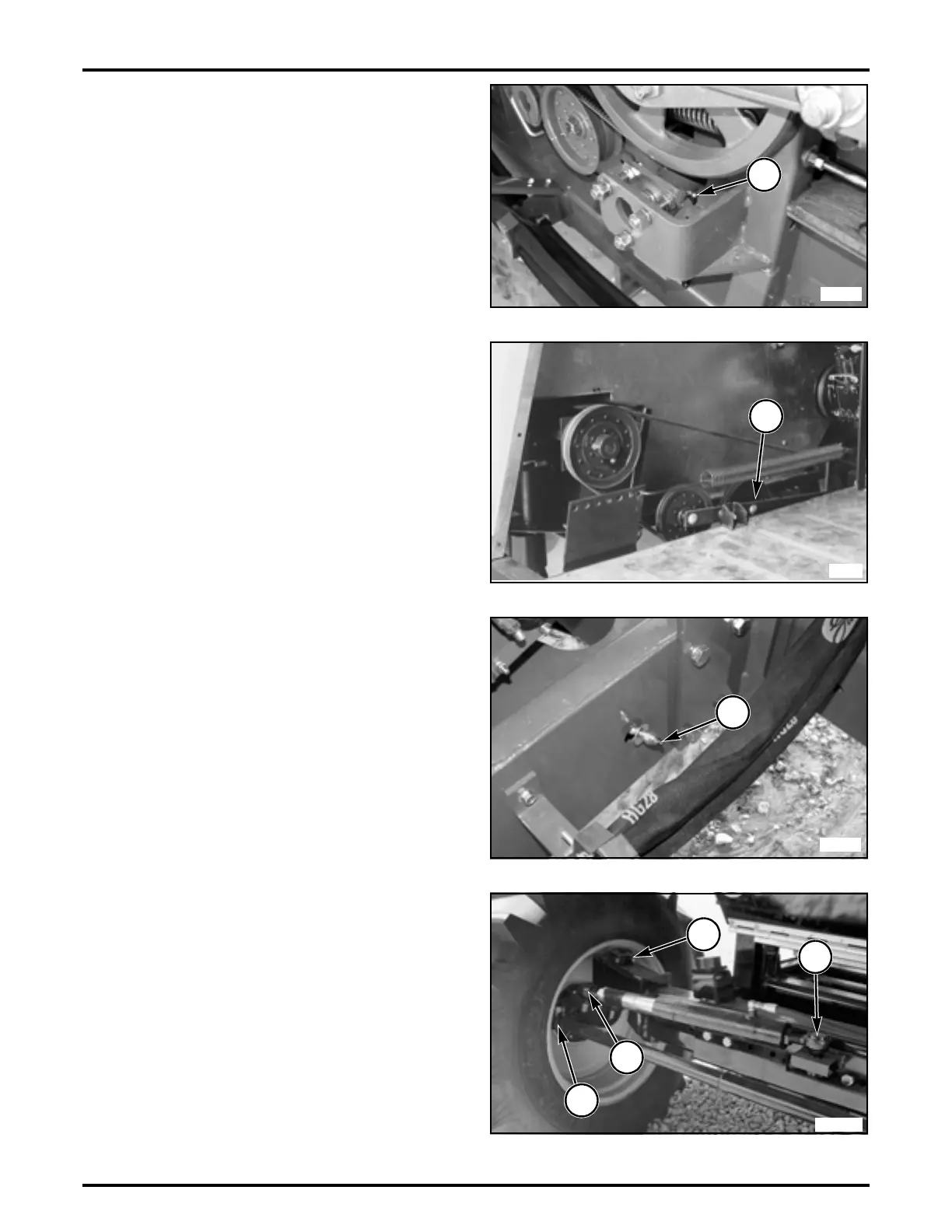

FIG. 70: Behind fan drive.
Fan Drive Idler (1) - (50 hours or weekly).
FIG. 71: In engine compartment.
Straw Spreader Drive Idler (1) - (50 hours or weekly).
FIG. 72: In front of rear axle (left and right hand).
Axle Pivot - Two fittings (1) - (50 hours or weekly).
Standard Rear Axle
FIG. 73: Left-hand end.
Spindle Housing (1) - (50 hours or weekly).
Tie Rod Ball Socket (2) - (50 hours or weekly).
Steering Cylinder Ball Sockets - Two fittings (3) - (50
hours or weekly).
