GLEANER R66 - Cylinder Gearbox; Front of Combine; Rear of Combine

General Information
01-38 79032996 A Rev.
Cylinder Gearbox

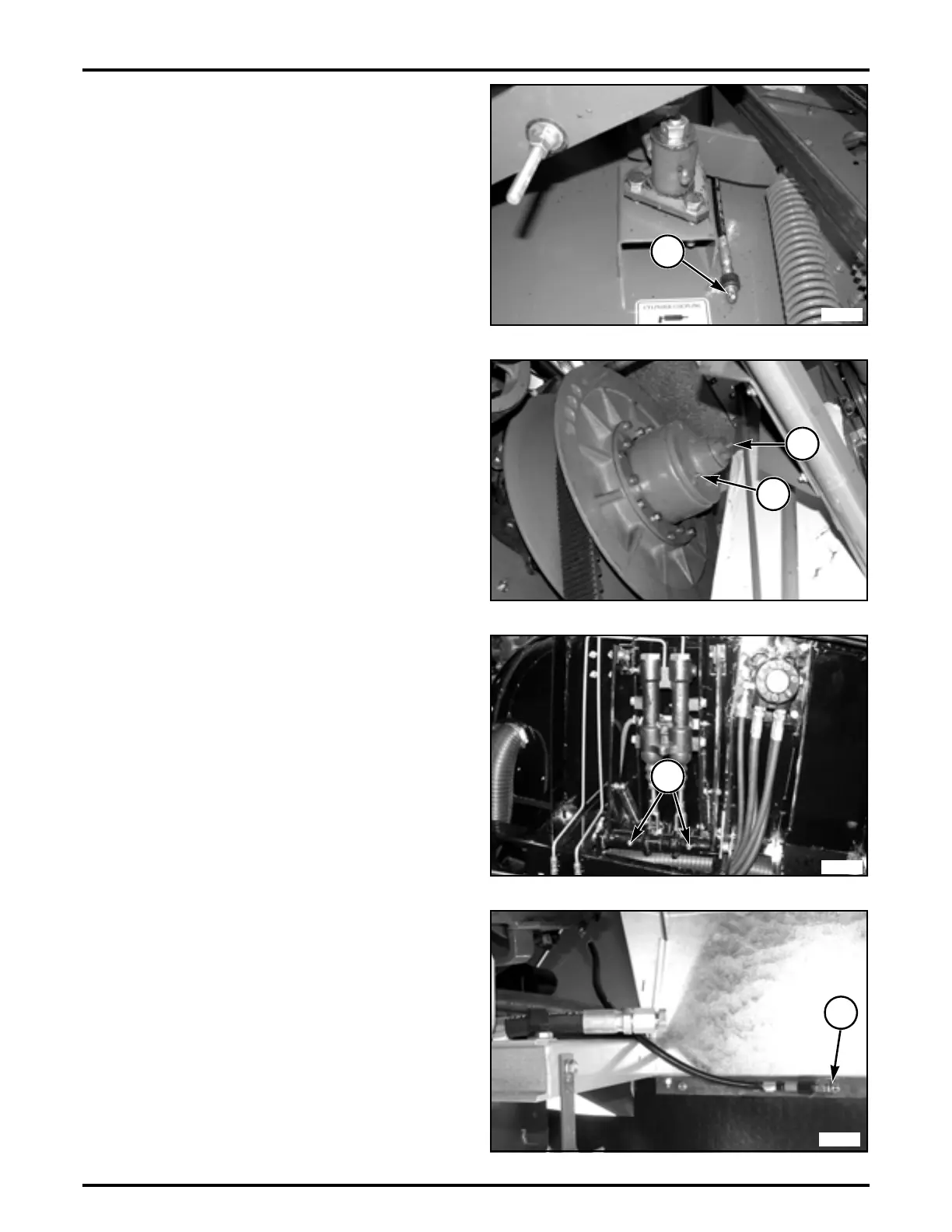

FIG. 86: Cylinder gearbox to cylinder shaft drive coupler.
Remote, use grease gun, approximately 10 pumps.
Located on the right hand end of the processor housing
(1) - (10 hours).
FIG. 87: Cylinder driven sheave and torque sensor.
Pump as much grease as possible in the two fittings (1) -
(10 hours). Run variable speed to highest speed and then
lowest speed after greasing. Reset cylinder speed to
original speed.
Front of Combine
FIG. 88: Under Cab Floor.
Brake shaft bearings - two fittings (1) - (500 hours).
Rear of Combine
FIG. 89: Rear of combine on left-hand side near oil drain
hose.
Hydro-Traction drive idler hub (1) - (50 hours).
