GLEANER R66 - Lateral Tilt; Main Drive Axle

79032996 A Rev. 01-39
General Information
Lateral Tilt

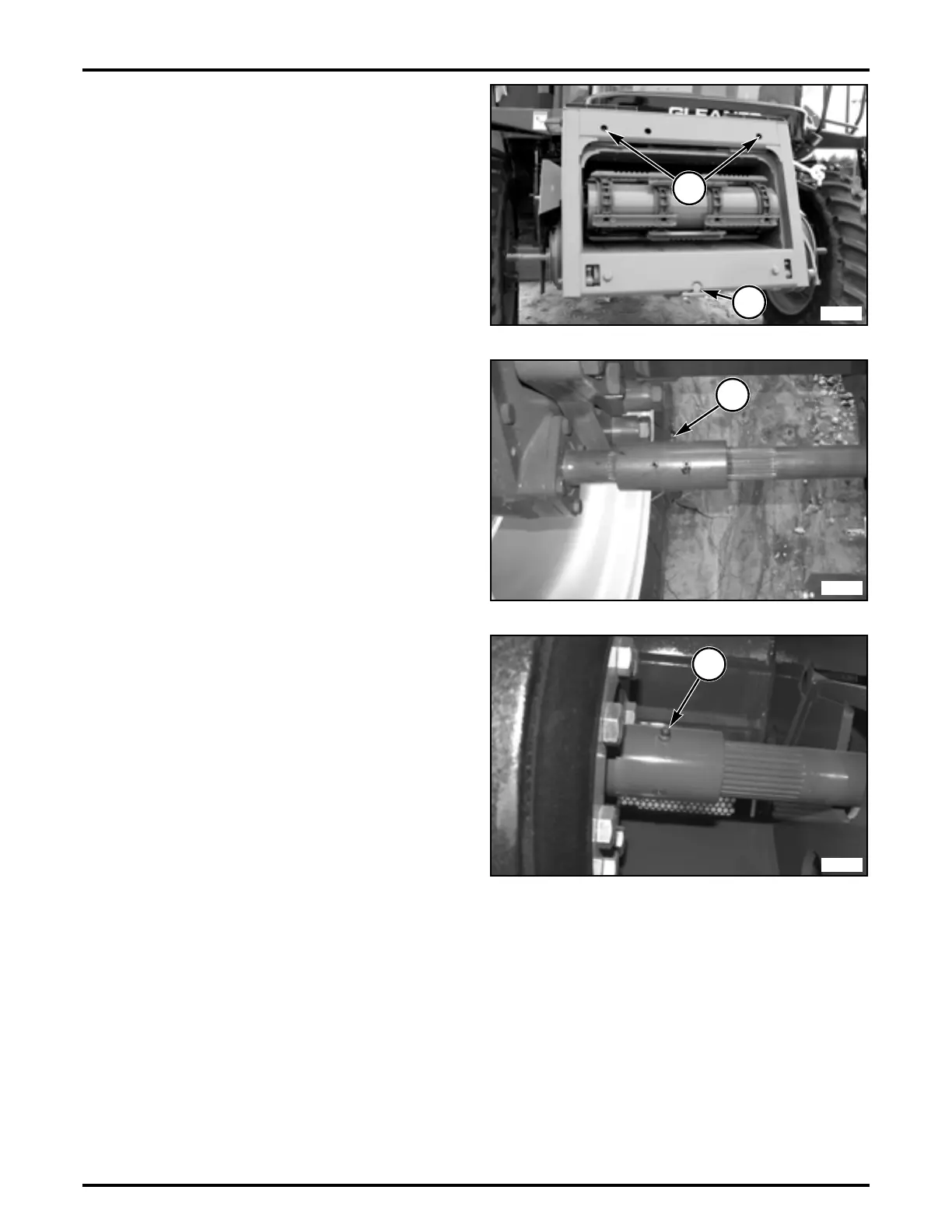

FIG. 90: Lateral tilt rollers (1) - (Every 100 hours).
Pivot pin (2) - (Every 100 hours).
Main Drive Axle
Outer Axle
FIG. 91: Main drive axle outer coupler, left-hand side
shown, right-hand opposite. One lube fitting each coupler
(1) - (100 hours).
Inner Axle
FIG. 92: Right-hand and left-hand inner coupler (1) -
(100 hours).
Also when lubricating the under carriage of the combine,
check for any damage or looseness of parts in steering
linkage, drive shafts, brake rods, etc.
