11PowerUp Installation and Operation Manual

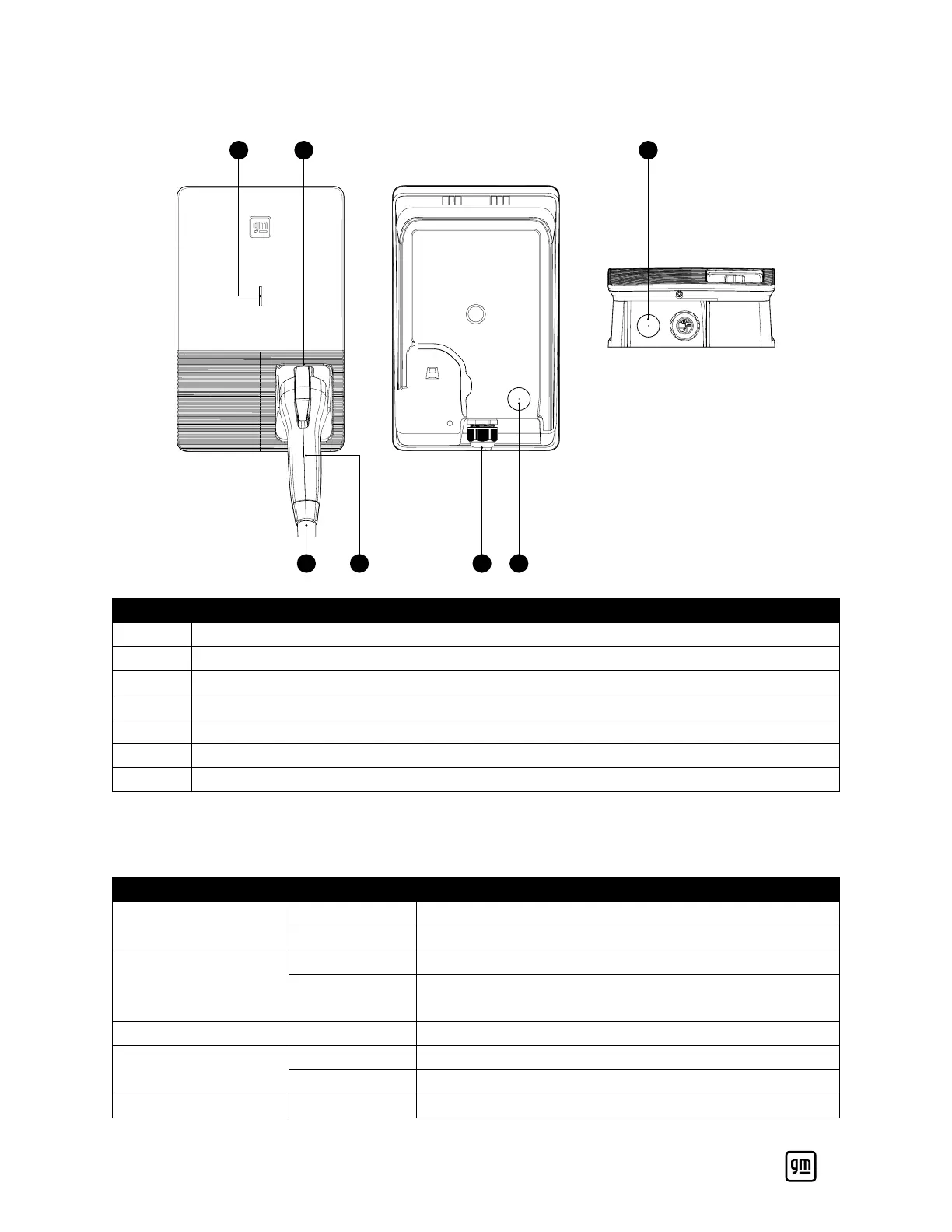

THE POWERUP CHARGER
4
1 2 3
5 6 7
No. Item
1 LED Indicator
2 Plug Holder
3 Drilling Mark for Bottom Wire Routing
4 Charging Cable
5 Charging Coupler
6 Charging Cable Gland
7 Drilling Mark for Rear Wire Routing
LED Indicator Definitions
LED Behavior Definition
WHITE
Blinking The wall charger is in the initialization process
Solid Ready to charge (not connected to EV)
GREEN
Blinking Charging in progress
Solid
• Charge complete (connected to EV)
• Charging is delayed (vehicle is not requesting power)
YELLOW Blinking Updating Firmware
RED
Blinking Charger error (recoverable)
Solid Charger or max. current setting error
WHITE + GREEN + RED Solid Installation not complete (DIP switches not set)
To Next Page
