CONFIGURING THE DIP SWITCHES

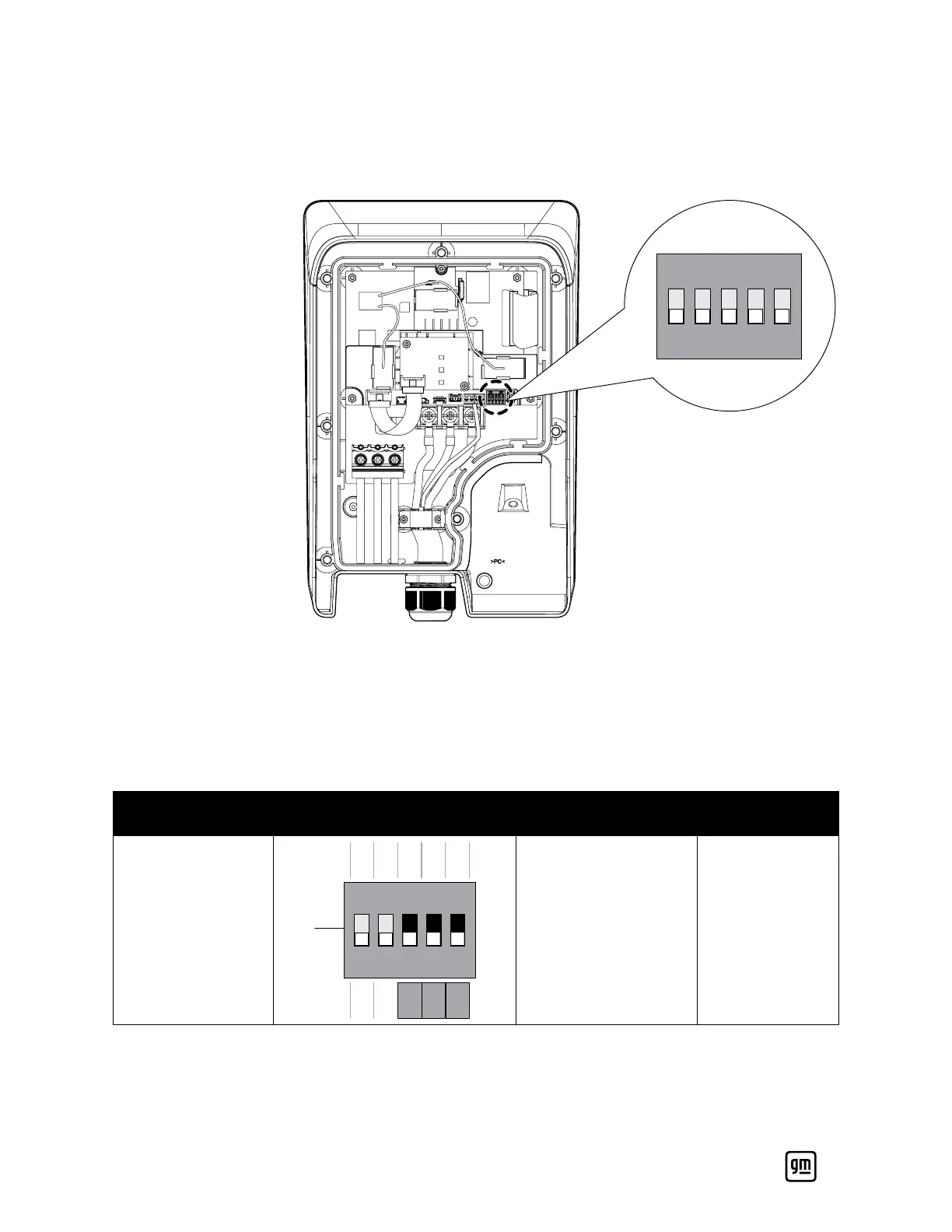

The factory default output is 0A for the PowerUp charger. Use the DIP switches
to configure the maximum output current ratings.
DIPON
1 2345
The following settings can be configured with the DIP switches:
Maximum Current Settings
Pins 3 to 5 configure the maximum output current ratings.
DIP Switch Setting Configuration PowerUp AC Amperage
OCPD Breaker
Size
00000
DIPON
ONOFF
1 OFF 2 OFF 3 OFF 4 OFF 5 OFF
1 ON 2 ON 3 ON 4 ON 5 ON
12
345
0 N/A
