To connect Standard Charger to the instrument:
1) Lift dust cover from charger socket in rear face of instrument
then connect charger plug, as shown in Fig. 13.17.
2) Connect charger to mains supply, as shown in Fig. 13.16,
then switch power ON.

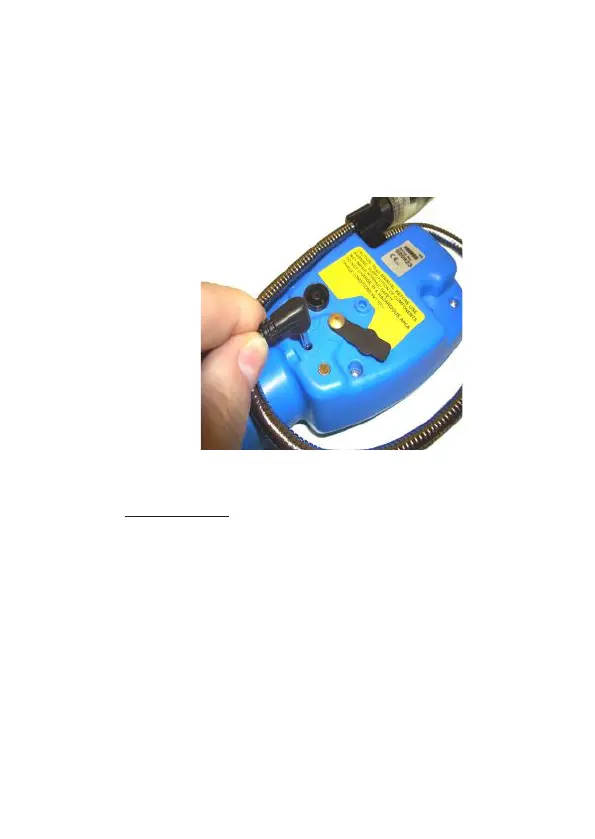

Fig. 13.17 Connect Charger to Instrument
Charging Station (Part No. 67101)
The charging station, shown in Fig. 13.18, is used to locate the
instrument securely while charging is taking place.
The charging station is used together with the Universal Power Supply
(Part No.12444), 12V Vehicle Power Supply (Part No.12988) or the
24V Reduction Box (Part No.67233).
The charging station ‘Power ON Indicator’ illuminates when the
station is connected to the mains supply via a Power Supply Unit
(Part No.14613).
The instrument should be left overnight connected to the charging
station to recharge discharged batteries. This period may vary
depending upon operational conditions such as temperature and
the condition of the batteries in terms of capacity.
To Next Page
