To install instrument in charging station:
1) Check that instrument charging contacts, illustrated in Fig.
13.19, and the station charging contacts, illustrated in Fig.
13.20, are clean and free of dirt / grease.

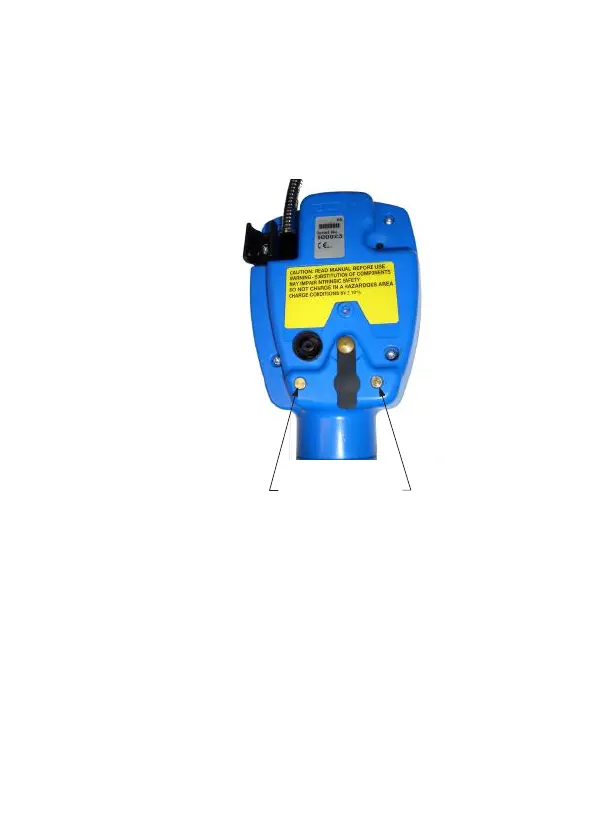

Fig. 13.19 Instrument Charging Contacts
2) Make sure that the instrument is switched OFF.
3) Locate extension pole recess in instrument handle over
location in charging station then locate instrument handle in
storage clip and engage securing strap. Refer to Fig. 13.18
and Fig. 13.20.
