Approx 44 mm
Main Spindle
(H0508-S)
Main Blade Grip Assembly ....x2
Note
: Larger ID
Inside
Oring
(HC453)
Thrust Bearing
5x
10x4mm
(HC435-S)
Button Head Cap
Screw M4x6mm
(HC096-S)
Center Hub Assembly
Flanged Bearing
2x
5x2.5mm
(HC456-S)
Main Blade Grip
Assembly
Bearing
5x
10x4mm
(HC411-S)
Radius Arm Assembly ... x 2
Radius Plastic
Arm Assembly
Damper
(H0518-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Linkage Rod A
NOTE
: We recommend assembling without shims for sport flying.
However, for 3D flight or high RPM, the best setup is assembling
with at least one shim between the damper and bearing.
After approximately 20/30 flights, please manually check the
head dampening, you can add one 0.1mm shim (HC450) if the
dampening feels loose.
Head HPS Assemly
Center Hub
(H0514-S)
Bearing
5x
10x4mm
(HC411-S)
Main Blade Grip
(H0513-S)
Blade Grip Arm
(H0517-S)
NOTE:
Tighten with care, the arm must move freely.
Linkage Rod A Assembly .....x2
(Initial length for the rods from the
swashplate to the Blade Grip.)
Plastic Ball Link
(H0403-S)
Linkage Rod
M2x22mm
(H0561-S)
eg: Microlube GL261
Bag 4
Radius Arm
(H0516-S)
Flanged Bearing
2x
5x2.5mm
(HC456-S)
Uniball M2
(H0538-S)
Socket Head Cap
Screw M2x10mm
(HC010-S)
Washer
7.5x
10x0.5
(H0349-S)
Plastic Ball Link
(H0403-S)
Washer
5x
7x0.1
(HC450-S)
Note:
Inside
[HC453]
[H0518]
Radius Plastic Arm Assembly ... x 2
Radius Arm
Assembly
Socket Head Cap
Screw M2x10mm
(HC010-S)
Washer
2.1x
5 x0.5mm
(HC170-S)
Radius Plastic Arm
(H0525-S)
Page 9

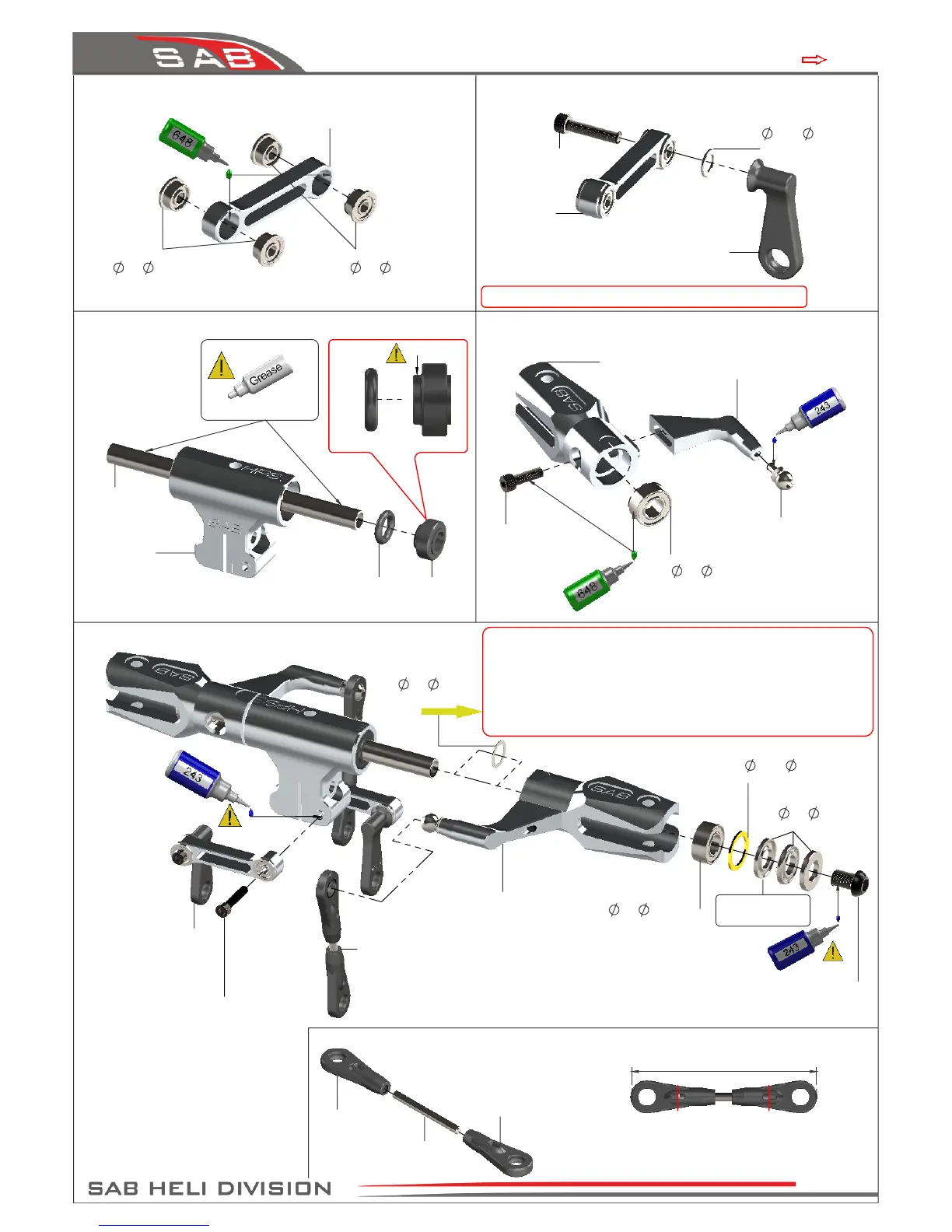

Chapter 6, Main Rotor Assembly
To Next Page
