Goblin 420 - Tip on Cable Routing; HPS Head Preliminary Setup

Initial length for the rods from
the servos to the swash plate.
Approx 65 mm
Plastic ball link
(H0066-S)
Initial length for the rods from
the swashplate to the blade grips.
Set Screw M2.5x40mm
(HC242-S)
Linkage Servo
(H0524-S)

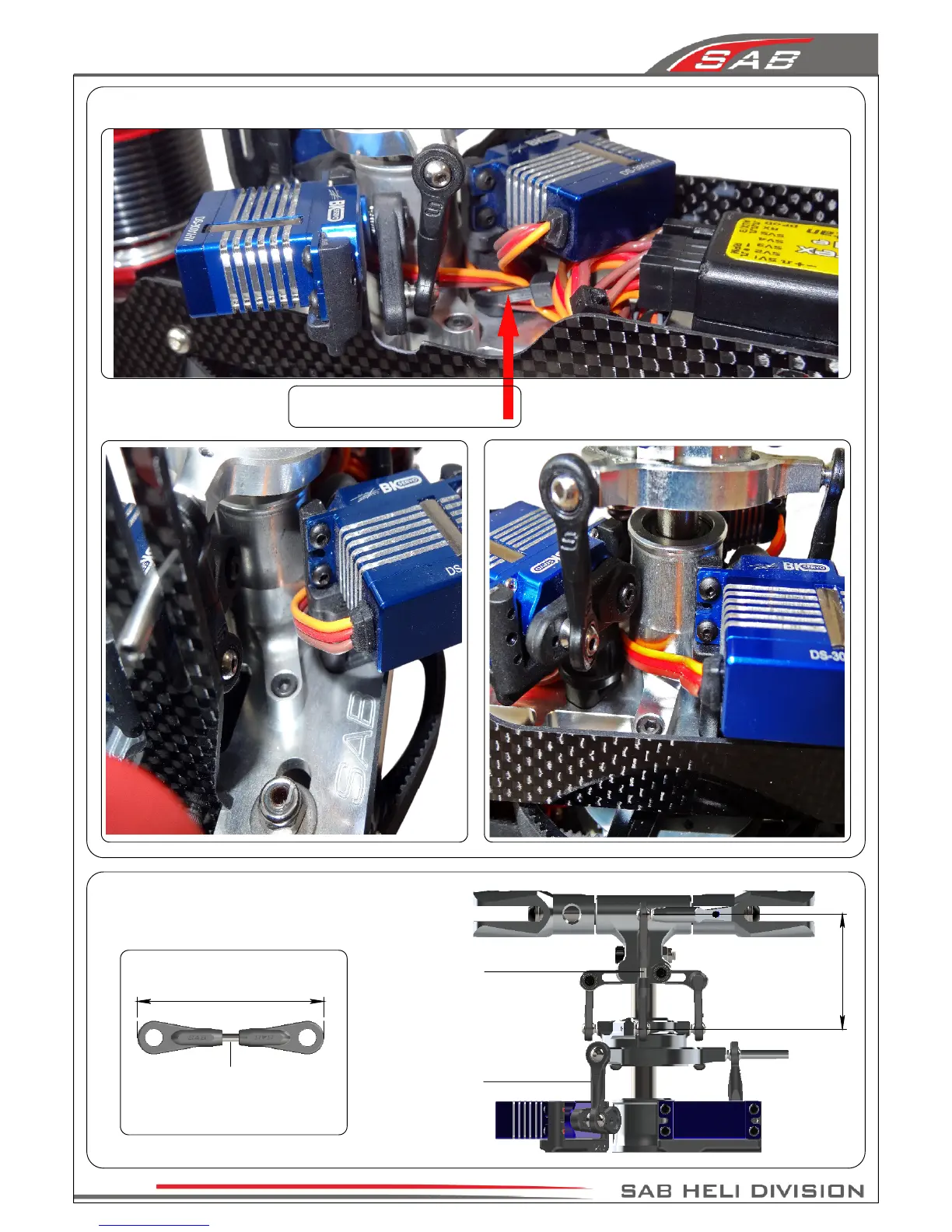

HPS Head Preliminary Setup
Tip on cable routing
Linkage Rod A
Aseembly
Linkage Rod B Assembly ... x3
Linkage Rod A Assembly ... x2
Approx
37.5mm
(to adjust the tracking,
turn this linkage.)
Linkage Rod M2x22mm
(H0561-S)
Approx 44mm
You can use zip-ties to secure the 3
servo cables to the servo support.
Page 12
Chapter 8, Installation Of Swashplate Servos
