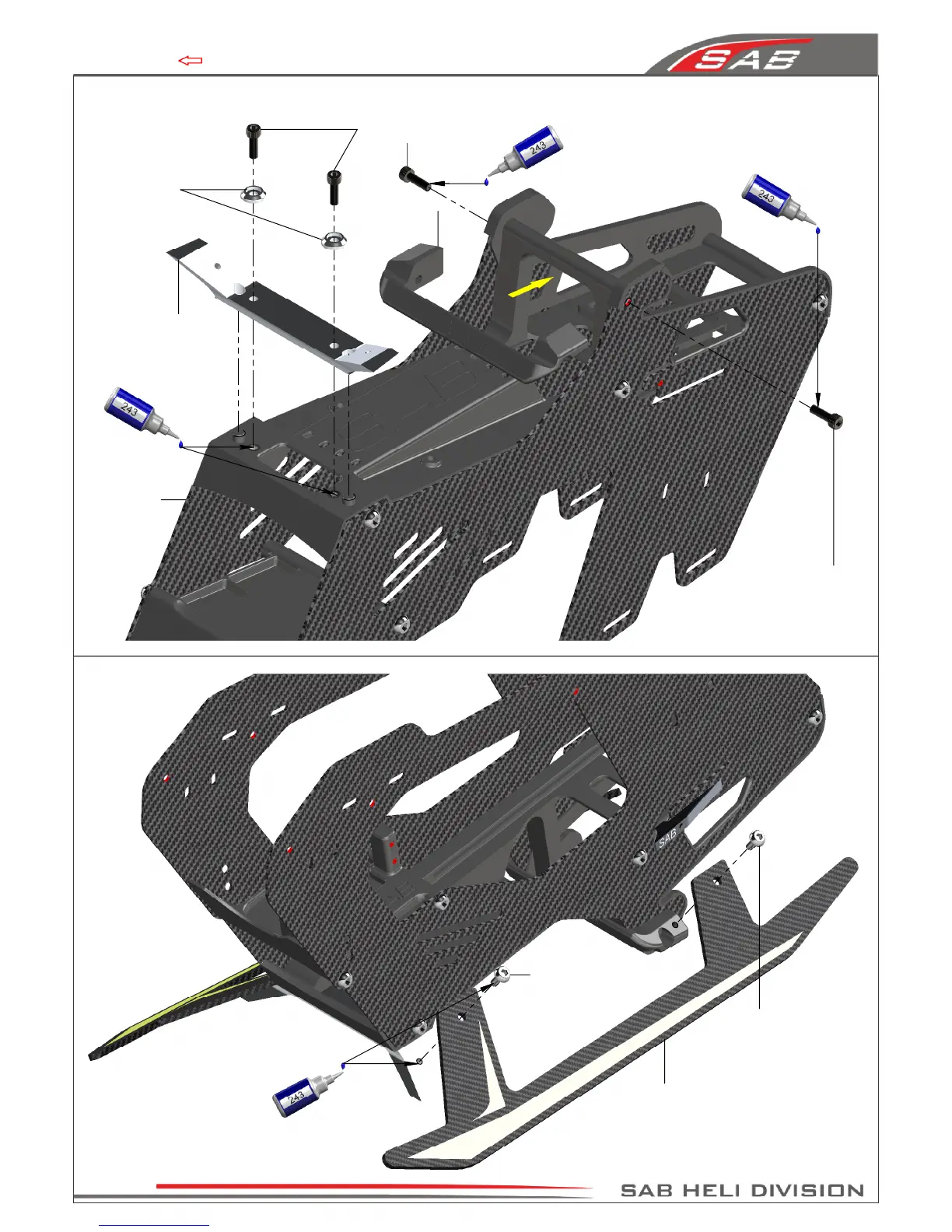

Goblin 420 - Landing Gear Assembly

Carbon Fiber
Landing Gear
(H0645-S)
Landing Gear Assembly
Bag 1, Box 1
Main Frame
Assembly
Alu Landing
gear Support
(H0644-S)
Socket Head Cap
Screw M2.5x10mm
(HC022-S)
Finishing
Washer M2.5
(H0255-S)
Plastic Landing
gear Support
(H0556-S)
Socket Head Cap
Screw M2.5x10mm
(HC022-S)
Head Cap Screws
Special M2.5x6mm
(HC019-S)
Head Cap Screws
Special M2.5x6mm
(HC019-S)
Page 6
Chapter 4, Carbon Frame
