Cylinder M2.5
(H0151-S)
Battery 6S
BATTERIES

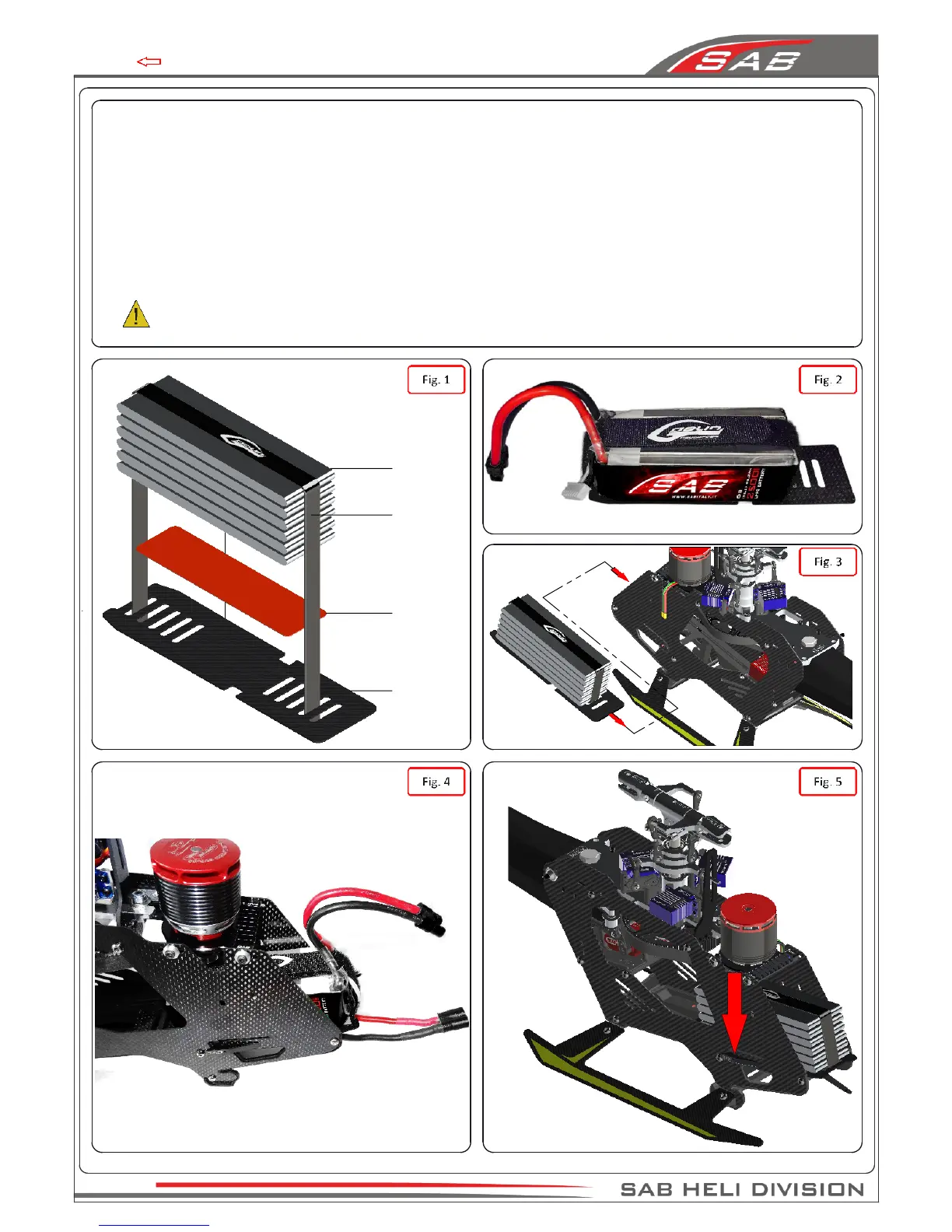

The Goblin has a quick release battery tray system.
The batteries must be installed onto the battery tray to take advantage of the quick release locking system.
Install the battery to the battery tray using double sided tape and the long Velcro straps included (Fig 1 and Fig 2).
Make sure to find the right position of the battery to optimize the center of gravity.
The battery wires arranged as in fig 2 are particularly effective.
To insert the battery, simply align the battery tray in the slots at the front of the helicopter and slide all the way. The battery
will lock in place.
To remove the battery, simply lift up on the locking lever (Fig 5) and pull.
IMPORTANT:
Make sure the battery is locked in place before flight; the battery tray must be inside the slots on both sides!
Bag 16
Double Sided
Tape
(HA035-S)
Battery Tray
Support
(H0536-S)
Battery Strap
(HA036-S)
Page 26
Chapter 15, Battery
