Button Head Cap Screw
M3x4mm
......x1
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Socket Head Cap Screw
M3x8mm
Socket Head Cap
Screw M3x8mm
(HC050-S)
Bearing
12x
24x6mm
......x3
Socket Head Cap
Screw M3x10mm
(HC056-S)
Column
(H0018-S)
Bearing
10x
19x5mm
Bearing
12x
24x6mm
Flat Head Cap Screw
M2.5x5mm
Bearing
10x
19x5mm
(HC422-S)
Note:
Socket Head Cap
Screw M3x10mm
(HC056-S)
Note:
You must be put strong main gear
(H0320-S) before you put 3 column on main
structure
Bag 2

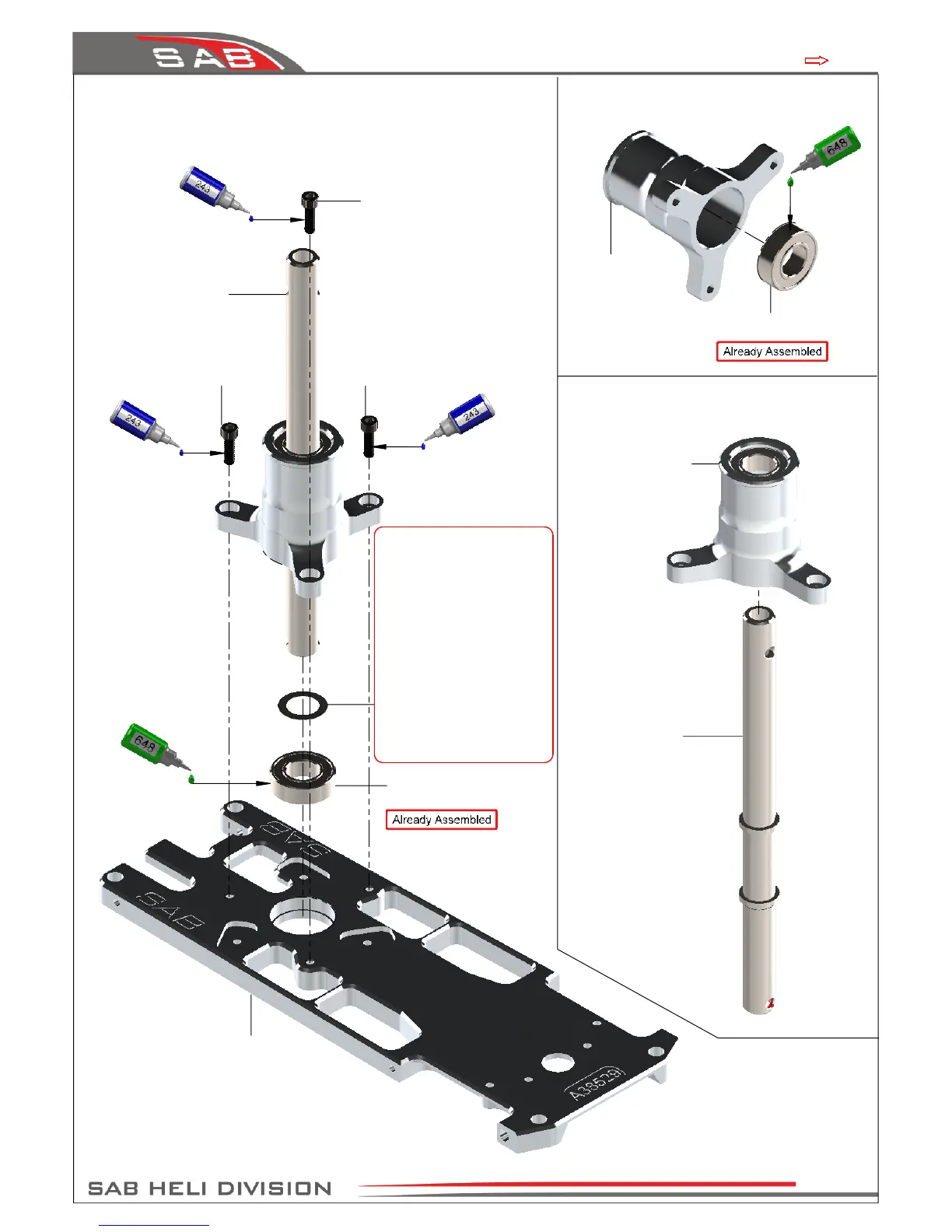

Main Shaft Support Assembly
Main Shaft Support
(H0522-S)
Bearing Ø8xØ16x5mm
(HC419-S)
Main Shaft Support
Assembly
Main Shaft
(H0507-S)
Bearing Ø8xØ16x5mm
(HC419-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Main Shaft Assembly
Main Shaft
Assembly
Main Plate
(H0519-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Shims Ø8xØ12x0,1mm
(HC462-S)
Note:
Tighten the three screw M2.5.
After tightening, check the
axial play of the main shaft. It
is possible to reduce any axial
play by adding shims.
IMPORTANT:
Very carefully
check to make sure you can
turn the main shaft freely.
If you feel too much friction,
you have used too many
shims, you can remove a shim
until the shaft turns freely.
Page 7
Chapter 5, Transmission Assembly
