Goblin 420 - Main Frame; Exploded Views

Main Frame
Main Frame
1
2
3
4
4
5
6
10
11
11
11
8
13
14
11
11
7
12
9
12
POS COD Name Specification Quantity
1 H0255 Finishing Washers M2.5 Aluminum 2
2 H0529 Plastic Battery Support Plastic 1
3 H0530 Tail Servo Support Plastic 1
4 H0531 Main Frame Carbon Fiber 2
5 H0536 Battery Tray Support Carbon Fiber 1
6 H0539 Battery Aluminum Block Aluminum 1
7 H0556 Landing Gear Support Plastic 1
8 H0644 Landing Gear Support Aluminum 1
9 H0645 CF Landing Gear Carbon Fiber 2
10 HC005 Button Head Cap Screws M2x5mm 1
11 HC019 Button Head Cap Screws M2.5x6mm 14
12 HC022 Socket Head Cap Screws M2.5x10mm 4
13 HA035 Double Sided Tape 1
14 HA036 Battery Strap 1
Page 29

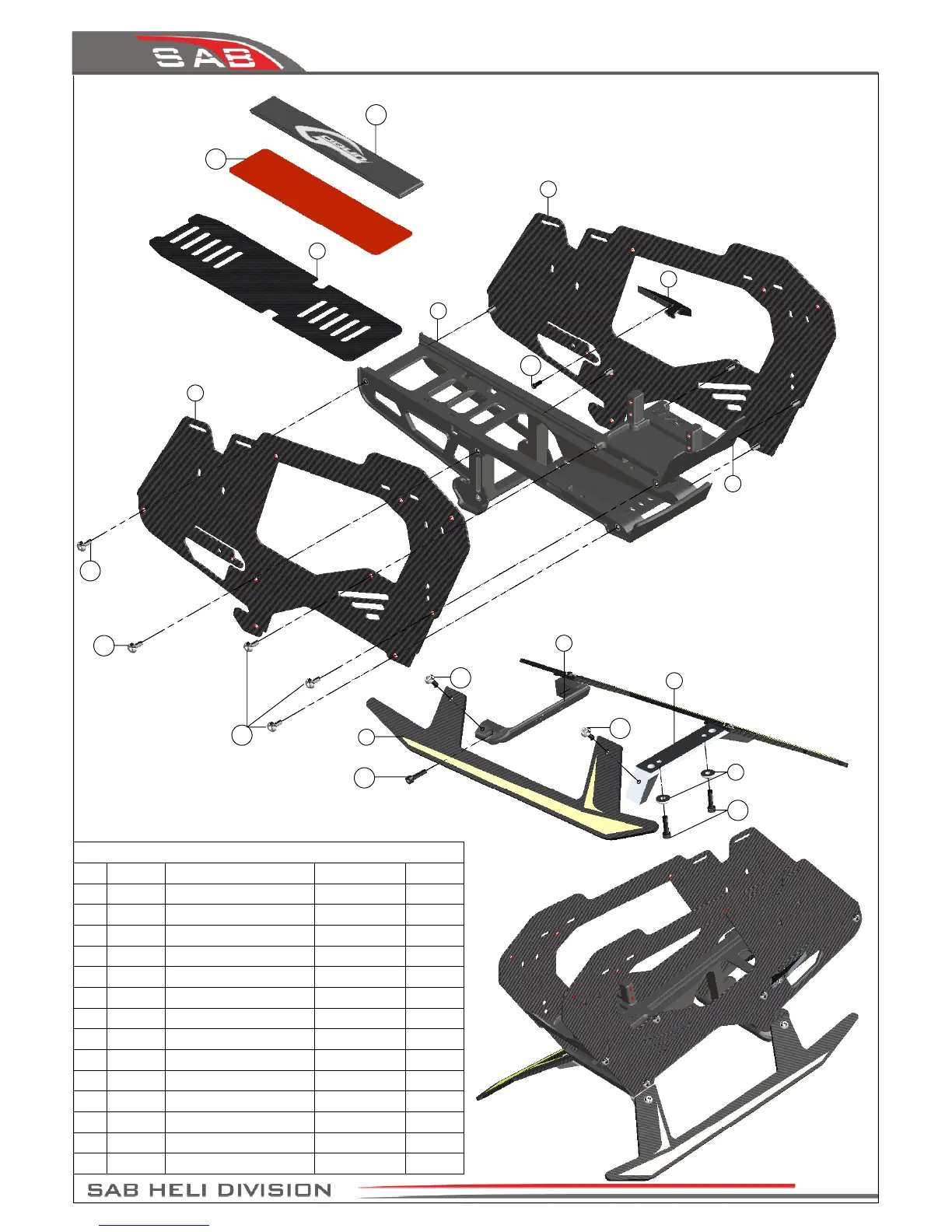

Chapter 18, Exploded view, Carbon Frame
