Goblin 420 - Boom Assembly; Installation of the Boom, Canopy

Socket Head Cap
Screw M3x6mm
(HC044-S)
Nylon Screw
M8x14mm
(HC164-S)
Finishing Washer
(H0007-S)

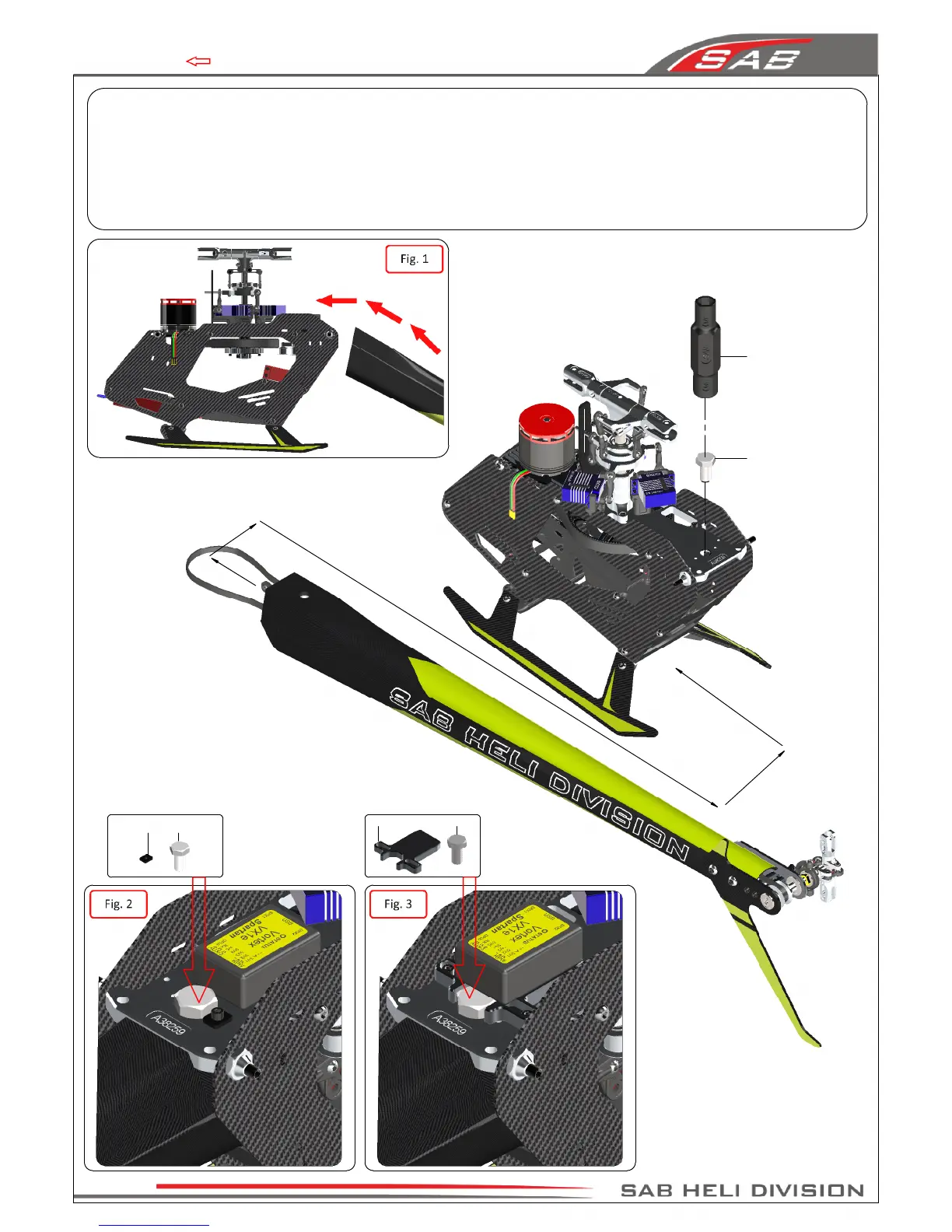

* Insert the boom. This operation is easier fitting into the main frame at a slight angle [Fig.1].
To facilitate boom insertion, you can also unscrew the two bolts that hold the tail servo support tray.
* Tighten the M8 nut with HA016 special tool supplied.
* After installation, connect the tail push rod.
* To lock the nut and prevent it from coming loose, install:
- H0287 (for FBL unit installed on the main plate) [Fig.2].
- H0564 (for FBL unit installed on H0564 ) [Fig.3].
Socket Head Cap
Screw M3x12mm
(HC062-S)
[HC164]
[HA016]
Bag 14, Box 3
NOTE:
[H0287]
[HC164] [H0564]
BOOM ASSEMBLY
[HA016]
Page 24
Chapter 14, Installation Of The Boom, Canopy
