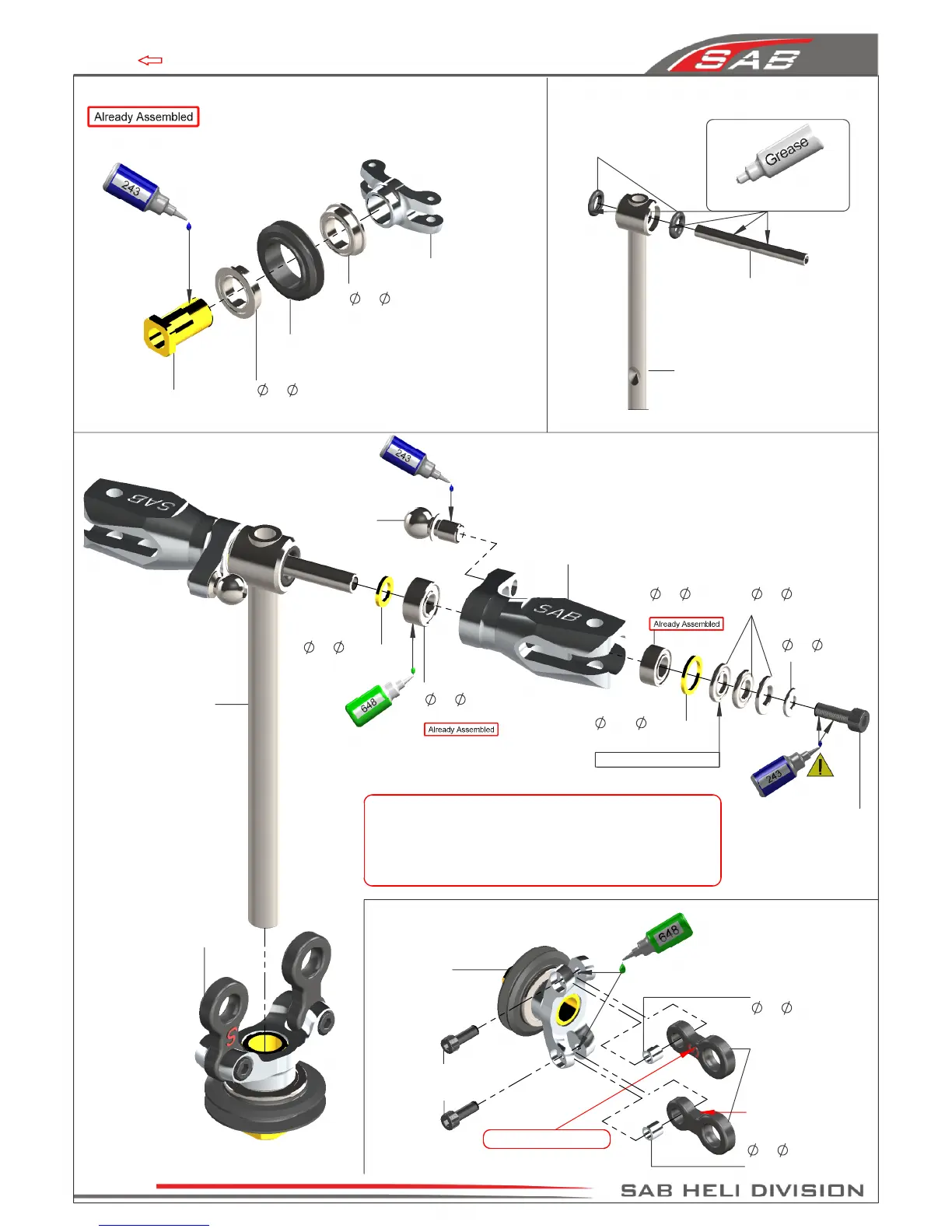

Goblin 420 - Tail Pitch Slider Assembly; Tail Rotor Hub Assembly; Tail Pitch Slider Link Assembly

Note: Larger ID inside
Tail Blade Grip
(H0511-S)
Flanged Bearing
7x 11x3mm
(HC416-S)
Tail Pitch Slider 02
[H0232]
Tail Pitch Slider 03
(H0512-S)
Tail Pitch Slider Assembly
Tail Damper
(HC452-S)
Tail Shaft
(H0509-S)
Tail Rotor Hub Assembly
Spacer
2x 4.5x0.5
(H0566-S)
Thrust Bearing
3x 6x2.5
(HC448-S)
Bearing
3x 6x2.5
(HC457-S)
Uniball M3
(H0065-S)
Washer
4.5x 5.9x0.5
(H0541-S)
Socket Head Cap
Screw M2x6mm
(HC004-S)
Spacer
2x 3x3mm
(H0076-S)
Note: S >> Left Side
Note: S >> Right Side
Note:
It is normal for the tail to feel a bit tight after initial
assembly as the tail spindle preload is usually high when
the helicopter is brand new. The preload will loosen up
after 2-5 flights allowing the system to become smooth.
Bag 10
eg: Microlube GL261
Tail Spindle
(H0510-S)
Tail Pitch Slider 01
[H0231]
Flanged Bearing
7x 11x3mm
(HC416-S)
Bearing
3x 7x3
(HC458-S)
Washer
3x 4.75x0.5
(H0540-S)
Tail Rotor Hub
Assembly
Socket Head Cap
Screw M2x6mm
(HC004-S)
Tail Pitch Slider Link Assembly
Tail Pitch Slider Link
Assembly
Tail Pitch Slider Link
(H0261-S)
Tail Pitch Slider
Assembly
Spacer
2x 3x3mm
(H0076-S)
Page 20
Chapter 13, Tail Assembly
