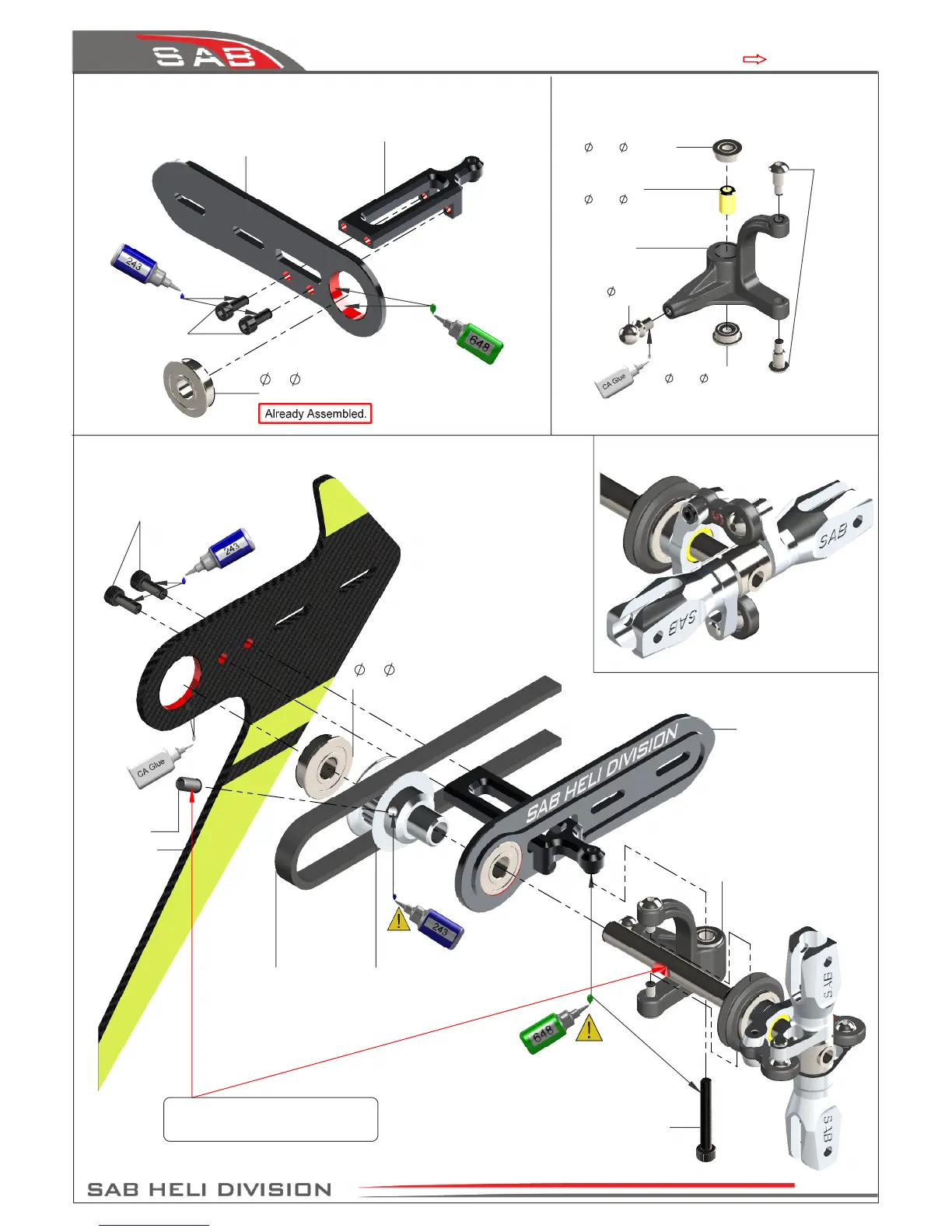

Goblin 420 - Tail Side Plate Assembly; Bell Crank Lever Assembly; Tail System Assembly

Tail Case Spacer
(H0061-S)
25T Pulley
(H0155-S)
Bell Crank Lever
Assembly
Flanged Bearing
5x 13x4mm
(HC412-S)
Socket Head Cap
Screw M2.5x6mm
(HC018-S)
Vertical Fin
(H0452-S)
Tail Side Plate Assembly
Socket Head Cap
Screw M2.5x18mm
(HC032-S)
Tail System Assembly
Belt Gates
2160-3GT-06
(HC325-S)
Set Screw
M3x6mm
(HC144-S)
Note: The set screw should align
with the hole in the tail shaft.
Flanged Bearing
6x 13x5mm
(HC414-S)
Socket Head Cap
Screw M3x22mm
(HC086-S)
Uniball M2
(H0064-S)
Bell Crank Lever
(H0406-S)
Socket Head Cap
Screw M2x5mm
(HC002-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
Washer
3x 4x0.5mm
(HC176-S)
Bell Crank Base
(H0058-S)
Bell Crank Lever Assembly
Spacer 3 x 4 x 9.6mm
[H0060]
Bell Crank Lever
Assembly
Tail Pin
(H0264-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail System HPS3
Bag 11, Box 1
Bell Crank Lever
(H0234-S)
Uniball
M3x
4 H3
(H0279-S)
Spacer Arm
2.5x 4x6.3mm
(H0253-S)
Flanged Bearing
2.5x 6x2.5mm
(HC400-S) Tail Pin
(H0264-S)
Flanged Bearing
2.5x 6x2.5mm
(HC400-S)
Bell Crank Lever Assembly
Tail Side
Alluminum Case
(H0523-S)
Cross Tail Case
(H0526-S)
Tail Side Plate
Assembly
Bell Crank Lever
Assembly
Flanged Bearing
5x 13x4mm
(HC412-S)
Socket Head Cap
Screw M2.5x6mm
(HC018-S)
20T Tail Pulley
(H0504-S)
Belt 1250-HTD-2
(HC464-S)
Vertical Fin
(H0532-S)
Tail System Assembly
[HC144-S]
[H0509-S] [H0505-S]
Page 21
Chapter 13, Tail Assembly
