100 mm
Figure 4:
Shows the suggested length of the battery wire. This length is also compatible with the quick battery connector upgrade.
Figure 5
: Shows the wire that connects the ESC to the receiver or flybarless control system.
DE-BURR THE SIDE FRAMES
We recommend de-burring the edges of the carbon parts in areas where electrical wires run.(See Page 4).

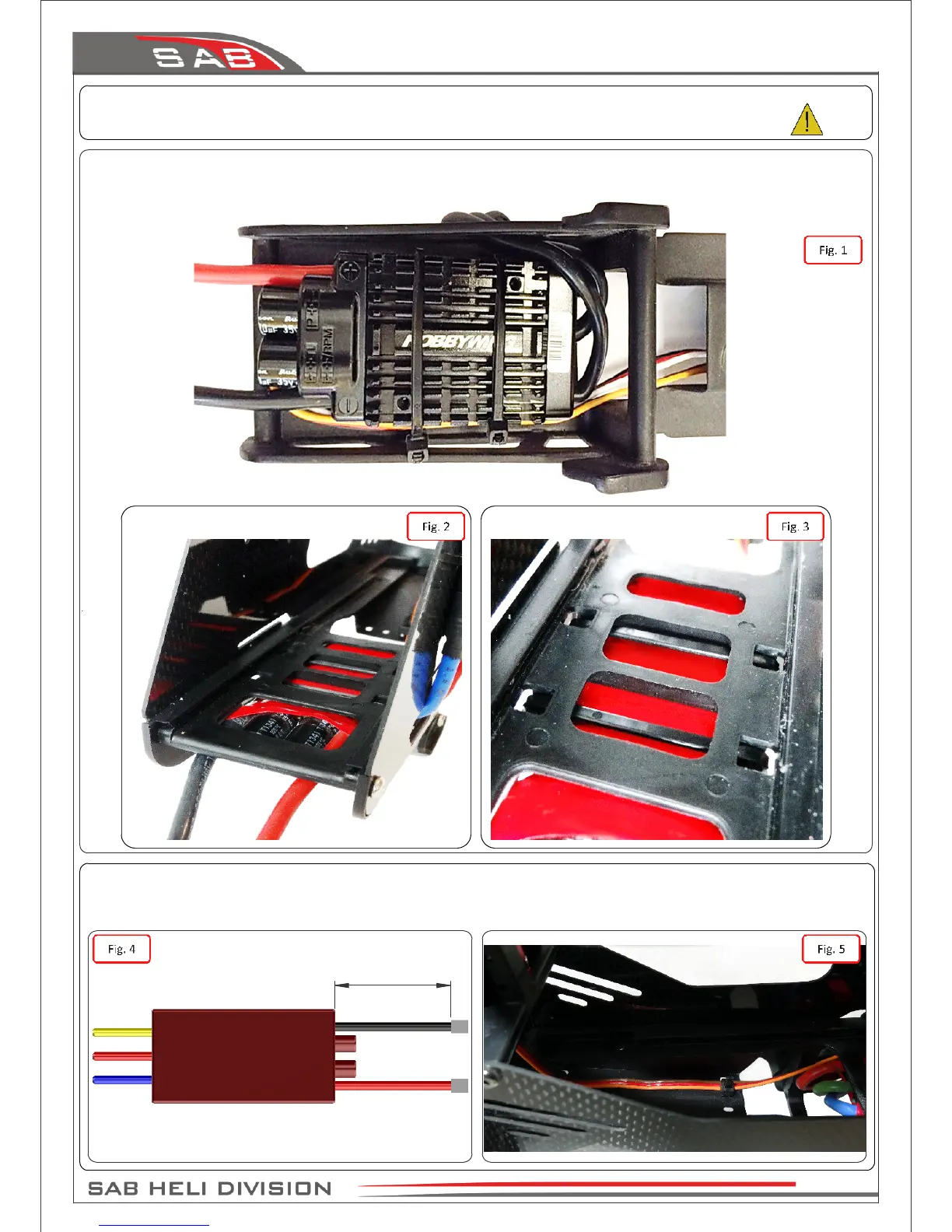

ESC INSTALLATION
The speed controller (ESC) is installed in the front of the helicopter.
Figure 1 shows the mounting area. Figure 2 shows the installation of the Kosmik ESC from Kontronik.
You can also use the heat sink (H0165-S) if you wish for improved cooling (Figure 3,4)
Figure 1:
Figure 2:
Figure 3:
Figure 4:
ESC INSTALLATION
The speed controller (ESC) is installed in the front of the helicopter.
Figure 1
and
Figure 2
show the mounting area.
Figure 3:
Shows the correct use of the Zip-Ties
Page 17
Chapter 11, Installation Of The ESC
