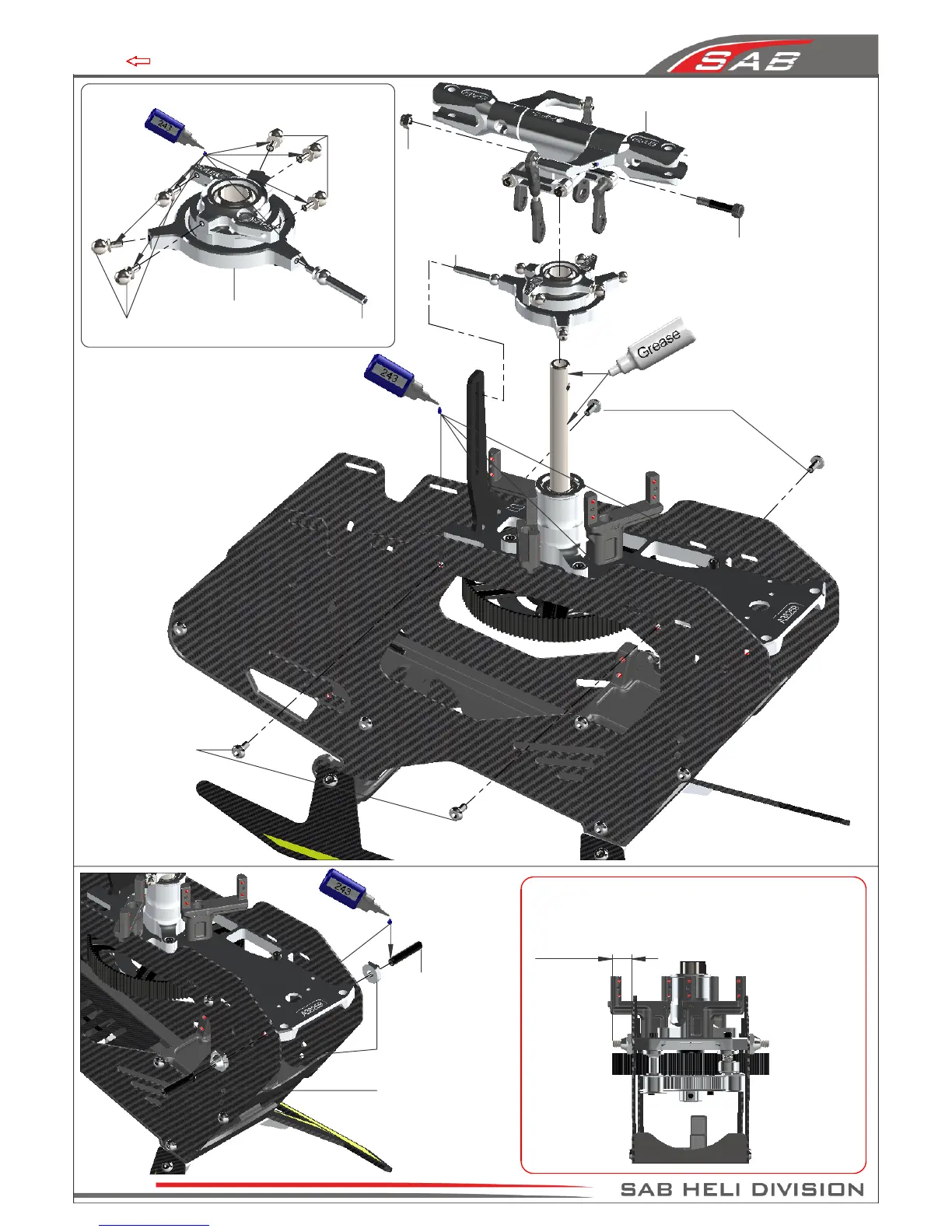

Goblin 420 - Swashplate Assemly

12mm
Socket Head Cap
Shouldered M3x16mm
(HC074-S)
Swashplate
Assembly
Button Head Cap
Special M2.5x6mm
(HC019-S)
Head Assembly
Bag 5
Metric Hex
Nylon Nuts M3
(HC206-S)
Cup Point Set
Screws M4x20mm
(HC155-S)
NOTE:
Keep the distance between the end of the canopy
retainer H0542 and the frame at approximately 12mm.
Canopy Knob
(H0543-S)
Button Head Cap
Special M2.5x6mm
(HC019-S)
Uniball M2
(H0538-S)
Swashplate Assemly
Uniball M2
(H0537-S)
Uniball M2
(H0538-S)
Swashplate
Assemly
(H0506-S)
Canopy Positioner
(H0542-S)
Cup Point Set
Screws M4x20mm
(HC155-S)
Page 10
Chapter 7, Assembling The Modules
