CANOPY
Fit the canopy to the main frame until it stops. [Fig. 2]
Fit the canopy holes to the M4 set screws on the model.
Check alignment of the edge on the boom [Fig. 3]
If the alignment is correct, enlarge the 2 canopy holes with a reamer up to 10 mm in diameter.
If alignment is not OK, enlarge the 2 canopy holes in the appropriate direction up to 10 mm in diameter.
Install the canopy grommets. [Fig. 4]
The canopy can be locked using the knobs H0543. [Fig. 5]
NOTE:
If you want to use the rubber edge protector, you must increase the size of the opening
in the canopy that goes around the anti-rotation guide by approximately 2 mm per side.
CANOPY

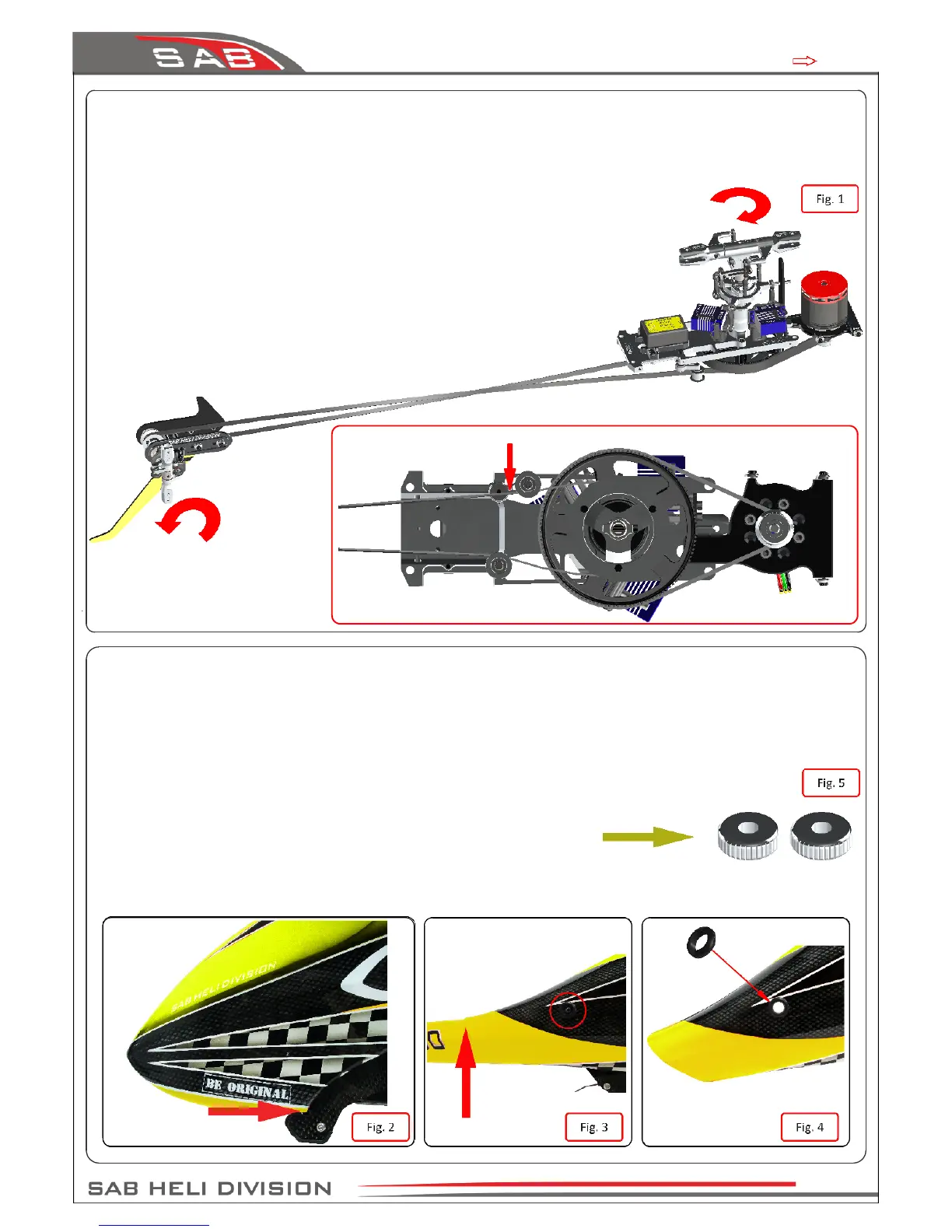

TAIL BELT TENSION
*Check for the proper assembly of the tail boom.
*Loosen the tail case by loosening the 4 M2.5 screws.
*Install the belt onto the front pulley in the correct direction of rotation (figure 1).
*Rotate the tail drive several times by hand.
*Pull the tail case back to increase belt tension.
*Tighten the 4 M2.5 screws on the tail case.
*The belt must be very tight.
Bag 15
NOTE: Move the tail case and tighten the belt until the tensioner is in this position.
Page 25
Chapter 14, Installation Of The Boom, Canopy
