Goblin 420 - Page 32

4
7
9
9
9
10
20
20
20
20
23
23
32
32
35
11
12
13
14
15
16
21
21
23
29
29
30
30
TRANMISSION ASSEMBLY
TRANMISSION ASSEMBLY
20
2
3
17
5
6
8
19
22
24
24
25
26
27
28
26
31
31
33
34
1
1
1
Belt Tensioner
18
POS COD Name Specification
Quantity
20 HC020 Socket Head Cap Screws M2.5x8mm 8
21 HC022 Socket Head Cap Screws M2.5x10mm 3
22 HC031
Head Cap Screws Shouldered
M2.5x15mm 1
23 HC032 Socket Head Cap Screws M2.5x18mm 4
24 HC132 Flat Head Cap Screws M3x5mm 4
25 HC144 Cone Point Set Screws M3x6mm 1
26 HC153 Cone Point Set Screws M4x12mm 1
27 HC184 Washers ø4.3 x ø11x1mm 1
28 HC212 Metrix Nylon Nut M4 1
29 HC400 Flanged Bearing ø2.5 x ø6x2.5mm 4
30 HC402 Flanged Bearing ø3 x ø7x3mm 2
31 HC418 Flanged Bearing ø8 x ø12x3.5mm 1
32 HC419 Bearing ø8 x ø16x5mm 2
33 HC440 One Way Bearing ø8 x ø12x12mm 2
34 HC454 Motor Belt 304-2GT-09 1
35 HC462 Shim Washers ø8 x ø12x0.2mm 2
POS COD Name Specification Quantity
1 H0255 Finishing Washer M2.5 Aluminum 3
2 H0501 20T Motor Pulley ASM Aluminum 1
3 H0502 120T Main Pulley Aluminum 1
4 H0507 Main Shaft Steel 1
5 H0519 Main Plate Aluminum 1
6 H0520 Motor Support Aluminum 1
7 H0522 Main Shaft Support Steel 1
8 H0533 CF Anti-Rotation Guide Carbon Fiber 1
9 H0548 Plastic Servo Support Plastic 3
10 H0564 Flybarless Support Aluminum 1
11 H0575 Tail Belt Idler Aluminum 2
12 H0576 Tail Belt Tensioner Arm Aluminum 1
13 H0577 Column Belt Tensioner Aluminum 1
14 H0578
Column Belt Tensioner Axial
Aluminum 1
15 H0579 Spring Steel 1
16 H0580 Block Tensioner Aluminum 1
17 H0620 Fonrt Tail Pulley ASM Aluminum 1
18 HC008 Socket Head Cap Screws M2x8mm 3
19 HC018 Socket Head Cap Screws M2.5x6mm 2
Page 30

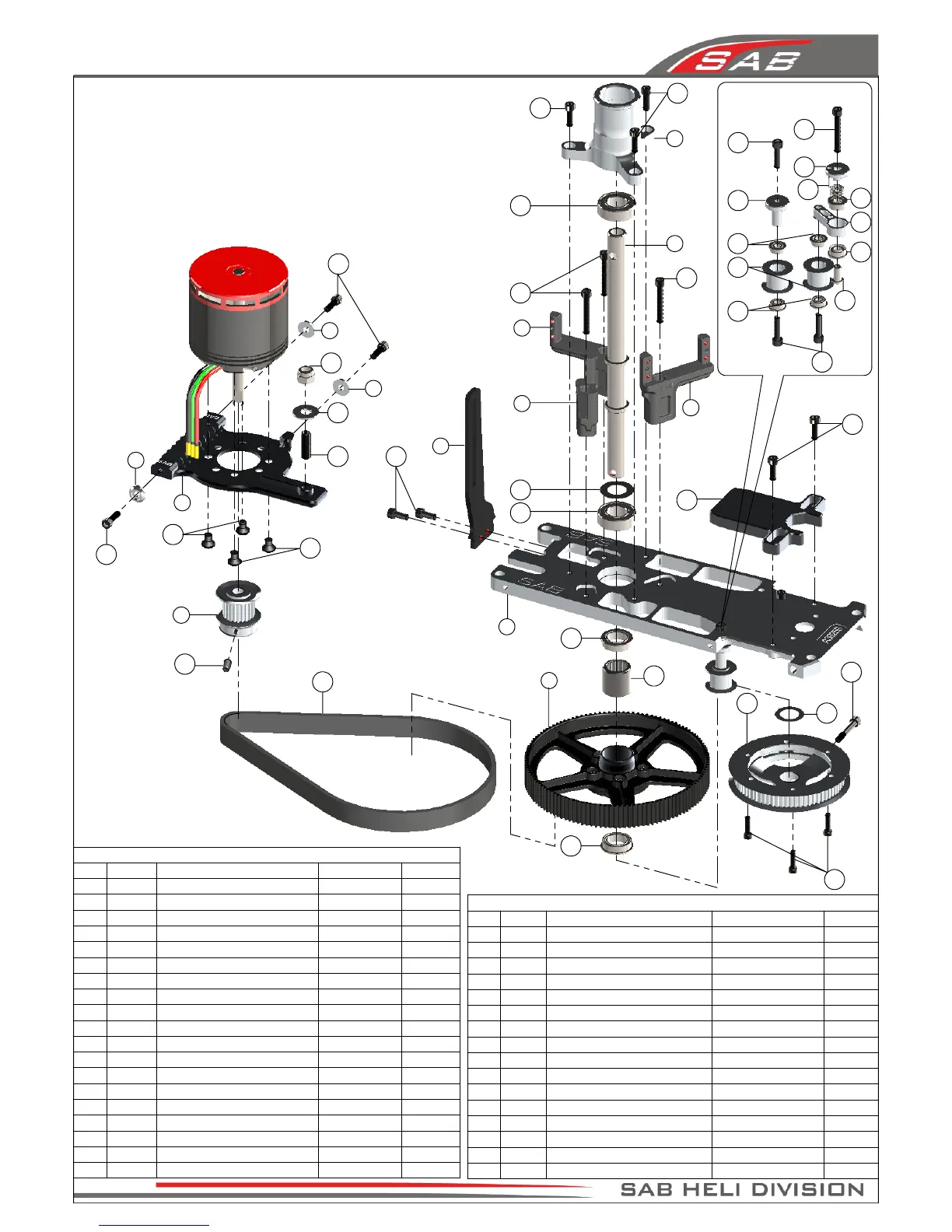

Chapter 18, Exploded view, Transmission Assembly
