Goblin 420 - Page 33

Assembly Set
HEAD SYSTEM
HEAD SYSTEM

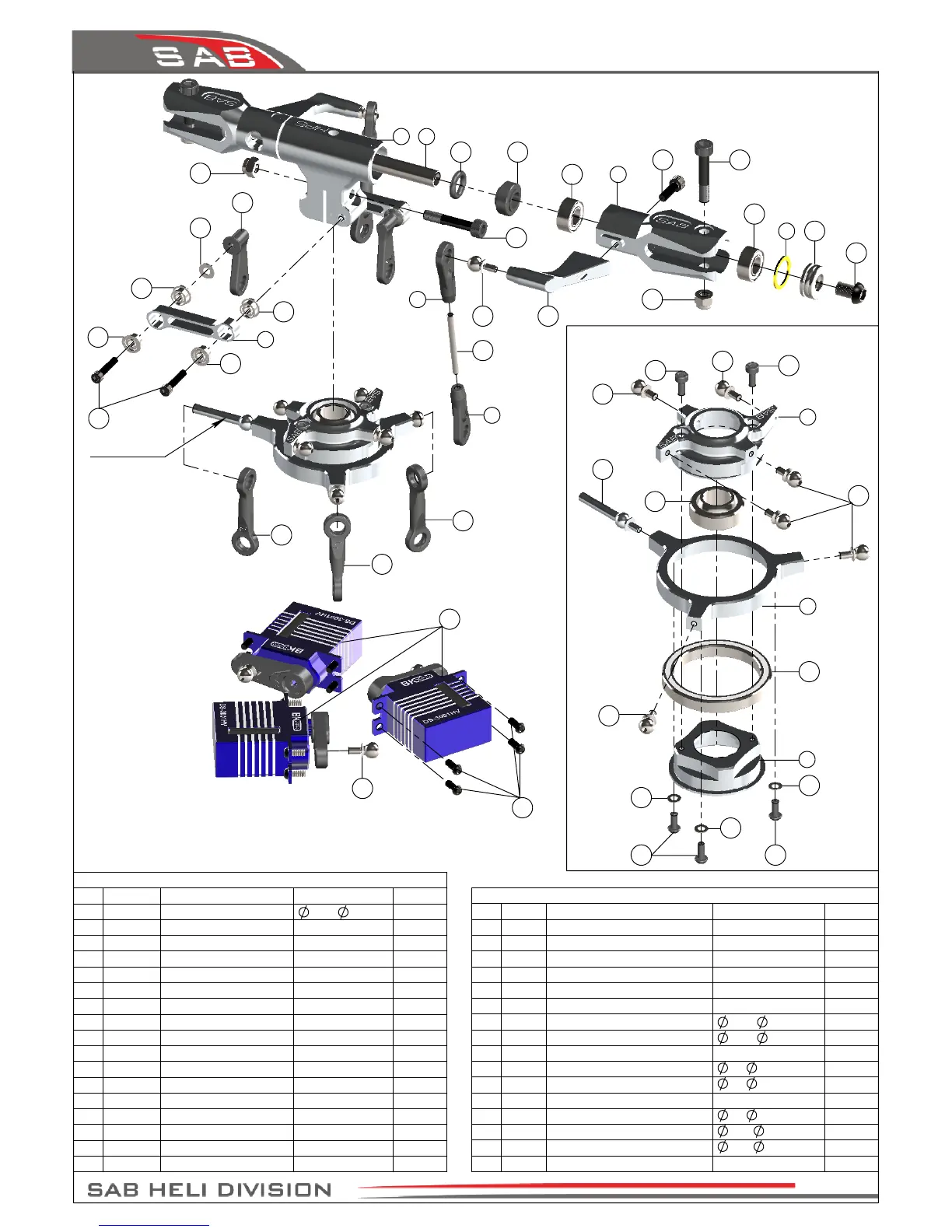

Assembly Set Explode
1
2
2
3
4
5
6
7
8
12
12
12
10
11
9
13
14
15
15
15
15
15
15
16
17
17 17
19
20
21
23
24
25
25
25
26
27
27
28
29
30
30
30
30
31
32
33
22
26
18
18
POS
COD
Name Specification
Quantity
1
H0349
Washer 7,5x 10x0,5 2
2
H0403
Plastic Linkage Ball M2 4
3
H0506-01
Swashplate 01 Aluminum 1
4
H0506-02
Swashplate 02 Aluminum 1
5
H0506-03
Swashplate 03 Aluminum 1
6
H0508
Main Spindle Steel 1
7
H0513
Main Blade Grip Aluminum 2
8
H0514
Main HUB Aluminum 1
9
H0516
Swashplate Arm Aluminum 2
10
H0517
Main Blade Grip Arm Aluminum 2
11
H0518
Damper Plastic 2
12
H0524
Linkage Servos Plastic 3
13
H0525
Radius Plastic Arm Plastic 2
14
H0537
Uniball M2 Female Aluminum 1
15
H0538
Uniball M2 Male Steel 11
16
H0561
Linkage M2x22mm 2
17 HC005
Button Head Cap Screw
M2x5mm 15
POS COD Name Specification
Quantity
18 HC008 Socket Head Cap Screws M2 x 8mm 2
19 HC010 Socket Head Cap Screws M2 x 10mm 4
20 HC020 Socket Head Cap Screws M2.5 x 8mm 2
21 HC074 Head Cap Screws Shoulder M3 x 16mm 1
22 HC079 Head Cap Screws Shoulder M3 x 18mm 2
23 HC096 Button Head Cap Screws M4 x 6mm 2
24 HC170 Washers
2.1x 5 x 0.5 2
25 HC172 Washers
2.2x 4x0.3 3
26 HC206 Metric Hex Nylon Nuts M3 3
27 HC411
Bearing 5x 10x4 4
28 HC435 Thrust Bearing
5x 10x4 2
29 HC453 Oring DI=6,75, S=1,78 2
30 HC456 Flanged Bearing
2x 5x2.5 8
31 HC459 Rad Bearing
25x 32x4 1
32 HC460 Spherical Bearing
12x 22x7 1
33 DS-3001HV BK Servo 3
Page 31
Chapter 18, Exploded view, Head System
