POS COD Name Specification
Quantity
1 H0065 Uniball M3 ø5 H6 2
2 H0066 Plastic Ball Link M2,5 2
3 H0076 Grip Link Bushing Brass 2
4 H0231 Tail Pitch Slider 01 Aluminum 1
5 H0232 Tail Pitch Slider 02 Aluminum 1
6 H0234 Bell Crank Lever Plastic 1
7 H0253 Spacer Arm ø2.5ø4x6.3 1
8 H0261 Tail Pitch Slider Link Plastic 2
9 H0264 Tail Pin Steel 2
10 H0279 Uniball M3 ø5 H11.5 1
11 H0504 20T Tail Pulley Aluminum 1
12 H0509 Tail Shaft Steel 1
13 H0510 Tail Spindle Steel 1
14 H0511 Tail Blade Grip Aluminum 2
15 H0512 Tail Slider Aluminum 1
16 H0515 Tail Hub Steel 1
17 H0523 Tail Side Plate Aluminum 1
18 H0526 Cros Tail Case Aluminum 1
19 H0532 Vertical Fin Carbon Fiber 1
20 H0534 CF Nut M8 Block Carbon Fiber 1
21 H0535 Locking Element Tail Carbon Fiber 2
22 H0540 Washer ø3ø4.75x0.5 2
23 H0541 Washer ø4.5ø5.9x0.5 2
24 H0566 Washer ø2ø4.5x0.5 2
25 H0567 Tail Damper Derlin 2
POS COD Name Specification
Quantity
26 H0815 Yellow Tail Boom Carbon Fiber 1
27 HC004 Socket Head Cap Screws M2 x 6mm 4
28 HC018 Socket Head Cap Screws M2.5 x 6mm 4
29 HC026 Socket Head Cap Screws M2.5 x 12mm 2
30 HC032 Socket Head Cap Screws M2.5 x 18mm 1
31 HC144 Cone Point Set Screws M3 x 6mm 1
32 HC164 Nylon Screws M8 x 14mm 1
33 HC200 Nylon Nut M2.5 6
34 HC224 Nylon Nut M8 1
35 HC242 Threaded Rod M2.5x40mm 2
36 HC400 Bearing ø2.5ø6x2.5 2
37 HC412 Flanged Bearing ø5ø13x4 2
38 HC416 Flanged Bearing ø7ø11x2.5 2
39 HC448 Thrust Bearing ø3ø6x2.5 2
40 HC457 Bearing ø3ø6x2.5 2
41 HC458 Bearing ø3ø7x3 2
42 HC464 Tail Belt 1250mm 1
43 HC465 Carbon Rod ø4xø2.5x473mm 1
44 HA033 Double Sided Tape 2
45 HA034 Double Sided Tape 1
Page 32

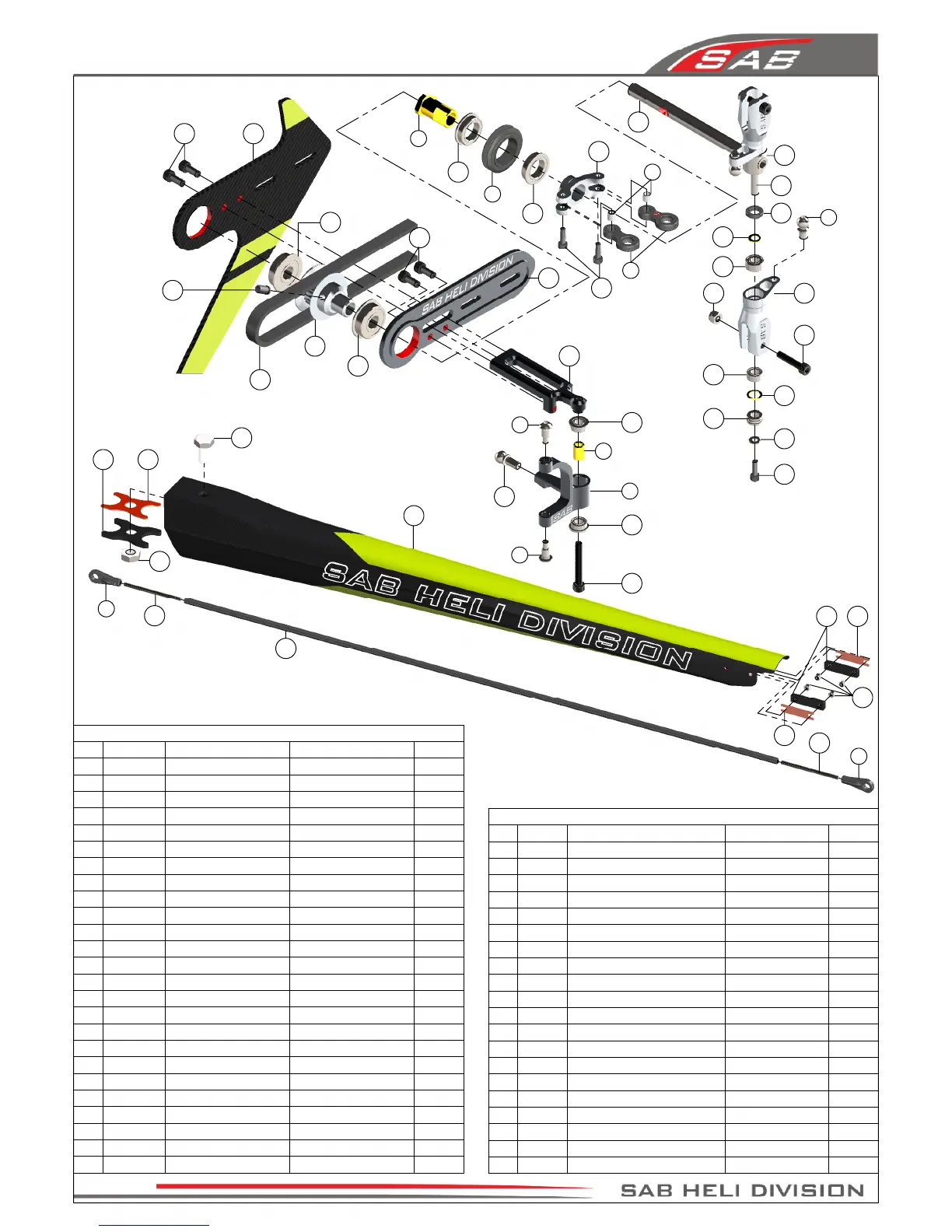

Chapter 18, Exploded view, Tail System
