Gocycle
®
Owner’s Manual Version August 2015
© Karbon Kinetics Limited. All Rights Reserved. 11

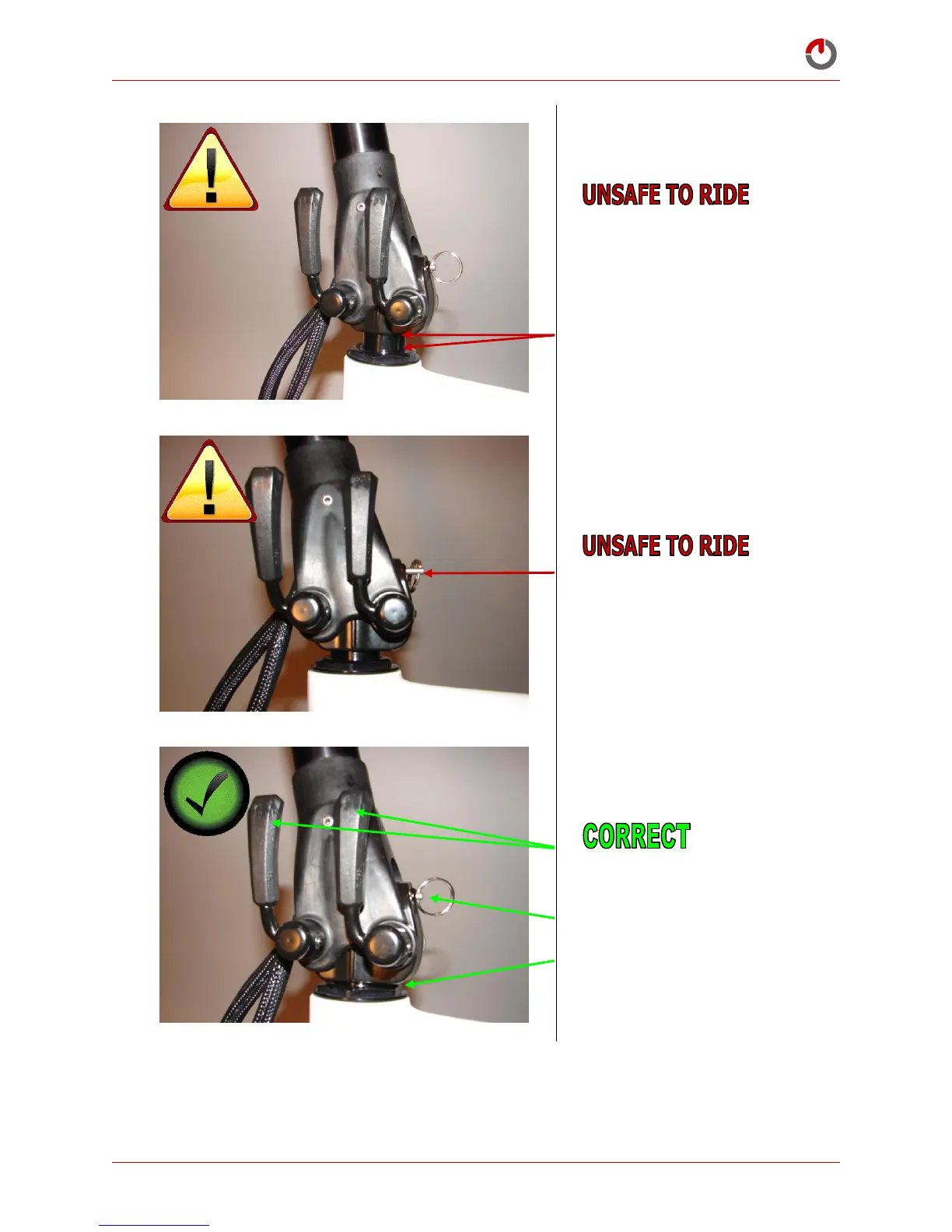

Figure 5-8
There is more than 1mm gap
between the stem adjuster
and the headset collar. This
means that the lock pin has
not engaged into the hole in
the steerer.
Figure 5-9
Notice that the lock pin has
not engaged in the steerer.
Figure 5-10: Pre-Ride Checklist #17-b
Quick-release levers closed.
Lock pin fully engaged.
Less than 1mm gap.
