9.10 Adjusting the PitstopWheel
9.10.1 General Adjustment
All three Pitstopwheel quick release cam levers should have equal resistance when closing or opening. As per the
pre-ride checks there must be a maximum of 10mm free play measured at the tip of the cam lever when open. In
the event that the levers have different closing/ opening resistance or free play in excess of 10mm you must adjust
the cam levers before riding.
Adjusting the Pitstopwheel cam levers is an important task throughout the lifetime of the product. Cam levers will
settle after initial use and prolonged use will cause wear. As such the cam levers require vigilant attention and
adjustment including checking every cam as part of the pre ride checks.

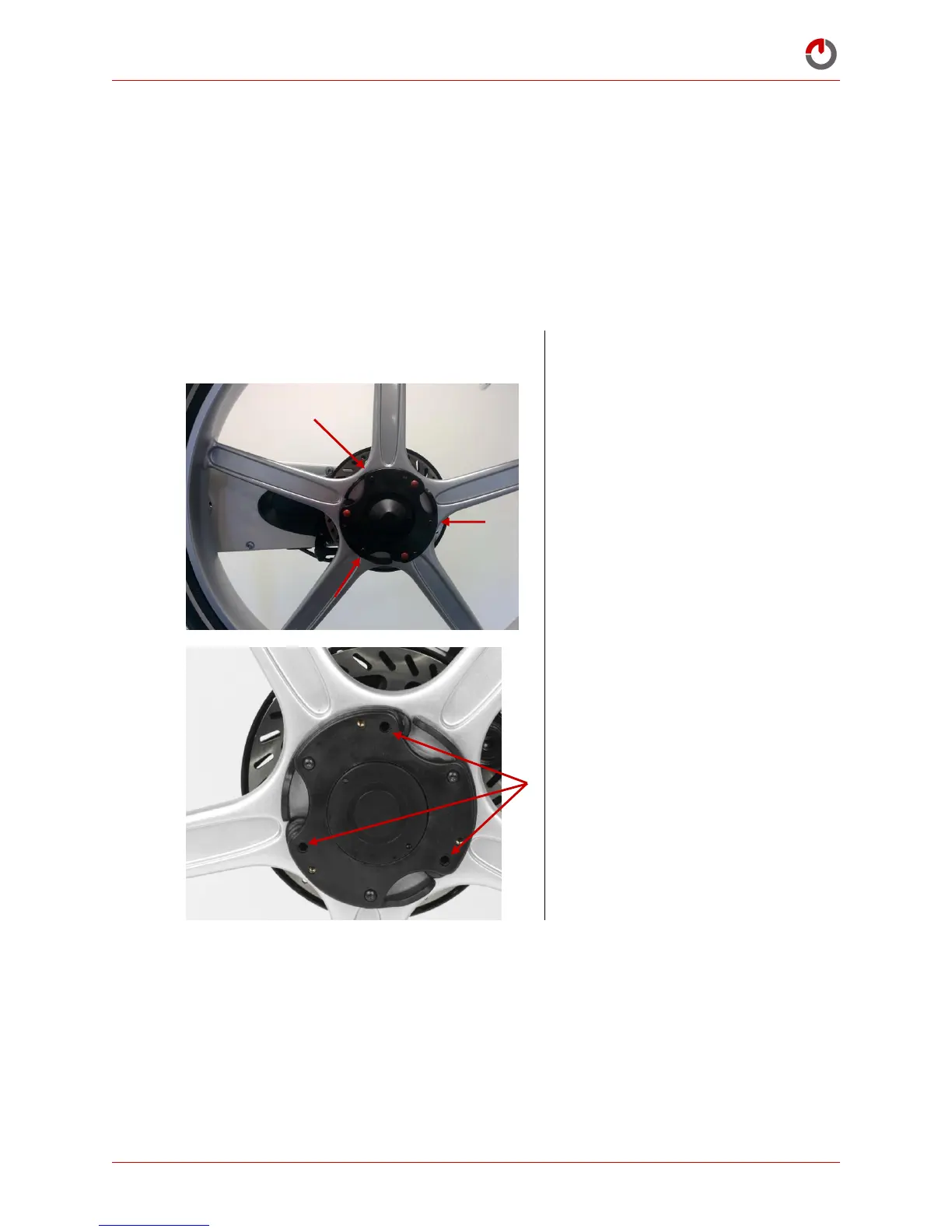

1. Locate the Pitstopwheel
securely onto the hub and
close all three cam levers. Take
note of any differing
engagement points and closing
resistance.
2. Remove the red rubber
grommets from the cam
adjuster studs. This allows
access to adjust the cam lever
with a 4mm Allen key.
