3
1
6259-10 6259-20
25
42
oud
plafondsteun 6235-20 wordt op de rail gedraaid
en daarna geborgd
Deze niet
23
24
54
plafondmontage met spanner 6250
blindmontage aan het plafond met steun 6235-80
83
plafondmontage met plafondsteun 6235
42
min. 32
min. 22
105
1470-36-24
63
plafondmontage van
6200 met pendel 6255
40
wandmontage met wandsteun 6251
wandmontage met inkortbare afstandsteun 6017
31
plafondmontage van
6200 met G-poot 6264
met messing pluggen
70 - 150
25
6259-10 6259-20
25
42
oud
plafondsteun 6235-20 wordt op de rail gedraaid
en daarna geborgd
Deze niet
23
24
54
plafondmontage met spanner 6250
blindmontage aan het plafond met steun 6235-80
83
plafondmontage met plafondsteun 6235
42
min. 32
min. 22
105
1470-36-24
63
plafondmontage van
6200 met pendel 6255
40
wandmontage met wandsteun 6251
wandmontage met inkortbare afstandsteun 6017
31
plafondmontage van
6200 met G-poot 6264
met messing pluggen
70 - 150
25
English
Fixing

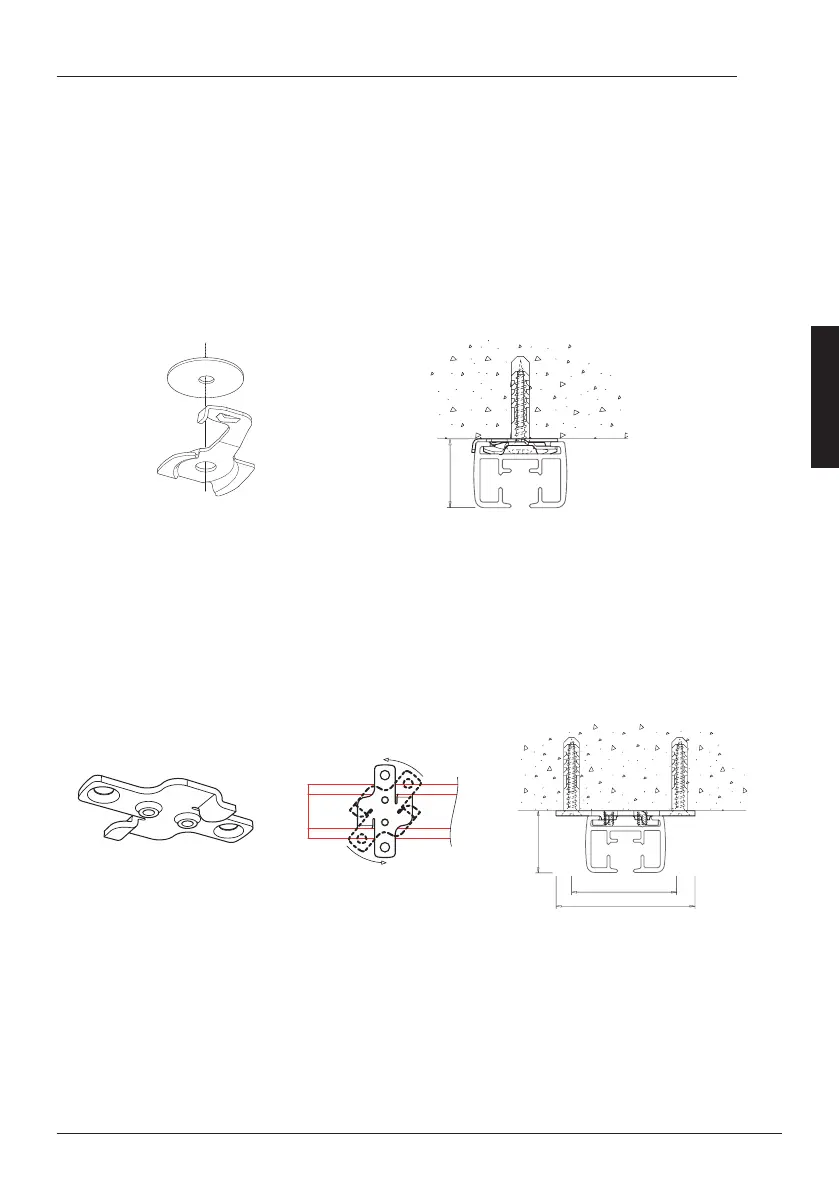

Ceiling xing with clamp 6050
Ceiling clamps 6050 are suitable for a maximum total curtain weight of 25 kg, (<10 kg/
bracket), otherwise it is advised use 6055-1000 ceiling supports. Fasten each clamp with
a pan head screw.
First and last clamp should be xed at least 11 cm from the end wall to allow for the pulley
and curtain fabric around the pulley. The xing point of the rst clamp should be at least
3,5 cm from the parallel wall, this allows the clamp to rotate. This is a minimum value:
apply more than 3,5cm to allow the curtain fabric to move freely from the parallel wall.
Generally, the clamps are placed every 60 - 80 cm. For heavier curtains (with lining mate-
rial or blackout fabric), place an additional clamp on each side where a curtain stack is
planned. The 6050 clamp is not suitable to re-align twisting (distortion) in the rail.
Ceiling xing with supports 6055-1000
This support is suitable for a total curtain weight of 100 kg (max. 30 kg per bracket). The sup-
ports should be placed every 60-80 cm. For heavier curtains (with lining material or blackout
fabric), place an extra support on each position (end) where the curtain stacks. Fasten each
support with two (countersunk) screws (4,2 cm centre to centre distance). This bracket is
suitable to re-align twisting (distortion) in the rail.
