User Manual V1.5-2021-01-21 02 Installation Instructions

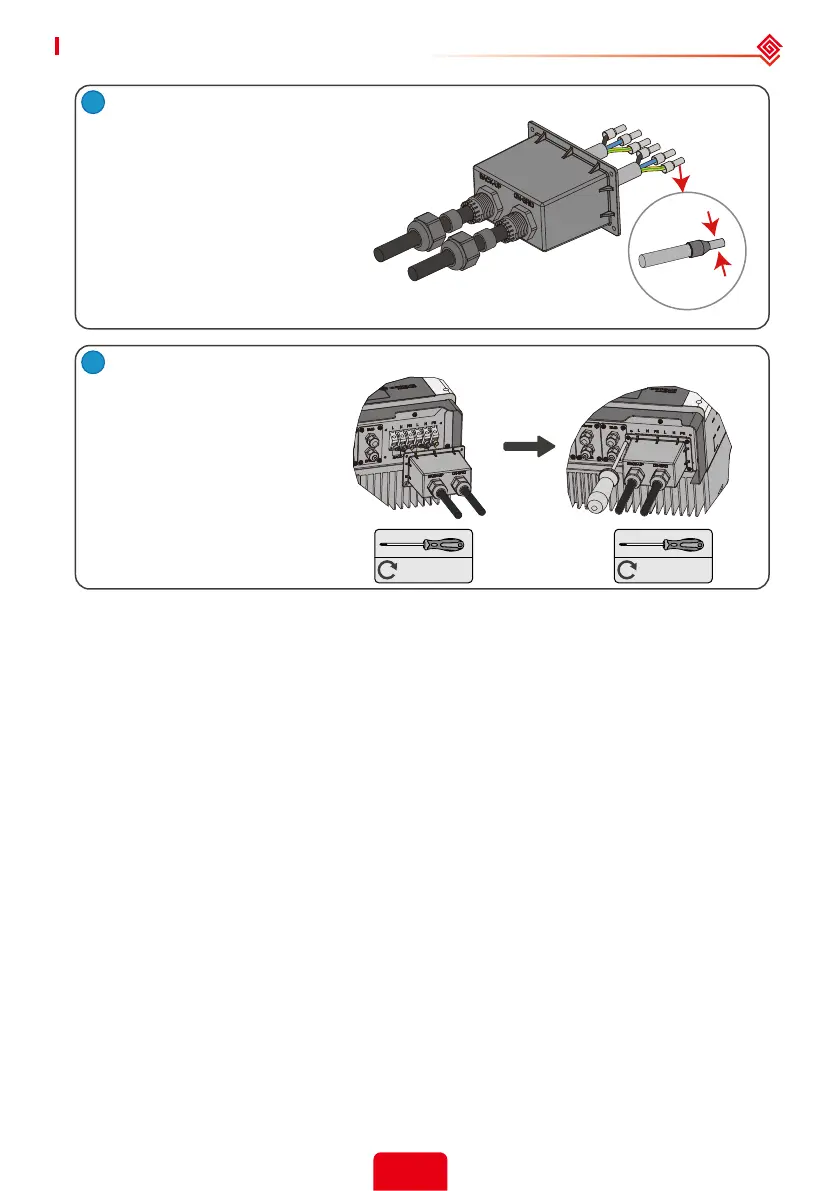

Press the six connectors on cable conductor
core tightly.
Note: Make sure cable jacket is not
locked within the connector.
1. Connect the assembled AC
terminals onto the inverter.
Note: Make sure it is not connected
to a wrong side.
2. Lock the cover and screw the
cap on.
Declaration for back-up function
The below statement lays out manufacturer's general policies governing the energy storage
inverters of the series ES, EM, SBP, ET, EH and BH.
• For Hybrid inverters (Series ES, EM, EH and ET), the standard PV installation typically consists
of the connection of the inverter with both panels and batteries. In the case where the systems
are not connected to the batteries, the back-up function is strongly not advised for use. GoodWe
shall not cover the standard warranty and be liable for any consequences arising from users not
following this instruction.
• Under normal circumstances, the back-up switching time is less than 10 ms (the minimal
condition to be considered as the UPS level). However, some external factors may cause the
system to fail on Back-Up mode. As such, we recommend the users to be aware of conditions
and follow the instructions as below:
1. Do not connect loads if they are dependent on a stable energy supply for a reliable operation.
2. Do not connect the loads which may in total exceed the maximum back-up capacity.
3. Try to avoid those loads which may create very high start-up current surges such as Inverter
Air-conditioner, high-power pump etc.
4. Due to the condition of battery itself, battery current might be limited by some factors
including but not limited to the temperature, weather etc.
Declartion for back-up loads
GoodWe S-BP inverter is able to supply a continuous 5000VA output(max 5500VA within 10s)
on Back-Up side. And the inverter will shutdown when it is full loading with high ambient
temperature if grid is absent.
• Accepted Back-Up loads: television, computer, fridge, fan, illumination lamps, microwave oven,
electrical rice cooker and router etc.
• Unacceptable house loads for Back-Up side: air conditioner, water pump, heaters, washing
machine, electromagnetic oven, compression engine, hair drier and dust cleaner etc. with high
power and other loads with high inrush current at start-up.
1.6N·m
2~2.5N·m
To Next Page
